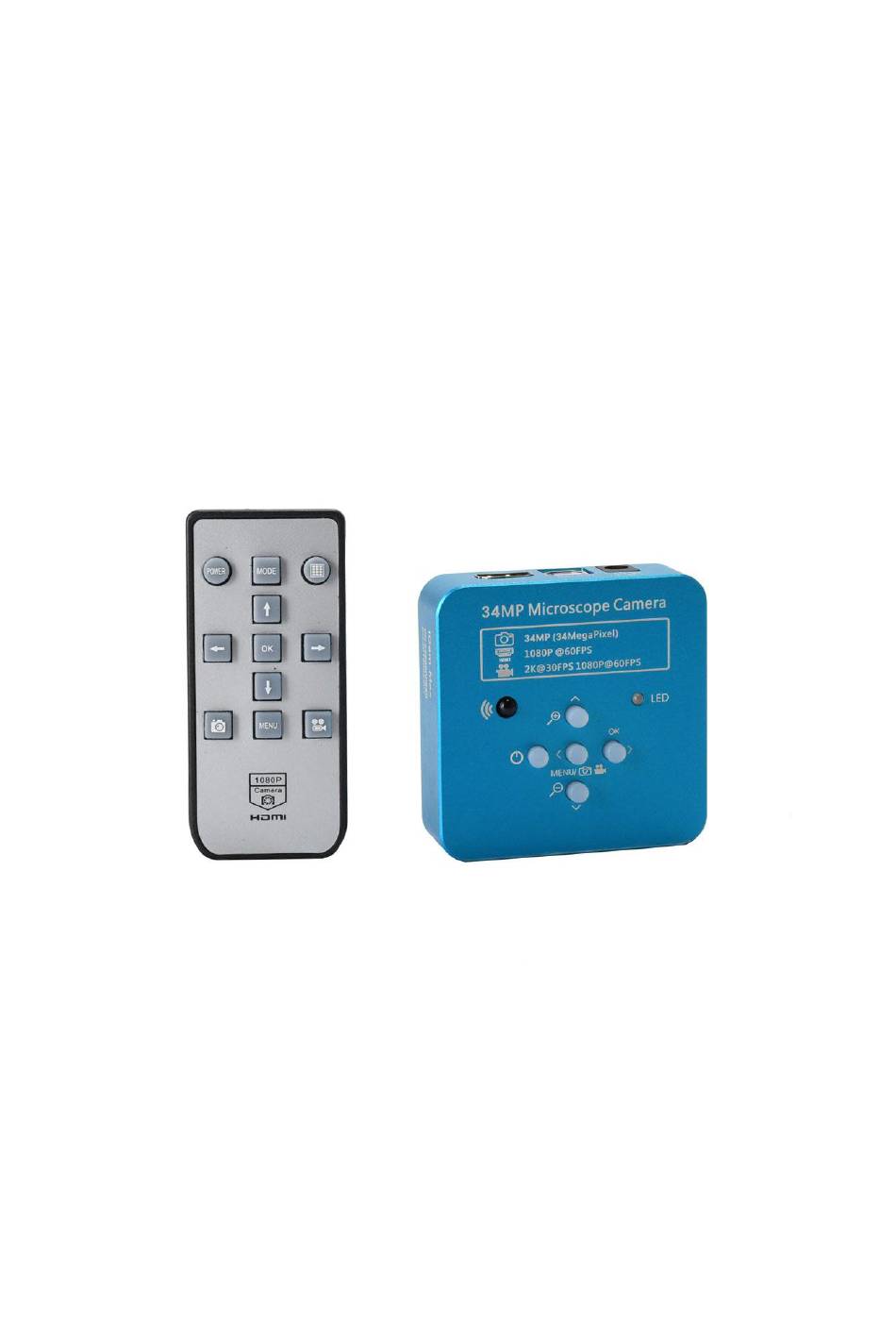

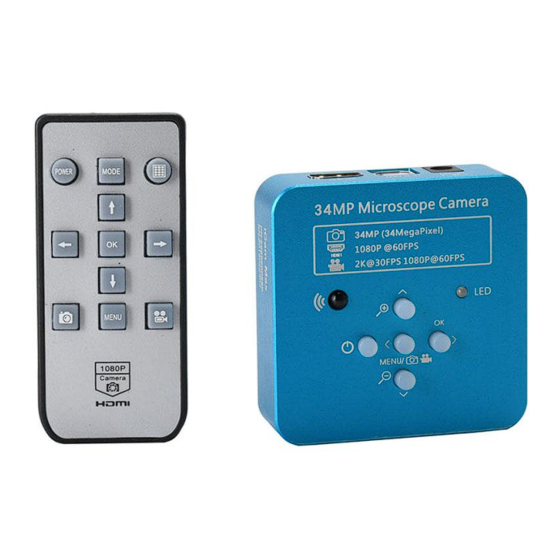

Hdmi industrial camera

Advertisement

Quick Links

HDMI Industrial Camera
User Manual
HY-1139 Industrial Camera V1.5 ( English Version )

Advertisement

loading
Need help?

Need help?

Do you have a question about the HY-1139 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hayear HY-1139

  • Page 1 HDMI Industrial Camera User Manual HY-1139 Industrial Camera V1.5 ( English Version )
  • Page 2 11:Line: 10 lines, 5 horizontal line , 5 vertical line, any positions 13:Menu language: English/Chinese/Japanese/French/German/ Spanish 14:Remote control: support 15:Net weight:250g Package include: HY-1139 camera x 1; Power supply x 1 Remote x 1 USB line x 1 User manual x 1 Shenzhen Hayear Electronics Co, Ltd.
  • Page 3 2: USB output interface 3: TF card storage interface 4: DC interface ( noting: must be 12V) Zoom+/Up OK/Right Menu/photo/video (long press 2 seconds switch photo video Mode) zoom-/down Power off/no SIZE: Shenzhen Hayear Electronics Co, Ltd. - 3 - www.hayear.com...
  • Page 4 8:If there is a gray shadow on the image, use the dust blower to blow off the dust on the optical filter, do not use the detergent to wipe it. Operation instruction Preparatory work 1:Twist the cover and install the lens. Shenzhen Hayear Electronics Co, Ltd. - 4 - www.hayear.com...
  • Page 5: Video Resolution

    Click on the ↑or↓ button to switch selection, click on OK to save your option. 3: image size click on the ↑or↓ button to switch selection, click on OK to save your option. Shenzhen Hayear Electronics Co, Ltd. - 5 - www.hayear.com...
  • Page 6 Click on the ↑or↓ button to switch selection, click on OK to save your option. 6:exposure Click on the ↑or↓ button to switch selection, click on OK to save your option, the exposure value can be only adjusted under auto exposure. Shenzhen Hayear Electronics Co, Ltd. - 6 - www.hayear.com...
  • Page 7: White Balance

    Click on the ↑or↓ button to switch selection, click on OK to save your option. 9: language Click on the ↑or↓ button to switch selection, click on OK to save your option. Shenzhen Hayear Electronics Co, Ltd. - 7 - www.hayear.com...
  • Page 8: Default Setting

    All data will be deleted after format, make sure there is a copy when use this option. 13:default setting Choose cancel and click on OK button it will return to main menu, choose OK and click on OK it will restore factory setting Shenzhen Hayear Electronics Co, Ltd. - 8 - www.hayear.com...
  • Page 9: Hdmi Output

    3: Why the remote control can not work? There is no battery in the package, check if you has installed it. 4: Why there is no image on monitor when playback? Shenzhen Hayear Electronics Co, Ltd. - 9 - www.hayear.com...
  • Page 10 First make sure it is a certified memory card, then format it and try again. USB output S-EYE User Manual Overview HAYEAR is an application for imaging a dynamic image processing , has the following characteristics: User Interface 1. Toolbar:Take pictures/Recording video/Browse files.
  • Page 11 Red, Green and Blue gain: If the connected camera can not support some functions such brightness target value, then the corresponding parameter can not be set up Shenzhen Hayear Electronics Co, Ltd. - 11 - www.hayear.com...
  • Page 12 Two Points Circle Measure a circle, the circle is determined by two points. Three Points Measure a circle, the circle is determined by three Circle points. Measure length of arc. Angle Measure angle. Calibrate Scale Bar Shenzhen Hayear Electronics Co, Ltd. - 12 - www.hayear.com...
  • Page 13 If you have any question, or any advice and feedbacks, please feel free to contact us: info@hayear.com .We’d like to provide the best service to you. Our official website is http://www.hayear.com/. We reserve all the right for the final explanation.
