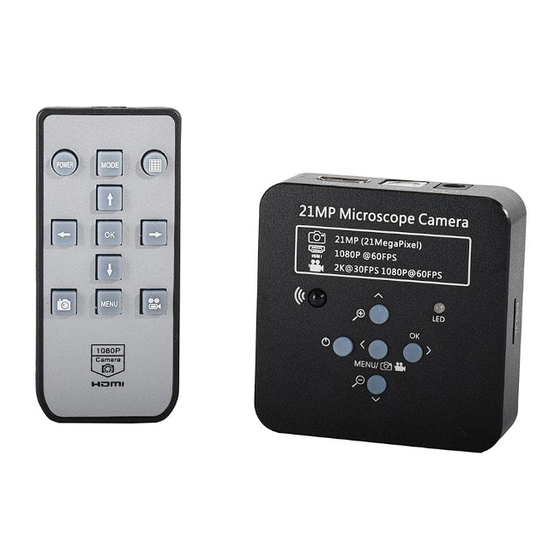

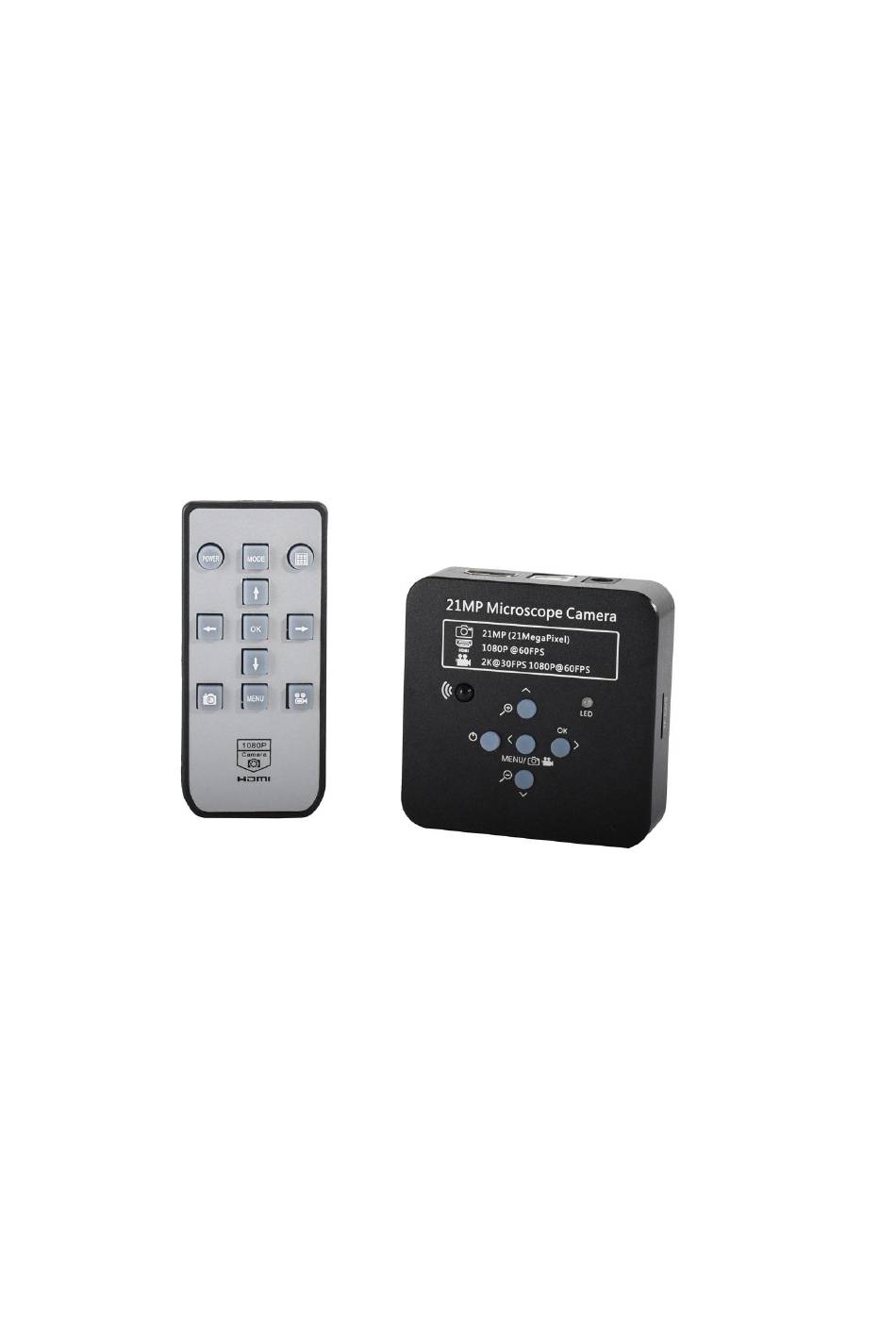

- Page 1 HDMI Industrial Camera User Manual HY-1138 Industrial Camera V1.2 ( English Version )
-
Page 2: Package Include
11：Line: 10 lines, 5 horizontal line , 5 vertical line, any positions 13：Menu language: English/Chinese/Japanese/French/German/ Spanish 14：Remote control: support 15：Net weight:250g Package include: HY-1138 camera x 1; power supply x 1 remote x 1 USB line x 1 User manual x 1 Shenzhen Hayear Electronics Co, Ltd. -
Page 3: Description Of The Interface
2: USB output interface 3: TF card storage interface 4: DC interface ( noting: must be 12V) Zoom+/Up OK/Right Menu/photo/video (long press 2 seconds can switch photo and video Mode) zoom-/down Power off/no SIZE: Shenzhen Hayear Electronics Co, Ltd. www.hayear.com - 3 -... - Page 4 2：Inset the HDMI cable and DC power, when the LED light turn on yellow the camera is on. 3 ： When connect the camera with the computer, just plug the USB line is OK ( no need to use the power Shenzhen Hayear Electronics Co, Ltd. www.hayear.com...
- Page 5 Click on the ↑or↓ button to switch selection, click on OK to save your option. 3: image size click on the ↑or↓ button to switch selection, click on OK to save your option. Shenzhen Hayear Electronics Co, Ltd. www.hayear.com - 5 -...
- Page 6 Click on the ↑or↓ button to switch selection, click on OK to save your option. 6：exposure Click on the ↑ or↓ button to switch selection, click on OK to save your option, the exposure value can be only adjusted under auto exposure. Shenzhen Hayear Electronics Co, Ltd. www.hayear.com - 6 -...
- Page 7 Click on the ↑or↓ button to switch selection, click on OK to save your option. 9: language Click on the ↑or↓ button to switch selection, click on OK to save your option. Shenzhen Hayear Electronics Co, Ltd. www.hayear.com - 7 -...
- Page 8 All data will be deleted after format, make sure there is a copy when use this option. 13：default setting Choose cancel and click on OK button it will return to main menu, choose OK and click on OK it will restore factory setting Shenzhen Hayear Electronics Co, Ltd. www.hayear.com - 8 -...
-
Page 9: Hdmi Output
There is no battery in the package, check if you has installed it. 4: Why there is no image on monitor when playback? Maybe the video is not kept intact, or the video file is too large, and the system needs run time. Shenzhen Hayear Electronics Co, Ltd. www.hayear.com - 9 -... -
Page 10: Usb Output
USB output S-EYE User Manual Overview HAYEAR is an application for imaging a dynamic image processing , has the following characteristics: User Interface 1. Toolbar：Take pictures/Recording video/Browse files. 2. Sidebar tab：Switching the rightmost control panels, currently provides camera control and measurement functions. -
Page 11: Capture Images
Red, Green and Blue gain: If the connected camera can not support some functions such as brightness target value, then the corresponding parameter can not be set up Normal camera parameter adjustment. Shenzhen Hayear Electronics Co, Ltd. www.hayear.com - 11 -... - Page 12 Measure a circle, the circle is determined by two points. Three Points Circle Measure a circle, the circle is determined by three points. Measure length of arc. Angle Measure angle. Calibrate Scale Bar Text Delete all measurement tools. Stitch Shenzhen Hayear Electronics Co, Ltd. www.hayear.com - 12 -...
- Page 13 If you have any question, or any advice and feedbacks, please feel free to contact us: info@hayear.com .We ’ d like to provide the best service to you. Our official website is http://www.hayear.com/.
