- Page 1 HAYEAR Industrial Camera Microscope User Manual HY-6210 Industrial Camera V1.2 Shenzhen HAYEAR Electronics Co., Ltd. http://www.hayear.com...
- Page 2 ◆Image Quality, Sharpness, White Balance Setting --------------------------------------------------- 9 ◆Color, Exposure, Date, Optical Frequency Setting -------------------------------------------------- 11 ◆TF Card, System, Resolution Setting ---------------------------------------------------------------- 13 ◆Loop Recording, Date Stamp Setting --------------------------------------------------------------- 13 HAYEAR Software -------------------------------------------------------------------------------------------- 15 Product Qualified Card -------------------------------------------------------------------------------------- 20 Shenzhen HAYEAR Electronics Co., Ltd. http://www.hayear.com...
-
Page 3: Basic Parameter
Foreword HY-6110 is a multifunctional digital microscope with individually designed, developed and manufactured by Shenzhen Hayear Electronics Co., Ltd. It realizes Full HD, high object distance, multifunctional and multi-output at the same time. With help of the Hayear measuring software, it can easily meet many different requirements in many fields, such as industrial overhaul and teaching demonstration. -
Page 4: Packing List
HAYEAR Support Windows/Mac/ Linux systems, Software with measurement PC Support function (gift) Image zoom 7X digital zoom Chinese, English, Japanese, French, German, Russian, Italian, Korean, Language Setting Turkish Working Voltage Type-C 5V / DC 12V 1A HDR function Support HDR, Multiple exposure HDR, Digital overlap HDR. -

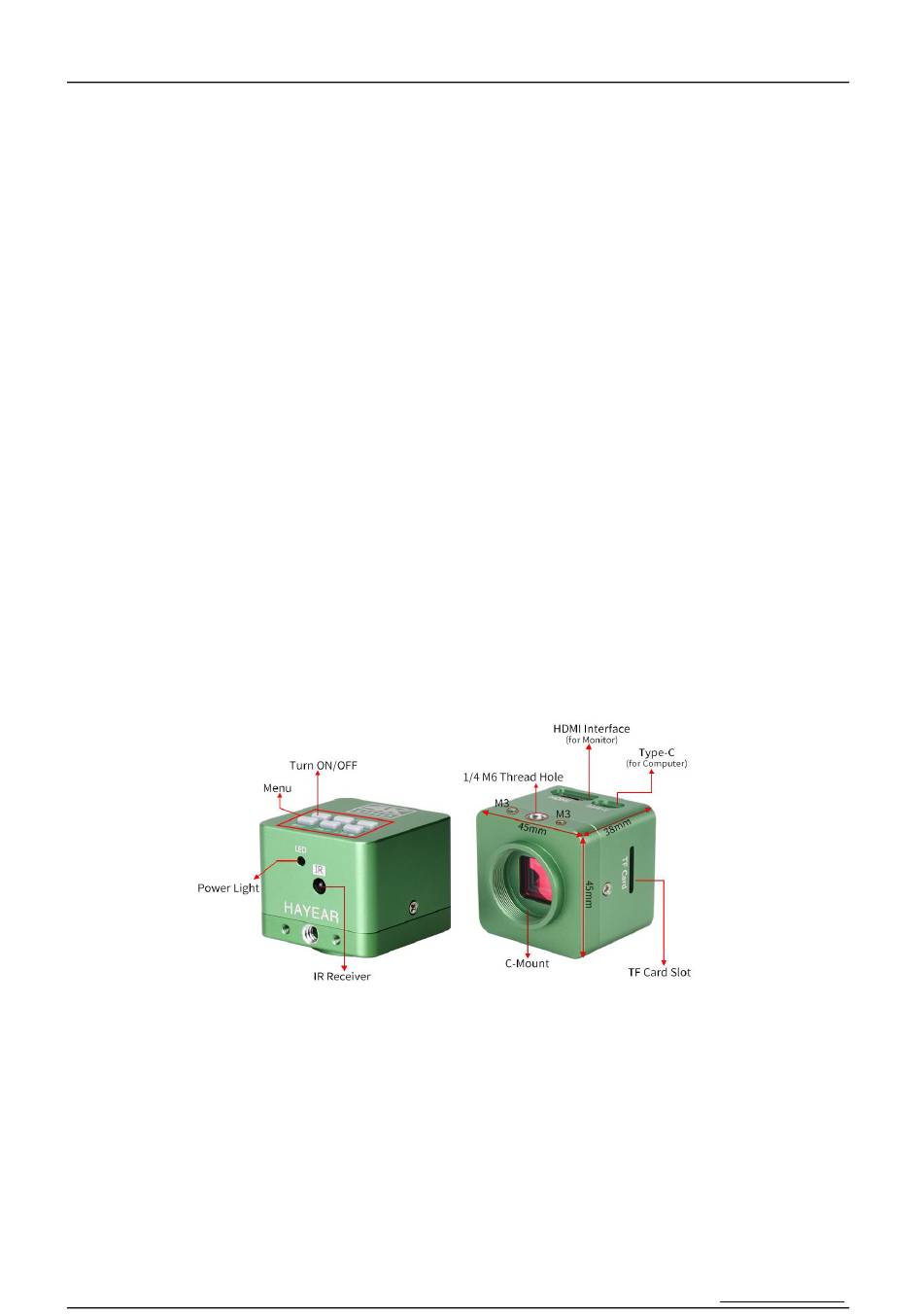

Page 5: Button Instructions
HAYEAR Button instructions Remote control & button instruction Operation instruction Preparatory work 1. Remove the cover and install lens. △ Noting: tear off the dust protection in front of the ！ sensitive film before installing the lens, otherwise the image will be vague!!! 2. -
Page 6: Quick Start
HAYEAR Quick Start ◆HDMI mode *Boot steps 1. Keep the power supply powered on. 2. Press“ON/OFF” button on the camera. 3. Press“UP/DOWN”button to to digitally zoom in and out; the lens is manually adjusted. *Photo mode 1. Sort press“OK” to take the photo *Video mode 1. - Page 7 HAYEAR Press OK to enter and then adjust the option Press UP/DOWN to select the function you need and press AE to adjust, After the adjustment, there is no need to save it separately, just press the MENU to exit the menu.
- Page 8 HAYEAR Mirror comparison setting Press Menu button to enter main menu, press Down button to find the Mirror comparison, press OK to enter, then press UP/DOWN to select the comparison mode you need, and press OK to save the setting. Press Menu again to quit.
-
Page 9: Image Quality Setting
HAYEAR Image quality setting Press Menu button to enter main menu, press Down button to find the Image quality option, press OK to enter, then press UP/DOWN to select, and press OK to save the setting. Press Menu again to quit. - Page 10 HAYEAR ISO Setting Press Menu button to enter main menu, press Down button to find the ISO option, press OK to enter, then press UP/DOWN to select, and press OK to save the setting. Press Menu again to quit.
- Page 11 HAYEAR Date/Time Press Menu button to enter main menu, press Down button to find the Date/Time option, press OK to enter, then press UP/DOWN to adjust, Press OK to adjust next option. After all settings are done, press the MENU button to save the settings and quit.
-
Page 12: Video Resolution Setting
HAYEAR Systems setting Press Menu button to enter main menu, press Down button to find the Default Setting option, press OK to enter, then press UP/DOWN to select Cancel or Confirm. Select Cancel and press OK to give up the operation and return to the main menu; select Confirm and press OK, the camera will be reset to default settings. -
Page 13: Date Stamp Setting
HAYEAR Date Stamp setting Press Menu button to enter main menu under video mode, press Down button to find the Date Stamp option, press OK to enter. Use UP/DOWN buttons to select ON/OFF, press OK to confirm and save. Press Menu to quit. - Page 14 HAYEAR HAYEAR Image Software Instruction Overview HAYEAR measurement software is dynamic image processing software specially developed for camera imaging, with the following features: 1. Support multi cameras, can be switched at any time as you need. 2. The image preview is rendered by GPU and supports dynamic image display with high frame rate and high resolution.
-
Page 15: User Interface
HAYEAR User Interface 1. Main menu: Used to display setting interface, language setting, cross line setting, software information, measurement function setting, etc. 2. Toolbar: Take pictures/Recording video/Browse files. 3. Sidebar tab: Control panels, camera property settings, color settings, exposure settings, etc. -
Page 16: Camera Control
HAYEAR Camera Control Camera device setting: Choose from different cameras, preview resolutions and output formats for images. Image flipped horizontally and vertically Exposure and gain control: If the connected camera does not support certain functions, such as the brightness target value, the corresponding interface controls will not operate. -
Page 17: How To Calibrate
HAYEAR Measurement icon Images Function Description Track Move or adjust the measurement tool, move the whole or a certain endpoint, press Delete button to delete. Point Mark a point on the image. Line Draw a line and measure the length of the line... -
Page 18: Common Malfunctions
HAYEAR 2. After step 1, please find “Calibrate” in “Option”. 3. Enter actual data on the calibrate window After the calibration, please adjust the unit and magnification. Unit: The unit you need Magnification: The magnification of the microscope you using The measurement function can be used now. - Page 19 HAYEAR Qualified Certificate The product has passed the tested, approved for sale Inspector： - 19 -...
