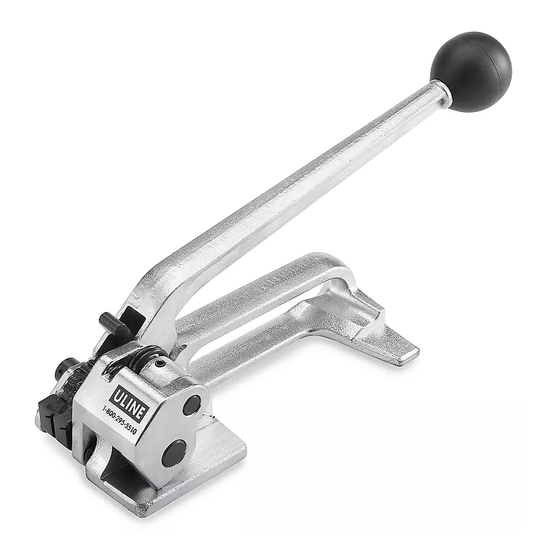

U-Line H-242 Instructions

H-242
INDUSTRIAL STEEL
STRAPPING TENSIONER
THREADING TENSIONER
1. Wrap both ends of strapping around product.
2. Sandwich strapping with the bottom strap facing
toward you. (See Figure 1)
Figure 1
3. Squeeze handle toward base and insert strapping
under the gripper.
4. Pull strapping as close to product as possible to
reduce amount of tensioning necessary.
TENSIONING
1. Move handle back and forth to begin tensioning
2. Continue back and forth motion until strapping has
reached desired tension. (See Figure 2)
Figure 2
PAGE 1 OF 3
1-800-295-5510
uline.com
INSTRUCTIONS
SEALING
1. Place the seal open side down on top of both pieces
of strapping. (See Figure 3)
2. Close nose of sealer around seal.
3. Crimp tightly around strapping.
4. Reposition the tightening handle. If handle is in
forward position, you will need to push handle pawl
forward and allow handle to fall to the base. This
allows you to remove the tensioner when finished or
to realign strapping during tensioning.
5. When finished, cut excess strapping with a strapping
cutter.
MAINTENANCE
Tools need to be cleaned and maintained periodically
with a steel brush or dry compressed air. Lubricate all
moving parts with light machine oil.
Para Español, vea página 2.
Pour le français, consulter la page 3.
Figure 3
Seal
0824 IH-242
