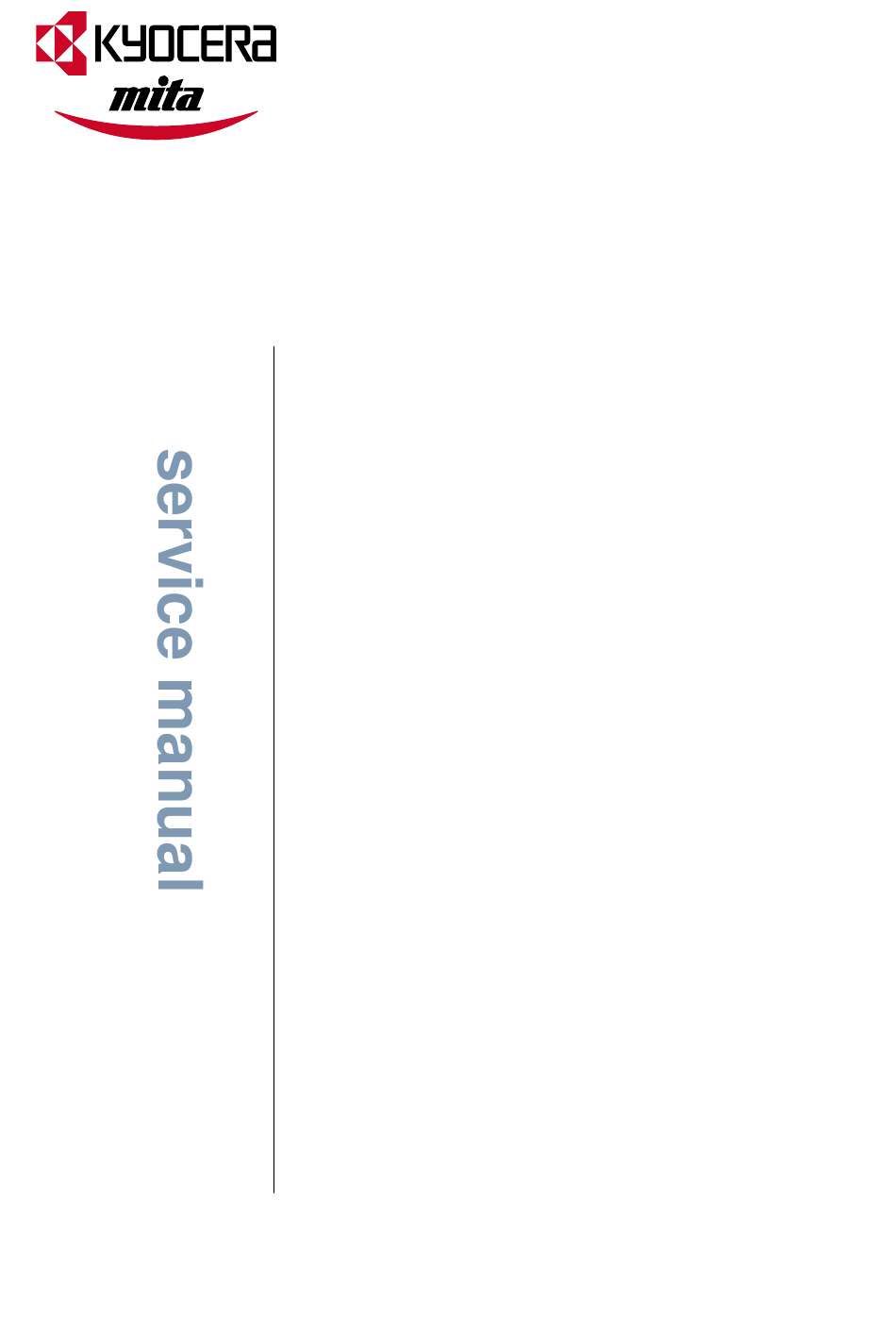

  • Page 1 Bulk feeder PF-8E Ver. 1.00...
  • Page 2 Trademark Notice Prescribe is a registered trademark of Kyocera Corporation. Prescribe IIe, KIR, Kyocera Image Refinement, Ecosys, and Ecotone are trademarks of Kyocera Corporation. This equipment has been certified to comply with the limits for a Class B computing Warning device, pursuant to Subpart J of Part 15 of FCC Rules.
  • Page 3 Preface This manual contains information pertaining to service and maintenance of the Kyocera Mita bulk paper feeder PF-8E. The information in this manual contains the following chapters for servicing the paper feeder: Chapter 1 — Product information Chapter 2 — Maintenance Chapter 3 —...

  • Page 4: Table Of Contents

    Chapter 1 PRODUCT INFORMATION TABLE OF CONTENTS 1.1 General 1.2 Feeder setup 1.3 Precautions concerning service and maintenance 1-13 1.4 Specifications 1-14 1.5 Paper specifications 1-15 Chapter 2 DISASSEMBLY 2.1 Disassembly procedures Chapter 3 HARDWARE NOTES 3.1 Introduction 3.2 Overall block 3.3 FRR System Chapter 4 TROUBLE SHOOTING 4.1 Clearing paper misfeeding...
  • Page 5 Chapter 1 P R O D U C T I N F O R M A T I O N...

  • Page 6: General

    Product Information General General This chapter explains how to setup the feeder with the printer, the product features, and the basic considerations and precautions that should be observed while following the procedures in disas- sembly and service of the product. Following the precautions under section 1.3.

  • Page 7: Feeder Setup

    Product Information Feeder setup Feeder setup Packing List The optional paper feeder package contains each of the following items in the indicated quanti- ties. Optional bulk paper feeder PF-8E, 1 Instruction manual, 1 Option The following option unit must be purchased separately in order to install the feeder with the printer.
  • Page 8 Product Information Feeder setup Choosing a Location The feeder will work best if it is installed in a location that is: Level and well-supported: Place the base on a sturdy table or desk. Not exposed to sunlight or other bright light (not next to an uncurtained window). Well ventilated, not too hot or cold, and not too damp or dry: Temperature should be 10 to 32.5°C, ideally about 23°C (50 to 90°F, ideally about 68°F).
  • Page 9 Product Information Feeder setup Pivot down the MP tray on the paper feed unit. Grasp and pull the MP tray upwards until it is removed from the paper feed unit. Retain the MP tray for future use. Installing the Base and the Printer The printer is mounted on the upper deck of the base.
  • Page 10 Product Information Feeder setup Note The table or desk must be larger than the base. Align the positioning pins on the top of the base with the holes in the base of the printer, then slowly and carefully lower the printer onto the base. Make sure that the connector on the base fits squarely into the corresponding connector in the base of the printer.
  • Page 11 Product Information Feeder setup Installing the Paper Feeder Mount the paper feeder onto the rail in the lower deck of the base. The rail is movable and must be pulled out before installing the paper feeder. Pull the rail fully out until it stops. Grasp the feeder by the two handles in the side covers.
  • Page 12 Product Information Feeder setup Figure 1.4 Aligning the feeder on the base rails Slide the rail with the feeder mounted back toward the printer until the connector on the front side of the feeder is fully connected to the connector on the base, holding the feeder by the both hands.
  • Page 13 Product Information Feeder setup Operating the Optional Paper Feeder This chapter describes how to load paper in the feeder and to select the feeder as the paper source. Caution When the tray is rising or descending, please observe the following precautions. Keep your fingers out of the slot on the inner side of the feeder.
  • Page 14 Product Information Feeder setup Figure 1.6 Adjusting the paper width Place several sheets of the paper you are going to use with the feeder on the center of the paper tray. Adjust the side plates by rotating the adjuster knob on top of the feeder counterclockwise so that the left and right side edges of the paper are flush with the left and right side plates.Then, rotate the adjuster knob half a turn clockwise.
  • Page 15 Product Information Feeder setup Figure 1.7 Direction of feed Direction of paper feed Postcard Envelopes Loading Paper in the Printer’s Cassette To gain access to the printer’s paper cassette for loading paper, etc., slide the paper feeder fully backward from the printer. If you are using a Legal size cassette in the printer, you will need to remove the paper feeder from the mounting base (rail).
  • Page 16 Product Information Feeder setup Selection from the Printer’s Control Panel First, verify that the printer’s message display shows either Ready or Add paper . Next, press the MENU key to change the source of paper feed. The source indication tog- gles between the following sequences: Cassette Bulk feeder...

  • Page 17: Precautions Concerning Service And Maintenance

    Ship units out on a first in, first out basis. Replacement parts Be sure to use only Kyocera Mita-recommended supplies and components. Kyocera Mita assume no liability in the event of damage resulting from the use of unauthorized components. Notes concerning paper storage use of paper with a high moisture content in the paper feeder can adversely affect printing qual- ity through the occurrence of paper jams, wrinkling, and other difficulties.

  • Page 18: Specifications

    Table 1. 1 Specifications Item Specification Applicable printers Kyocera Mita FS-1800, 1800+, 1900, 3800 Print speed with feed from PF-8E FS-1800(N): 16 pages/minute ; FS-1800+/FS-1900: 18 pages/minute; FS-3800(N): 22 (in copy mode) pages/minute (more than PPM-2 = pages/minute) Width: 76 to 216 mm (3 to 8.5") ×...

  • Page 19: Paper Specifications

    Product Information Paper specifications Paper specifications General Guidelines The paper feeder is designed for use with various special types of print media such as adhesive- backed label, thick paper, envelopes, and post cards, it may not be used to print on paper not sat- isfying the requirements below.
  • Page 20 Product Information Paper specifications of A4, B5, A5, letter size, etc. The legal size paper is not usable with the paper feeder. Since the printer does not recognize the size of the paper currently loaded in the option paper feeder, it assumes that all paper fed from the paper feeder have the legal size (8-1/2 by 14 inches).
  • Page 21 Product Information Paper specifications Envelopes should have the basis weight of 70 to 100g/m (0.16 to 0.22 lb./ream) and up to 4 plies of the paper that is used to construct the paper including all flaps and overlaps. Envelopes should have sharply-creased folds and accurately joined corner edges. Envelopes should have a smooth, uncoated surface.
  • Page 22 Product Information Paper specifications Envelopes made using paper, pigment, adhesive, or other material that will degenerate or release hazardous gases when subjected to the heat that is generated in the printer. Envelopes that is bent, dirty, or redundant of paper dust. Curly Envelopes An envelope tends to curl excessively or become uneven in its thickeness since it is constructed by paper which is folded, creased, and seamed in many parts, making the stack of envelopes on...
  • Page 23 Product Information Paper specifications Storage of Envelopes and Postcards Store envelopes and postcards, making sure of the following hints. Avoid leaving paper where it is exposed to sunlight. Store envelopes in a clean, dust-free environment. Temperature in the storage area should be maintained in the range from 50 to 95°F (10 to 35°C), and relative humidity should be kept between 20 and 80 %.
  • Page 24 Product Information Paper specifications PF-8E 1-20...

  • Page 25: Chapter 2 Disassembly

    Chapter 2 D I S A S S E M B L Y...

  • Page 26: Disassembly Procedures

    Disassembly Disassembly procedures Disassembly procedures This section provides procedures for removing parts in the paper feeder. Use the reverse manner of removal when replacing (new) parts. Before beginning disassembly, be sure to read the notes below. Warning Power source—Before removing the feeder from the printer, and whenever attempting ser- vice to the paper feeder, be sure to turn off printer power and unplug the power cord from the AC power source.
  • Page 27 Disassembly Disassembly procedures Figure 2.1 Removing the feeder from the base Slide away Removing the tray door Note The feeder door tends to self-open when the feeder is put sideways or upside-down for ser- vice. Tape the door to the feeder to avoid this situation or remove the door in prior to making service following the manner described below.
  • Page 28 Disassembly Disassembly procedures Figure 2.2 Removing the tray door Tray door Removing the side covers Note To gain access to any of the internal parts, the side covers must be removed first. To remove the side cover, remove two screws at the bottom side of the side cover. Remove the other side cover using the same manner.
  • Page 29 Disassembly Disassembly procedures Figure 2.3 Reoving the side covers Side covers Removing the paper outlet and top cover To remove the paper outlet or the top cover, follow the procedure below. We recommend that the paper outlet is also removed when removing the top cover. To remove the paper outlet, remove two screws as follows.
  • Page 30 Disassembly Disassembly procedures Figure 2.4 Removing the paper outlet and top cover Top cover Paper outlet Removing the mounting rail from the base To remove the rail from the base, remove four screws that secure the stopper at the inner end. Then pull the rail outward as shown below.

  • Page 31: Chapter 3 Hardware Notes

    Chapter 3 H A R D W A R E N O T E S...

  • Page 32: Introduction

    Hardware Notes Introduction Introduction This chapter describes an operational overview of the paper feeder. It ensures correct under- standing of the behavior of both the mechanical and electrical mechanism of the paper feeder to assist servicing. The following basic functions of the paper feeder are discussed in the following pages. FRR system, page 3-5 Electrical parts, page 3-7 IC details and pin assignment, page 3-10...

  • Page 33: Overall Block

    Hardware Notes Overall block Overall block The diagram below shows the main board and the components of the paper feeder. Figure 3.1 Feeder main board COVER INTERLOCK SWITCH To PB-60 UPLIMIT PT.SENSOR PF-8E CONT PWB KP-772 FEED PT.SENSOR DC Motor DOWNLIMIT SWITCH Flash...
  • Page 34 Hardware Notes Overall block the paper feed motor stops. Refer to 3 on page 3-8, Cover interlock switch. YC6: Tray top position sensor This is the input signal for detecting that the paper tray is on the top position. When the bottom of the tray is on the top positioin, the level becomes High, and when the bottom of the paper tray is not on the top position, the lelve becomes Low.

  • Page 35: Frr System

    Hardware Notes FRR System FRR System To avoid paper jam caused when several sheets of paper are fed at one time, the feeder uses the friction retarded roller (FRR) system for paper feed. The operating theory for this system fol- lows this section.
  • Page 36 Hardware Notes FRR System Figure 3.3 FRR system Feed roller Reverse roller Oneway clutch Figure 3.4 Feed and reverse rollers Feed roller In this system, both the paper feed and reverse rollers are driven clockwise at the shaft. The Direction at reverse roller, however, has the torque limiter shaft (one-way clutch) at one end which in normal...
  • Page 37 Hardware Notes FRR System The function of each major component of the feeder is as follows. (All these components are connected to the main circuit board KP-772.) Figure 3.5 Electrical part layout Tray top position sensor Tray elevation motor Paper feed sensor Paper feed motor Cover interlock switch...
  • Page 38 Hardware Notes FRR System the stepping motor. The driver output current for the motor is adjusted and limited by compo- nents R34(R35) which determine the output current, Io, in the following formula: ≈ --------------------- - × The chopping frequency, represented by the period of time during the absence of current flow, Toff, for the stepping motor is determined as follows: ≈...
  • Page 39 Hardware Notes FRR System reverse direction in the control of motor driver U5, SLA5007, a full bridge type DC motor driver, in accordance with the feeder door status sensor (switch). The logic for motor revolution is tabled as follows. Figure 3.7 Tray motor driver SLA5007 MOTOR...
  • Page 40 Hardware Notes FRR System Figure 3.9 Main board layout MTD2007F 74LS07 78F0035 74LS00 PST592JMT 23LC02BT BA10393F IC details and pin assignments This section describes information on the major ICs used with the paper feeder. Figure below shows ICs used with the paper feeder (KP-772 board).
  • Page 41 Hardware Notes FRR System 78F0035 pin assignment Table 3. 1 78F0035 pin assignment Pin # Port # Signal Function Input/Output P50/A8 PHASE A Stepping motor control signal output Output P51/A9 I0 A Stepping motor control signal output Output P52/A10 I0 B Stepping motor control signal output Output P53/A11...
  • Page 42 Hardware Notes FRR System Table 3. 1 78F0035 pin assignment Pin # Port # Signal Function Input/Output P46/AD6 — Unused — P47/AD7 — Unused — Feed motor driver, MTD2007F (U8) The MTD2007F, U8, is a constant-current chopper type driver IC which includes power MOS FETs for simplified driver configuration of the stepping motor.
  • Page 43 Hardware Notes FRR System Tray motor driver, SLA5007 (U5) The SLA5007, U5, is a full-bridge driver IC for controlling the tray elevation motor. This IC provides four modes of motor oper- ation, forward-rotating, reverse-rotating, brake, and stop. The door status switch, when open, requests U5 to rotate the tray ele- vation motor in forward direction so that the paper tray descends;...
  • Page 44 Hardware Notes FRR System PF-8E 3-14...

  • Page 45: Chapter 4 Trouble Shooting

    Chapter 4 T R O U B L E S H O O T I N G...

  • Page 46: Clearing Paper Misfeeding

    TROUBLE SHOOTING Clearing paper misfeeding Clearing paper misfeeding Removing jammed paper If the printer’s message display shows Paper jam or Add paper (even though the feeder has paper loaded inside), detach the paper feeder from the printer by sliding with the rail away from the printer, holding the paper feeder by both hands as shown below.
  • Page 47 TROUBLE SHOOTING Clearing paper misfeeding table below. Table 4. 1 Paper handling problems guideline Symptom Suggested Cause Remedy Open cover. Remove any quantity in excess of Too much paper in feeder. the marked limit. Fan and flex paper to separate sheets. Check that paper isn’t too shiny or slick causing rollers to slip.

  • Page 48: Working With Electrical Problems

    TROUBLE SHOOTING Working with electrical problems Working with electrical problems The following symptoms of feeder operation imply the electrical problems. CE Error "No paper" status still has displayed. PF-8E is not recognized. The tray is not descended even though the cover is opened. The tray is not descended even though paper is empty.
  • Page 49 TROUBLE SHOOTING Working with electrical problems Figure 4.2 Position of condensor C5 1 pin in control board ( ( ( ( K K K K P- P- P- P-7 7 7 7 7 7 7 7 2 2 2 2 ) ) ) ) Measure voltage of C5 1pin(+) Measure voltage of C5 2pin(-) "No Paper"...
  • Page 50 TROUBLE SHOOTING Working with electrical problems PF-8E is not recognized. Table 4. 4 PF-8E is not recognized. Wire between main body-PB60- No ⇒ Replaceor repair wire. PF-8E is in good status? Yes ⇓ Replace engine of printer. YC1 10 pin on the board is 5[V], After replacing, check whether Replace wire between engine No ⇒...
  • Page 51 TROUBLE SHOOTING Working with electrical problems The tray is not descended even though paper is empty. Table 4. 6 The tray is not descended even though paper is empty. Wire between board and elevation motor is in good status? (no damage coating, or No ⇒...
  • Page 52 TROUBLE SHOOTING Working with electrical problems The tray is not ascended even though the cover is closed (and rebooted). Table 4. 7 The tray is not ascended even though the cover is closed (and rebooted). Wire between board and elevation motor is in good ・...
  • Page 53 TROUBLE SHOOTING Working with electrical problems The tray is still kept on ascending over the top position. Table 4. 8 The tray is still kept on ascending over the top position. •Replace board. YC6 2 pin = 0[V] with tray be •Replace Motor.
  • Page 54 TROUBLE SHOOTING Working with electrical problems PF-8E 4-10...

  • Page 55: Chapter 5 Schematic Diagram

    Chapter 5 S C H E M A T I C D I A G R A...

  • Page 56: Schematic Diagram

    SCHEMATIC DIAGRAM Schematic diagram Schematic diagram PF-8E...
  • Page 57 SCHEMATIC DIAGRAM Schematic diagram PF-8E...
  • Page 58 SCHEMATIC DIAGRAM Schematic diagram PF-8E...
