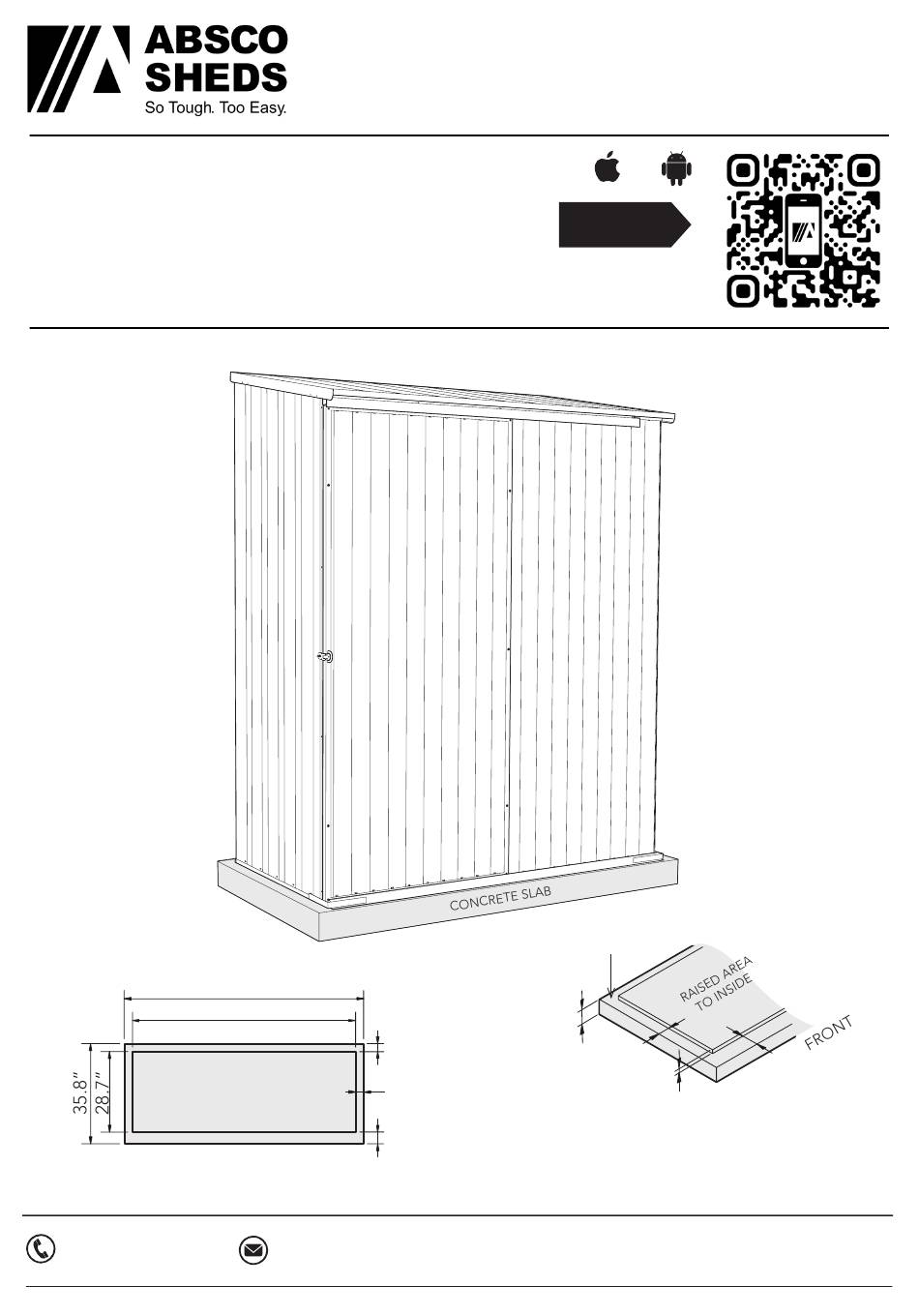

ASSEMBLY APP AVAILABLE ON
We highly recommend downloading the Absco Sheds
Assembly App to assist with your build.
STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY
CUSTOMER SERVICE • WARRANTY INFORMATION • COUNCIL FORMS
CONCRETE SLAB
BASE: 63.8" W x 35.8" D x 4" H
REBATE: 57.9" W x 28.7" D x 1" H
AU: 1800 029 701
+1 (866) 788 3046
+1 (866) 788 3046
N Z: 0800 466 444
Absco Industries
Assembly Instruction Manual

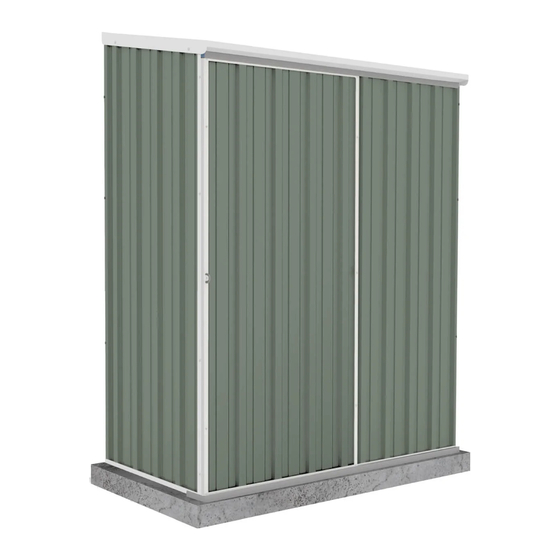

ABSCO EZISLIDER SHED
MODEL: 15081EZK-PTX
5' W x 2'7" D x 5'11" H, 6'5" H
63.8"
57.9"
3"
3"
4.13" *
FRONT
admin@absco.com.au
admin@absco.com.au
www.abscogardensheds.com
www.abscosheds.com.au
Scan to
download
Door opening: 27.6" W x 68.5" H
SHED & TRACK
SIT ON THIS LEVEL
4"
When laying concrete slab, ensure there is a
rebated edge. 3" wide x 1" tall to the sides
and rear, *the front is 4.13" wide to allow for
the track.
PLEASE LEAVE A REVIEW
www.abscosheds.com.au/review
Model: 15081EZK-PTX
+
Roof area: 60" x 35.4"
Base(Incl track): 60" x 33.5"
3"
4.13"*
1"
5/07/24
1.2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZISLIDER 15081EZK-PTX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABSCO SHEDS EZISLIDER 15081EZK-PTX

Summary of Contents for ABSCO SHEDS EZISLIDER 15081EZK-PTX

  • Page 1 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H ASSEMBLY APP AVAILABLE ON We highly recommend downloading the Absco Sheds Scan to download Assembly App to assist with your build. STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY CUSTOMER SERVICE •...
  • Page 2 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H GENERAL INSTRUCTIONS SAFETY NOTES • Before commencing any assembly, read • Some parts may have sharp edges. It is through these instructions in detail to gain advisable to wear gloves when handling these a thorough understanding of assembly items and safety glasses if drilling holes.
  • Page 3 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H COMPONENT PACKING LIST Nominal sheet widths are shown +/- 0.08” is within tolerance Check off all components. DESCRIPTION PART # DESCRIPTION PART # STEEL SHEET STEEL SHEET 72.8”...
  • Page 4 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H COMPONENT PACKING LIST Check off all components. DESCRIPTION PART # DESCRIPTION PART # FAST END STOP C-HANDLE BOTTOM M4 x 25 mm FAST BRACKET PAN HD SCREW LATCH &...
  • Page 5 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel. Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.

  • Page 6: Rear Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H REAR PANEL ASSEMBLY 1x required Absco Industries Assembly Instruction Manual Model: 15081EZK-PTX 5/07/24...

  • Page 7: Side Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H SIDE PANEL ASSEMBLY Absco Industries Assembly Instruction Manual Model: 15081EZK-PTX 5/07/24...
  • Page 8 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H ROOF PANEL ASSEMBLY Rear 1x required 1.5” NOTE: The two 50G sheets must be orientated the same way. Refer to these pan holes when Front orientating the sheets.

  • Page 9: Front Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H FRONT PANEL ASSEMBLY 1. Take the 30D sheet and orientate it as shown with the four edge holes to the right. The 80C channel will cover the edge, with the longer 0.8”...
  • Page 10 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H FRONT PANEL ASSEMBLY 4. Take the 54G channels and insert the shorter 0.6” side into the top and bottom channels as shown. The exterior side, fasten with three pop rivets.
  • Page 11 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H FRONT PANEL ASSEMBLY 6. Take the TR1375 track track and make the top edge flush with the top of the channel. The end of the track should be flush with the left side of the panel.

  • Page 12: Door Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H DOOR PANEL ASSEMBLY DOOR PANEL ASSEMBLY BOTTOM CHANNEL TOP CHANNEL Take the supplied 6mm drill bit and drill out the two outermost Take a door slide FAST001 prepunched holes as shown.
  • Page 13 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H DOOR PANEL ASSEMBLY 2x required BOTTOM Make sure you have the longer 0.8” side of the 58B channels over the front of the sheeting. NOTE: There are no pre-drilled holes for the 58B channels in the SL1 sheet. Please use the 1/8”...
  • Page 14 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H PANEL CONSTRUCTION Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not.
  • Page 15 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H Refer to these pan holes when FINAL CONSTRUCTION putting the roof on. The larger overhang goes to the front. REAR FRONT Fasten the roof panel: 1.
  • Page 16 ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H BOTTOM DOOR Position the track against the TRACK bottom slides of the door and the front wall as shown. Secure the track to the shed at both ends with a BKT260 bracket and 4x tek screws.

  • Page 17: Bottom Track

    ABSCO EZISLIDER SHED MODEL: 15081EZK-PTX 5’ W x 2’7” D x 5’11” H, 6’5” H Bolt and ANCHORING WALLS nut M10 4.6/S Steel angle Wall 35 x 35 x 3 sheet Location of 8 Dynabolt concrete anchors Slab The 8 anchoring positions along walls are anchored with this method.
  • Page 18 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 19 THE CUSTOMER SERVICE MANAGER, ABSCO SHEDS, PO BOX 119 ACACIA RIDGE QLD AUSTRALIA 4110 PHONE: +61 1800 029701 EMAIL: warranty@absco.com.au...
