ABSCO INDUSTRIES
Absco ECO Shed
Assembly Instructions
Model: 15081SECO
ASSEMBLY INSTRUCTION - MODEL: 15081S 22/10/13

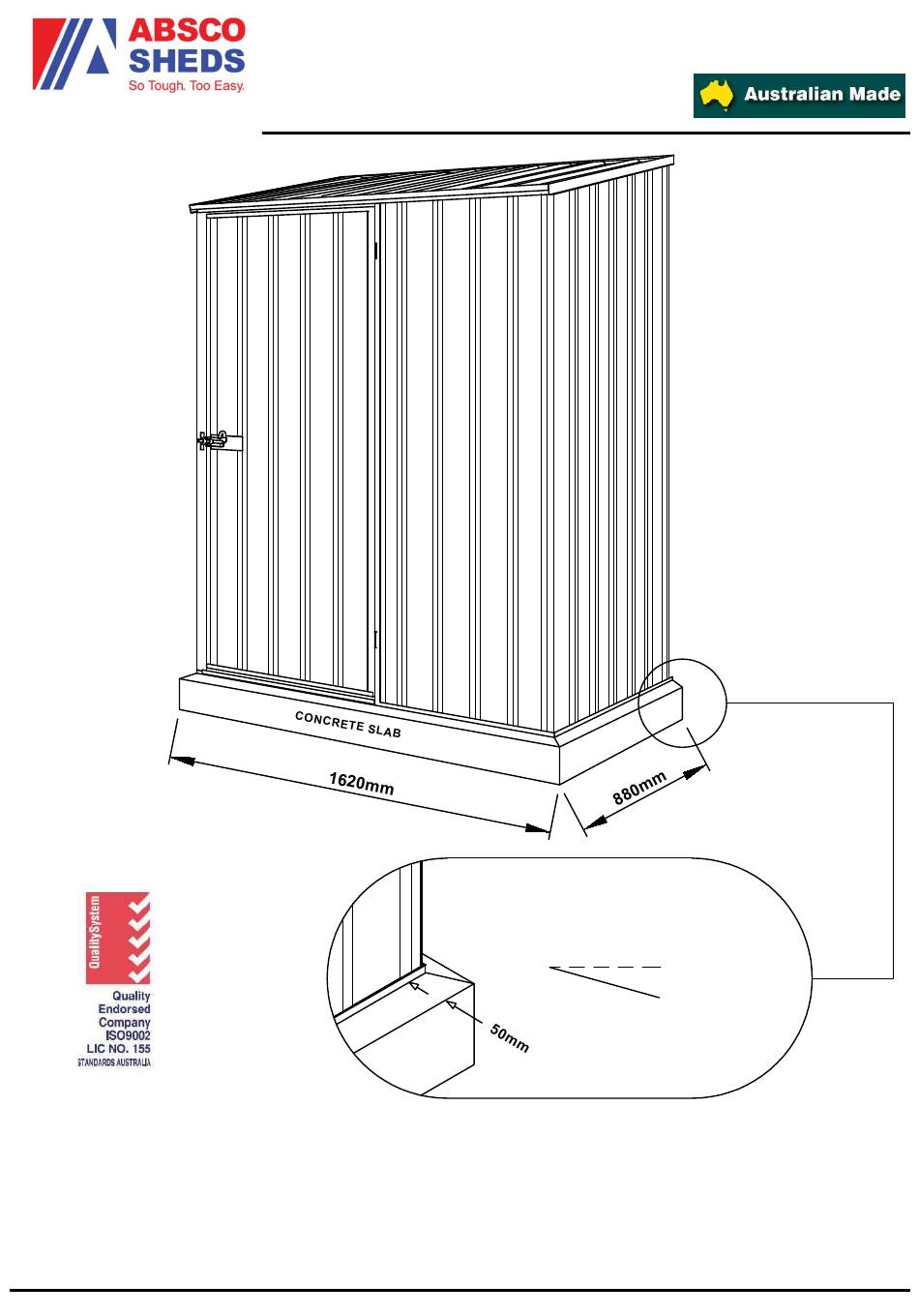

WHEN LAYING YOUR CONCRETE
SLAB, CHAMFER THE 50mm EDGES
DOWNWARDS BY 10mm.
50mm
THIS WILL ENSURE THAT
WATER RUN OFF IS KEPT
CLEAR FROM YOUR SHED
FRONT BASE
LENGTH: 1.52m
SIDE BASE
LENGTH: 0.78m
FRONT WALL
HEIGHT: 1.8m
REAR WALL
HEIGHT: 1.95m
10mm
PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ABSCO SHEDS 15081SECO
Summary of Contents for ABSCO SHEDS 15081SECO
- Page 1 Absco ECO Shed Assembly Instructions Model: 15081SECO FRONT BASE LENGTH: 1.52m SIDE BASE LENGTH: 0.78m FRONT WALL HEIGHT: 1.8m REAR WALL HEIGHT: 1.95m WHEN LAYING YOUR CONCRETE SLAB, CHAMFER THE 50mm EDGES DOWNWARDS BY 10mm. 50mm 10mm THIS WILL ENSURE THAT...
- Page 2 Absco ECO Shed Model: 15081SECO GENERAL INSTRUCTIONS Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on pages three and four.
- Page 3 Absco ECO Shed Model: 15081SECO COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET 1915 X 773mm CHANNEL L = 1513mm STEEL SHEET CHANNEL 1915mm X 773mm L = 1513mm STEEL SHEET...
- Page 4 Absco ECO Shed Model: 15081SECO COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS COMPONENT PART PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION CHANNEL WITH HINGES JAMB L= 1785mm L = 1725mm CHANNEL JAMB L= 783mm L = 1725mm CHANNEL JAMB L= 1120mm...
- Page 7 Absco ECO Shed Model: 15081SECO ABSCO ASSEMBLY INTRODUCTION The snap-tite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners. To pre-assemble the four wall panels and two roof panels, the perimeter...
-
Page 8: Door Panel Assembly
Absco ECO Shed Model: 15081SECO DOOR PANEL ASSEMBLY DOOR PANEL ASSEMBLY 20mm FLANGE 15mm FLANGE ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 15081S 22/10/13 PAGE 8... -
Page 9: Rear Panel Assembly
Absco ECO Shed Model: 15081SECO REAR PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 15081S 22/10/13 PAGE 9... -
Page 10: Side Panel Assembly
Absco ECO Shed Model: 15081SECO SIDE PANEL ASSEMBLY (TWO REQUIRED) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 15081S 22/10/13 PAGE 10... -
Page 11: Roof Assembly
Absco ECO Shed Model: 15081SECO ROOF ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 15081S 22/10/13 PAGE 11... -
Page 12: Front Panel Assembly
Absco ECO Shed Model: 15081SECO FRONT PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 15081S 22/10/13 PAGE 12... - Page 13 Absco ECO Shed Model: 15081SECO DOOR PANEL ASSEMBLY NOTE: NUTS AND BOLTS (SUPPLIED) MAY BE USED INSTEAD OF POP RIVETS (SUPPLIED) BY SIMPLY ENLARGING THE HINGE HOLE SETS IN THE JAMB USING A 4MM DRILL BIT NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
- Page 14 Absco ECO Shed Model: 15081SECO PANEL CONSTRUCTION SIDE WALL PANEL CHANNELS FIT INTO THE NOTCHED FRONT AND REAR WALL PANEL CHANNELS REPLACE PADBOLT HASP 10mm SCREWS WITH 20MM SCREWS CONNECT DOOR MULLION SECTIONS WITH SIX 20mm SCREWS ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 15081S 22/10/13...
- Page 15 Absco ECO Shed Model: 15081SECO ANCHORING OF SHED FINAL CONSTRUCTION LOCATION OF 8 CONCRETE ANCHORS WALL BOLT & NUT SHEET STEEL ANGLE - EACH ANCHOR CONSISTS OF ONE NUT, BOLT, DYNABOLT AND STEEL ANGLE SLAB - DRILL A 10mm HOLE INTO THE WALL SHEET...
- Page 16 DEFECTS Congratulations on your purchase of an ABSCO SHED ABSCO SHEDS, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. We are pleased to advise we warrant that the steel coating will not rust, crack, flake peel or blister for 10 years from date of purchase, when installed within Australia.
- Page 17 ABSCO SHEDS and storage units are primarily used for storage of garden equipment such as lawnmowers, wheelbarrows, garden tools etc. Storage...
