ABSCO SHEDS 1508WBCK Assembly & Instruction Manual

Bin cover
Hide thumbs Also See for 1508WBCK:
Table of Contents

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
N Z: 0800 466 444
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
*Most models available
Absco Industries

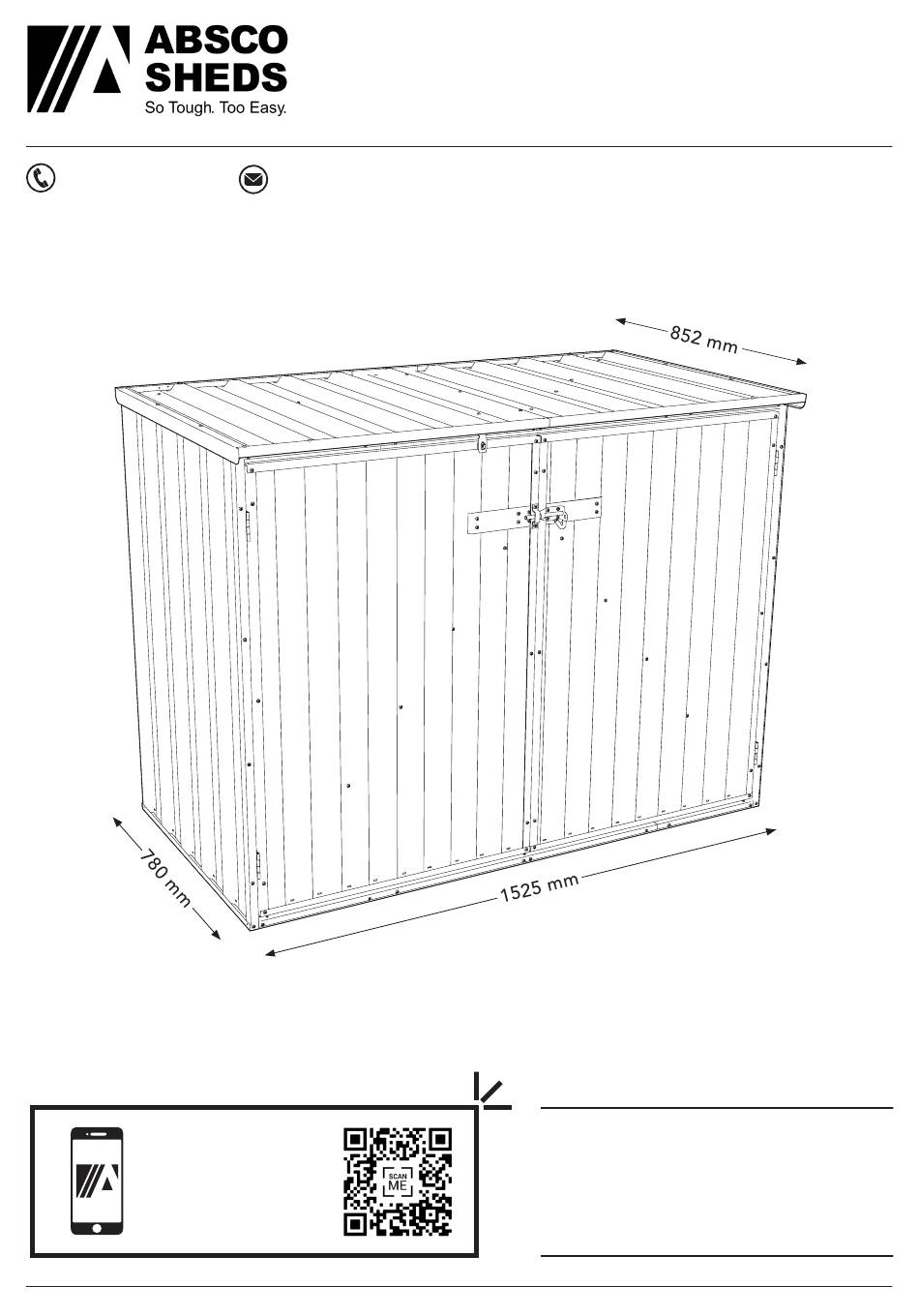

Assembly Instruction Manual

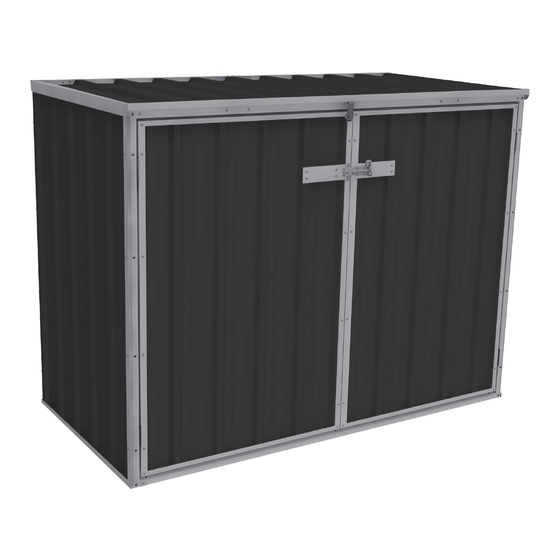

ABSCO BIN COVER
MODEL: 1508WBCK
1.52m W x 0.78m D x 1.15m H
admin@absco.com.au
www.abscosheds.com.au
Model: 1508WBCK
• Store up to two 240L garbage bins.
• Maximum internal height 1.11 m
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
10/3/23
3.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1508WBCK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABSCO SHEDS 1508WBCK

Summary of Contents for ABSCO SHEDS 1508WBCK

  • Page 1 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au • Store up to two 240L garbage bins. • Maximum internal height 1.11 m DOWNLOAD PLEASE LEAVE A REVIEW...
  • Page 2 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...

  • Page 3: Components List

    ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H COMPONENTS LIST DESCRIPTION PART # DESCRIPTION PART # STEEL SHEET STEEL SHEET 1130 x 773 mm 1070 x 731 mm STEEL SHEET STEEL SHEET 852 x 773 mm...
  • Page 4 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H DESCRIPTION PART # DESCRIPTION PART # CHANNEL CHANNEL 53HL 53HR 751 mm 751 mm CHANNEL CHANNEL 53JL 53JR 756 mm 756 mm CHANNEL CHANNEL 81FL 81FR 756 mm...
  • Page 5 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H PRE-ASSEMBLY OF SPLICED CHANNELS Join together 12x channel sections using 6x channel joiners (CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
  • Page 6 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1.
  • Page 7 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.

  • Page 8: Rear Panel Assembly

    ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H REAR PANEL ASSEMBLY 1. Layout and overlap sheets by one rib as shown. Sheet 44Z must be on top with the three holes in the centre. FAST096 2.
  • Page 9 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H REAR PANEL ASSEMBLY 4. Now both channels are attached, fasten their L&R pieces CONTINUED to the CSJ with a self drilling screw FAST096 in each top hole - four screws total.

  • Page 10: Side Panel Assembly

    ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H SIDE PANEL ASSEMBLY 1. Attach the two 61G channels 2 required to both ends of the Y81 sheet using the SNAP-TiTE method. Make sure you have the shorter, 15 mm side of the channel to the outside of the sheeting.
  • Page 11 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H LID PANEL ASSEMBLY Sheet holes are exaggerated for 1. Layout and overlap sheets by illustrative purposes one rib as shown. Orientate the sheets as shown, please note the pan holes.
  • Page 12 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H LID PANEL ASSEMBLY 4. Now both channels are CONTINUED attached, fasten their L&R pieces to the CSJ with a self drilling screw FAST096 in each top hole - four screws total.
  • Page 13 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H LID PANEL ASSEMBLY LID PANEL ASSEMBLY CONTINUED CONTINUED Flip the panel over, Check you These sheet have the panel orientated as holes will be shown for the next step.
  • Page 14 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H LEFT DOOR PANEL ASSEMBLY 1. Orientate the 37B sheet as shown. Sheet holes are exaggerated for 2. Attach the top and bottom illustrative purposes channels using the SNAP-TiTE method.
  • Page 15 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H LEFT DOOR PANEL ASSEMBLY CONTINUED 5. Attach the 12A door plate to the sheet with six self tapping screws FAST001. 6. Let’s attach the hinges. Use the supplied 3 mm drill bit...
  • Page 16 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H LEFT DOOR PANEL ASSEMBLY 8. Now we’ll fit the door brace 91A to the inside of the door. CONTINUED Orientate it so the face with the holes is to the sheet.
  • Page 17 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H RIGHT DOOR PANEL ASSEMBLY 1. Orientate the 37C sheet as shown. Sheet holes are exaggerated for 2. Attach the top and bottom illustrative purposes channels using the SNAP-TiTE method.
  • Page 18 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H RIGHT DOOR PANEL ASSEMBLY CONTINUED 5. First attach the 12A door Do these plate through the pair of holes in two first the sheet with two self tapping screws FAST001 at the location shown.
  • Page 19 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H RIGHT DOOR PANEL ASSEMBLY CONTINUED 8. Now we’ll fit the door brace 91A to the inside of the door. Orientate it so the face with the holes is to the sheet.

  • Page 20: Front Panel Assembly

    ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H FRONT PANEL ASSEMBLY 1. Arrange the 53H channels top and bottom and place these two 91K jambs with the hinge faces towards one another. FAST013 2. Fasten with a longer 20mm self tapping screw FAST013 at each corner.
  • Page 21 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H FRONT PANEL ASSEMBLY 3. Next are the top-of-doorway jambs. CONTINUED Orientate the top jamb 91HR so the side jamb goes into the slot and slide it up into the top channel.
  • Page 22 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H FRONT PANEL ASSEMBLY CONTINUED 7. Be sure to fasten the L&R pieces of the top and bottom channels to the CSJ with a tek screw FAST096 in each top hole - four screws total.

  • Page 23: Wall Panel Assembly

    ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H WALL PANEL ASSEMBLY Make sure to have the wall panels orientated correctly: - Rear panel with hinges to top FAST096 - Side panels with 80F channel to...
  • Page 24 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H ATTACH DOORS Let’s attach the doors to the front panel. We’ll start with the right door panel. 1. Use the supplied 3 mm drill bit DRILL and go through these existing jamb holes, do all six.
  • Page 25 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H LID PROPS & CORNER BRACES Channel 61PR goes on the right 61PR side and 61PL goes on the left. 1. Align the existing pivot hole with the hole in the end of the...
  • Page 26 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H LID PANEL INSTALLATION It’s critical that walls are square before proceeding. 1. Place lid on top of walls. Check you have the lid orientated so the bracing is as pictured.
  • Page 27 ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H DOOR HASPS & LATCH Attach the two padbolt hasps 1. Take a hasp, place it on the edge of the left door and centre it over the padbolt shaft from the right door.

  • Page 28: Final Assembly

    ABSCO BIN COVER MODEL: 1508WBCK 1.52m W x 0.78m D x 1.15m H FINAL ASSEMBLY Bin handle loop - Option Use these as a hitching point for a cord so when you open the cover the bin lids open too.
  • Page 29 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
