1/10 ep rwd competition r/c drift car chassis kit 1/10 (32 pages)

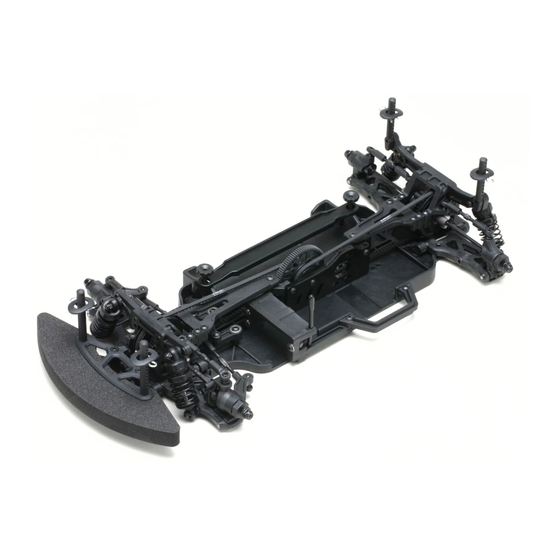

Summary of Contents for Yokomo ROOKIE SPEED RS 2.0
Page 2
走行してして下さい。 ① スピー ドコン トローラのスイッチをOFFにします。 ② バッテリーの接続を外します。 ③ 送信機のスイッチをOFFにし、 アンテナを縮めます。 Thank you for purchasing this Yokomo product. This high performance competition kit has been proudly manufactured by Yokomo - World Champion R/C car manufacturer. Proper assembly of this product will provide fun, safe enjoyment. PRECAUTIONS FOR SAFE ENJOYMENT OF YOUR R/C CAR For children under the age of 13, parental guidance is recommended when running. ■ ASSEMBLY PRECAUTIONS ■ ■ PRECAUTIONS BEFORE RUNNING ■ ■ BATTERY USAGE ■ ● Do not assemble around small children. The ● Yokomo R/C cars are built for competition use, and (Carefully read the instruction included with the batteries) parts can be dangerous if accidentally some models may exceed speeds of 40km per hour. ● When charging batteries, make sure that the swallowed. Practice common sense and run the car in open safe surrounding area is void of anything highly flammable. places, or R/C car tracks. ● Check the contents carefully before Also avoid charging in high-temperature locations. assembly. Please contact Customer Support ● Do not run the car on public roads with high amounts ...
Page 4
1 メインシャーシの組立て RS-301 サスマウント RF Main chassis assembly 穴の無い側 Sus-mount RF No hole side. RS-202P ベルクランク ポスト Bellcrank post このページで使用するパーツ Parts used on this page RS-002P メインシャーシ Main chassis RS-002P メインシャーシ ×1 Main chassis 袋 #1 の内容 Bag #1 Contents ZC-F38A M3x8 サラビス FHS Screw RS-202P ベルクランク ポスト ×2 Bellcrank post RS-301 サスマウント RF×1 ZC-F38A Sus-mount RF M3x8 サラビス FHS Screw ZC-F38A M3x8 サラビス ×4 FHS Screw 2 メインシャーシの組立て、つづき...
Page 5
●Diff case● 3. ギヤデフの組立て ●Diff pulley● Gear diff assembly RS-501GA RS-500GM RS-501GA ドライブカップ RS-500GM φ5 O リング 薄 ドライブカップ Drive cup φ5 O リング 厚 O-ring thin Drive cup RS-500GM O-ring thick RS-500GM φ5xφ11x0.2mm シム φ5 O リング 薄 このページで使用するパーツ Shim O-ring thin Parts used on this page RS-500GM φ5 O リング 厚 O-ring thick CS-BGA RS-500GM ブラックグリス ×1 φ5xφ8x0.1mm シム Black grease Shim RS-500GM φ5xφ8x0.1mm シム ...
Page 6
4. ドライブ プーリーの組立て ベルトをプーリーに通してから取り付けます。 RS-351L Pass the belt through pulley and then ドライブベルト Drive pulley assembly Drive belt attach it. RS-003R2 リヤアッパー デッキ サポート このページで使用するパーツ Rear upper deck support BB-85-4A Parts used on this page 5x8 ベアリング Bearing CS-BGA ブラックグリス ×1 RS-644R2 Black grease メイン シャフト Main shaft ZC-BH312A 袋 #4 の内容 M3x12 ボタンヘッド RS-630 BHS Screw Bag #4 Contents フロント プーリー Front pulley BB-85-4A ZC-FT35 5x8 ベアリング RS-630 M3x5 フラットヘッド Bearing フロント プーリー...
Page 7
5. ギヤデフの取付け ZC-BH310A Gear diff installation M3x10 ボタンヘッド BHS Screw 刻印 ●Rear side● Mark RS-302C リヤ バルクヘッド キャップ Rear bulkhead cap ●Front side● ベルト テンション カムの向きに注意。 左右同じ位置にして下さい。 Pay attention to the direction of the belt ブラックグリス塗布 tension cam. BD-BTCSA Apply black grease. Please put them in the same position on both デフボール Short sides. Diff ball BD-BTCSA カムスプリング RS-351L Long Cam spring ドライブベルト Drive belt ギヤ デフ Gear diff このページで使用するパーツ Parts used on this page CS-BGA ベルトを通してから取り付けます。 ブラックグリス ×1 Pass the belt through it and ...
Page 8
6. ベルクランク , サーボの組立て 2 セット作ります。 SD-TB39A Assemble 2 Sets . 39mm ターンバックル Bell crank,Servo assembly 39mm Turnbuckle ボールエンドキャップ Ball end cap このページで使用するパーツ 片側が逆ネジになっています。 Parts used on this page One side of the turnbuckle is B9-207A B9-207A 26.5mm reverse threaded. CS-BGA ボールエンドキャップ ボールエンドキャップ ブラックグリス ×1 Ball end cap Ball end cap Black grease 1 セット作ります。 SD-TB25A Assemble 1 Set. 25mm ターンバックル 袋 #5 の内容 ターンバックル 25mm Turnbuckle Bag #5 Contents Turnbuckle...
Page 9
7. サーボの取付け ZC-BH38-A M3x8 ボタンヘッド Servo installation BHS Screw ZC-BH312A M3x12 ボタンヘッド BHS Screw RS-017R2 リヤ サイド バー Rear side bar サーボ Servo このページで使用するパーツ Parts used on this page 袋 #5 の内容 Bag #5 Contents はめ込む Put in. RS-017R2 フロント サイド バー ×1 Front side bar RS-017R2 リヤ サイド バー ×1 Rear side bar 図の様に先にフロントサイド バーを取付け てからサーボとリヤサイド バーを取付けて 下さい。 ZC-F38A First install the front sidebar as M3x8 サラビス ×2 shown in the drawing, then install the FHS Screw servos and rear sidebar. ZC-BH38-A RS-017R2 M3x8 ボタンヘッド...
Page 10
9. ショックタワーの取付け Shock tower installation ボールエンドキャップ 2 セット作ります。 SD-TB30A Ball end cap Assemble 2 Sets . 30mm ターンバックル 30mm Turnbuckle 片側が逆ネジになっています。 このページで使用するパーツ One side of the turnbuckle is Parts used on this page reverse threaded. B9-207A 16mm B9-207A ボールエンドキャップ ボールエンドキャップ 袋 #7 の内容 Ball end cap Ball end cap Bag #7 Contents ターンバックル Turnbuckle 2 セット作ります。 SD-TB30A Assemble 2 Sets . 30mm ターンバックル RS-017R2 ボールエンドキャップ 30mm Turnbuckle フロント ショック タワー ×1 Ball end cap Front shock tower...
Page 11
10. ハブキャリアの組立て ●Front side● R 側も対称に組立てます。 左右各 1 セット作ります。 Assemble each side in the same manner . Hub Carrier Assembly Assenble one set for each side. B12-413 RS-500DP フロント ステアリングハブキャリア (R) ジョイントプロテクター Front steering hub carrier Joint protector RS-010 このページで使用するパーツ ユニバーサルシャフト (45.5mm) Parts used on this page Universal shaft 袋 #8 の内容 B9-415SA Bag #8 Contents ステアリングブロック Steering block BB-105-2A RS-010 5x10 ベアリング ユニバーサルシャフト (45.5mm) ×4 Bearing Universal shaft B8-206MHA ロッドエンドボール M Rod end ball M B9-415SA BB-105-2A...
11. サスアームの組立て ●Front side● フロントハブキャリア (L) Suspension arm assembly Front hub carrier (L) このページで使用するパーツ Parts used on this page ZC-SS48A M4x8 セットスクリュー Set screw 袋 #9 の内容 Bag #9 Contents 1.3mm B10-008FA フロント ロア サスアーム (L) B10-008FA Front lower suspension arm フロント ロア サスアーム (L) ×1 Front lower suspension arm B9-009AFA フロント アウターサスアームピン Front outer suspension arm pin ZC-SS34A B10-008FA M3x4 セットスクリュー フロント ロア サスアーム (R) ×1 R 側も対称に組立てます。 Set screw Front lower suspension arm Assemble each side in the same manner . ピンを通してから取り付けます。 Insert the pin and then install it. フロントハブキャリア (R) Front hub carrier (R) ...
12. サスアームの取付け Suspension arm installation 右側も同様に取り付けます。 Install the right side in the same manner. ●Front side● 右側も同様に取り付けます。 Install the right side in the same manner. RS-301 サスマウント FF Sus-mount FF BD-009BRA リヤ インナー サスアーム ピン はめ込む Rear inner sus-arm pin Put in. ドライブカップ Drive Cup BD-301BA φ3 サスアーム ピン ボール Sus-arm pin ball ZC-F38A B10-008FA M3x8 サラビス BD-301BA アームスペーサー FHS Screw φ3 サスアーム ピン ボール Arm spacer Sus-arm pin ball はめ込む Put in. このページで使用するパーツ ドライブカップに嵌め込む。 Parts used on this page Put into the drive cup. 袋 #9 の内容 Bag #9 Contents ドライブカップに嵌め込む。...
Page 14
13. フロント & リヤ ショックの組み立て 4 セット作ります。 Assemble 4 Sets . ③ Front&Rear shock assembly YS-S9MA このページで使用するパーツ ピストン Parts used on this page Piston RS-S4S ZC-410A ② YS-450B ショックシリンダー E リング・2mm ショックオイル #450 ×1 Shock cylinder E-ring Shock oil ① 袋 #10 の内容 YS-S4AJMA アジャストナット Bag #10 Contents Adjust nut RS-S5S YS-S9MA ショック シャフト ピストン ×4 Shock shaft Piston RS-S5S ショック シャフト ×4 Shock shaft O リングにキズをつけない...
Page 15
14. フロント & リヤ ショックの取付け ZC-BH318A M3x18 ボタンヘッド Front&Rear shock installation BHS Screw ●Front side● RS-8B ショック キャップ アダプター Shock cap adapter ZC-N3LA M3 ナイロン ロック ナット M3 Nylon lock nut ZC-BH315A M3x15 ボタンヘッド BHS Screw このページで使用するパーツ 左側も同様に取り付けます。 Install the left side in the Parts used on this page same manner. ●Rear side● 袋 #10 の内容 RS-8B Bag #10 Contents ショック キャップ アダプター Shock cap adapter ZC-BH318A M3x18 ボタンヘッド BHS Screw ZC-N3LA RS-8B M3 ナイロン ロック ナット ショック キャップ アダプター ×4 M3 Nylon lock nut Shock cap adapter ZC-N3LA M3 ナイロン ロック ナット ×4...
Page 16
16. バンパー、ボディポストの取付け Bumper,Body post installation B9-016A ●Front side● ZC-F315A ボディ ポスト シーソー M3x15 サラビス Body post seesaw FHS Screw B9-001FA フロント フォーム バンパー Front foam bumper B9-001A フロント バンパー 右側も同様に取り付けます。 ブレース Install the right side in Front bumper the same manner. brace ① このページで使用するパーツ Parts used on this page 袋 #11 の内容 Bag #11 Contents B9-001FA フロント フォーム バンパー ×1 Front foam bumper B9-001A フロント バンパー ブレース ×1 Front bumper brace ② B9-016A ボディ ポスト シーソー ×4 Body post seesaw RC-313MA B9-016A フードピン...
Page 17
17. バッテリーホルダーの取付け RS-118-1 Battery holder installation バッテリープレート キャップ Battery plate cap ZC-SS316 M3x16 セットスクリュー ZC-SS316 Set screw M3x16 セットスクリュー Set screw RS-118-1 RS-118-1 バッテリーホルダー RS-118-1 バッテリープレート L Battery holder バッテリーホルダー Battery plate Battery holder ZC-F38A M3x8 サラビス FHS Screw RS-118-1 バッテリープレート S ●ショート サイズ バッテリー● Battery plate Short size battery このページで使用するパーツ Parts used on this page 袋 #12 の内容 Bag #12 Contents RS-118-1 バッテリーホルダー ×2 Battery holder RS-118-1 取付け位置を変えることでショートサイズバッテリー...
Page 18
18. モーターの取付け ブラシレス モーター Motor installatio Brushless motor 別途ご用意下さい。 Sold separately. このページで使用するパーツ Parts used on this page 袋 #13 の内容 Bag #13 Contents BM-4830A ピニオン ギヤ 30T ×1 Pinion gear ZC-SS33A M3x3 セットスクリュー ×1 Set screw ZC-BH38-A M3x8 ボタンヘッド ×2 ZC-BH38-A BHS Screw 仮止程度に。 M3x8 ボタンヘッド Lightly tighten. BHS Screw ピニオンギヤの取り付けはモーターシャフトの D カット されている部分に ピニオンギヤをモーターに取り付けた後、スパーギヤの位置に合うようにピニオンギヤの位置を セットスクリューが当たる様、 しっかりと締め込んで下さい。 合わせてモーターマウントに取り付けて下さい。 Install the pinion so that the set screw is tightened onto the flat After attaching the pinion gear to the motor, align the pinion gear so that it portion of the motor shaft. matches the position of the spur gear, and then attach it to the center mount.
Page 19
20. タイヤの取付け 反対側も対称に組立てます ●Front side● ●Rear side● Assemble each side in the same manner. Tires installatio このページで使用する パーツ ピン溝にはめ込む。 Parts used on this Attach to the pin groove. page ② 袋 #13 の内容 ② RS-011H Bag #13 Contents ホイルハブ ピン溝にはめ込む。 Wheel hub Attach to the pin groove. ① RS-011H ① ホイルハブ ×4 SD-011A Wheel hub ホイルハブ ピン Wheel hub pin SD-011A SD-011A ホイルハブ ピン ホイルハブ ピン ×4 Wheel hub pin Wheel hub pin ...
