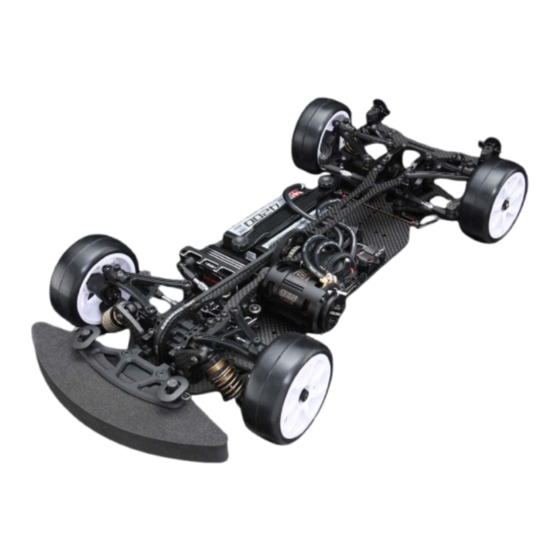

Summary of Contents for Yokomo MASTER SPEED MS 1.0 FWD
Page 2
走行してして下さい。 ① スピー ドコン トローラのスイッチをOFFにします。 ② バッテリーの接続を外します。 ③ 送信機のスイッチをOFFにし、 アンテナを縮めます。 Thank you for purchasing this Yokomo product. This high performance competition kit has been proudly manufactured by Yokomo - World Champion R/C car manufacturer. Proper assembly of this product will provide fun, safe enjoyment. PRECAUTIONS FOR SAFE ENJOYMENT OF YOUR R/C CAR For children under the age of 13, parental guidance is recommended when running. ■ ASSEMBLY PRECAUTIONS ■ ■ PRECAUTIONS BEFORE RUNNING ■ ■ BATTERY USAGE ■ ● Do not assemble around small children. The ● Yokomo R/C cars are built for competition use, and (Carefully read the instruction included with the batteries) parts can be dangerous if accidentally some models may exceed speeds of 40km per hour. ● When charging batteries, make sure that the swallowed. Practice common sense and run the car in open safe surrounding area is void of anything highly flammable. places, or R/C car tracks. ● Check the contents carefully before Also avoid charging in high-temperature locations. assembly. Please contact Customer Support ● Do not run the car on public roads with high amounts ...
Page 4
1. ギヤデフの組立て Gear Diff Assembly V ミゾ V-Line B9-501GSA デフドライブ カップ Diff Drive Cup B10-500GMA デフシム (L) Diff Shim (L) ブラックグリス このページで使用するパーツ B9-503GHA Parts used on this page デフプーリー B10-501OA Diff Pulley CS-BGA デフ O リング ブラックグリス ×1 Diff O-Ring Black Grease 袋 #1 の内容 Bag #1 Contents B10-500GMA デフピン ヘコミ ヘコミ V ミゾ Diff Pin Dent Dent V-Line ①...
Page 5
2. ギヤデフの組立て Gear Diff Assembly B10-500GMA ケースリング B9-503GPA Case Ring クロスピン Cross Pin B9-503GSA B9-503GPA デフシム (S) デフギヤ (S) Diff Shim (S) Diff Gear (S) B10-500GMA ケースリング Case Ring このページで使用するパーツ Parts used on this page CS-7500B オイル量の基準は 1.5g。 ギヤデフオイル #7500 ×1 クロスピンが隠れるまで Gear Diff Oil CS-7500B 入れる。 ギヤデフオイル #7500 Reference amount of Gear Diff Oil oil is 1.5g. Oil is put in until a pin 袋 #1 の内容 hides. Bag #1 Contents ZC-F28TPHA M2x8 サラタッピングビス ...
Page 6
B10-630MA 3. プーリーの組立て ドライブプーリーハウジング Pulley Assembly Drive Pulley Housing 向きに注意 Pay attention to the direction of はめ込む。 the part. Put in. SG-A64100A スパーギヤ 100T Spur Gear このページで使用するパーツ Parts used on this page B10-630OA 袋 #2 の内容 ドライブプーリーハブ Drive Pulley Hub Bag #2 Contents B10-630CA C クリップ C-Clip B10-630OA ドライブプーリーハブ ×1 Drive Pulley Hub B10-630MA ドライブプーリーハウジング ×1 Drive Pulley Housing SG-A64100A スパーギヤ 100T ×1 ZC-S100SA Spur Gear φ10mm/0.2mm シム Shim ZC-S100SA φ10mm/0.2mm シム ×1...
Page 7
4. メインシャシーの組立て 注意!ー各バルクヘッドには向きがありますので MS-32RLB 取付には注意して下さい。 リヤロアバルクヘッド (B) Main Chassis Assembly Important! ー Please pay attention to the direction Rear Lower Bulkhead (B) of the bulkheads when installing. このページで使用するパーツ 溝が双方、内側になるように取り付けて下さい。 Parts used on this page Please install so that both grooves are on the inside. 袋 #13 の内容 MS-32RLA リヤロアバルクヘッド (A) Bag #13 Contents Rear Lower Bulkhead (A) MS-32FLB フロントロアバルクヘッド (B) Front Lower Bulkhead (B) MS-002F メインシャシー ×1 Main Chassis 袋 #3 の内容 Bag #3 Contents MS-32FLA フロントロアバルクヘッド (A) Front Lower Bulkhead (A) MS-32FLA フロントロアバルクヘッド...
Page 8
5. ギヤデフ、センターマウントの取付け プーリー Gear Diff,Center Mount Installation Pulley このページで使用するパーツ Parts used on this page センターマウント Center Mount 袋 #4 の内容 Bag #4 Contents BD-BTCSA カムスプリング ×2 Cam Spring BD-BTCSA デフボール Diff Ball BD-BTCSA デフボール ×2 Diff Ball BD-BTCSA カムスプリング Cam Spring MS-32FUA フロントアッパーバルクヘッド (A)×1 Front Upper Bulkhead (A) MS-32FUB フロントアッパーバルクヘッド (B)×1 Front Upper Bulkhead (B) ZC-F36-A M3x6 サラビス FHS Screw BD-309LA ドライブベルト ×1 Drive Belt ZC-F36-A M3x6 サラビス...
Page 9
6. ベルトテンション調整 ベルトの張り調整を行う場合は、アッパーバルクヘッドのビスを軽く緩め、イラストの様に ベルト調整カムのミゾを利用すれば簡単に行う事ができます。 Belt Tension Adjustment ( 必ず左右対称で同じカム位置に合わせてください。) To adjust belt tension,slightly loosen the upper bulkhead cap screws, and reposition the cams as shown in the illustration. (Make sure that the left and right cams are adjusted to the same position.) ゆるむ Loosen はる Tighten 2mm レンチ等で調整して下さい。 2mm Allen wrench. 7. センターポスト、リヤアッパーバルクヘッドの取付け B8-206MHA Center Post,Rear Upper Bulkhead Installation ロッドエンドボール M Ball Stud M ZC-A3630BA このページで使用するパーツ 3mm アルミスペーサー ・ 黒 ZC-A3625BA Parts used on this page 3mm Aluminum Spacer ・ 2.5mm アルミスペーサー ・ 黒 Black 2.5mm Aluminum Spacer ...
Page 10
8. ショックタワーの取付け Shock Tower Installation ●FRONT● MS-017 フロントショックタワー このページで使用するパーツ Front Shock Tower Parts used on this page 袋 #4 の内容 Bag #4 Contents MS-017 フロントショックタワー ×2 Front Shock Tower MS-018 リヤショックタワー ×1 Rear Shock Tower ZC-BH36-A M3x6 ボタンヘッド BHS Screw B12-018L リヤショックタワー マウント L ×1 Rear Shock Tower Mount Left ●REAR● B12-018R リヤショックタワー マウント R ×1 ZC-BH36-A Rear Shock Tower Mount Right M3x6 ボタンヘッド BHS Screw ZC-BH312A ZC-SS310A M3x12 ボタンヘッド M3x10 セットスクリュー ×2 BHS Screw Set Screw MS-018 リヤショックタワー...
Page 11
9. サスアームの組立て ZC-BH26A R 側も対称に組立てます。 ●FRONT● M2x6 ボタンヘッド Assemble each side in the Suspension Arm Assembly BHS Screw same manner . B11-008A フロントショックマウント R B11-008A Front Shock Mount R フロントショック マウント L Front Shock このページで使用するパーツ Mount L 溝にはめ込む Parts used on this page Attach to the groove. 3.5mm 程度出す Extend about 3.5mm. ZC-411A E リング・4mm 袋 #5 の内容 はめ込む E-ring Put in. Bag #5 Contents MS-009S MS-412SB サスボール キャップ スタビジョイントボール スペーサー 1mm Stabi Joint Ball Sus Ball Cap ...
Page 12
10. サスアームの取付け Suspension Arm Installation ●FRONT● ZC-A3820BA 2mm アルミスペーサー ・ 黒 2mm Aluminum Spacer ・ Black このページで使用するパーツ Parts used on this page 袋 #5 の内容 Bag #5 Contents ZC-A3820BA 2mm アルミスペーサー ・ 黒 ×8 2mm Aluminum Spacer ・ Black ZC-F38A M3x8 サラビス ×8 FHS Screw ●REAR● ZC-A3820BA 2mm アルミスペーサー ・ 黒 2mm Aluminum Spacer ・ Black ZC-F38A M3x8 サラビス FHS Screw ZC-A3820BA 2mm アルミスペーサー ...
Page 13
② ① 12. スタビの取付け B9-412REA はめ込む スタビエンド (A) Put in. Stabilizer Installation しめる スタビが動く様に Stabilizer End A Tighten しめて下さい。 ●FRONT● Tighten so that ZC-F36-A the stabilizer M3x6 サラビス moves. FHS Screw 左右対称に合わせる。 B9-412REA 向きに注意 Match symmetrically. スタビエンド (A) Pay attention Stabilizer End A to the direction of the part. ZC-F36-A M3x6 サラビス B11-412OA FHS Screw O リング (φ1) O-ring 間に入れる Put in between. はめ込む...
Page 14
13. フロントハブキャリアの組立て 2 セット作ります。 ネジロック剤 &D カットに当てる。 Assemble 2 Sets . Use screw lock adhesive. Front Hub Carrier Assembly Contact the D-cut surface. B11-010TWA B11-010TWA 2mm ジョイントピン M3x2 セットスクリュー B9-500DPA Joint Pin Set Screw ジョイントプロテクター Joint Protector D カット D カット D-Cut D-Cut B11-010BWA ブラックグリス フロントボーン Front Bone ブラックグリス B11-010TWA このページで使用するパーツ ジョイント Parts used on this page Joint CS-BGA ブラックグリス ブラックグリス ×1 Black Grease ネジロック剤...
Page 15
14. リヤハブキャリアの組立て 2 セット作ります。 Assemble 2 Sets . Rear Hub Carrier Assembly B10-010RAA リヤアクスル Rear Axle このページで使用するパーツ Parts used on this page B9-415SGA ステアリングブロック CS-BGA Steering Block ブラックグリス ×1 Black Grease BB-1050PA 5x10 ベアリング BB-1050PA Bearing 5x10 ベアリング 袋 #5 の内容 Bearing Bag #5 Contents B11-B50A サスボール 5mm ×2 Sus Ball 袋 #7 の内容 Bag #7 Contents ZC-C25NA M2x5 キャップスクリュー Cap Screw ピン溝にはめ込む B10-010RAA リヤアクスル ×2 Attach to the pin groove.
Page 16
15. フロント ハブキャリアの取付け 反対側も対称に組立てます Front Hub Carrier Installation Assemble each side in the same manner. フロントハブキャリア (R) 注意!ー①ドライブカップスリットには必ず Front Hub Carrier (R) ( ブラックグリス ) を塗る様に して下さい。 Important! ー①Always apply black grease to the drive cup. ドライブカップスリット Drive Cup Slit ダイレクト用 Direct ジョイントプロテクター用 Joint Protector このページで使用するパーツ Parts used on this page ドライブカップに嵌め込む。 Put into the drive cup. 袋 #5 の内容 フロントハブキャリア (L) Bag #5 Contents Front Hub Carrier (L) ドライブカップ Drive Cup MS-009S ZC-411A サスボール キャップ ...
Page 17
16. リヤ ハブキャリアの取付け 反対側も対称に組立てます リヤ ハブキャリア (L) Rear Hub Carrier Installation Assemble each side in the same manner. Rear Hub Carrier (L) リヤ ハブキャリア (R) 注意!ー①ドライブカップスリットには必ず Rear Hub Carrier (R) ( ブラックグリス ) を塗る様に して下さい。 Important! ー①Always apply black grease to the drive cup. ドライブカップスリット Drive Cup Slit ダイレクト用 Direct ① はめ込む Put in. ジョイントプロテクター用 Joint Protector このページで使用するパーツ ② Parts used on this page 袋 #5 の内容 Bag #5 Contents ZC-411A E リング・4mm x2 E-ring MS-009S MS-009S...
Page 18
17. ステアリングロッド , ベルクランクの組立て B9-TB39AA 2 セット作ります。 39mm ターンバックル Assemble 2 Sets . Steering Rod,Bell Crank Assembly 39mm Turnbuckle ボールエンドキャップ Ball Cup このページで使用するパーツ 片側が逆ネジになっています。 B9-207A 26mm B9-207A Parts used on this page One side of the turnbuckle is ボールエンドキャップ ボールエンドキャップ reverse threaded. ターンバックル Ball Cup Ball Cup Turnbuckle B9-TB30AA 袋 #7 の内容 1 セット作ります。 30mm ターンバックル Assemble 1 Set. Bag #7 Contents 30mm Turnbuckle ボールエンドキャップ ...
注意!ーキット同封の鉄ビスや RP の切削チタンビスを 18. サーボの取付け 使用してしっかりと固定して下さい。 Important! ー Please firmly fix with the steel Servo Installation screws and RP titanium screws included bundle. 別途ご用意下さい。 B10-203FA Sold separately. サーボマウント ロープロサーボ Servo Mount Low Profiled Servo ZC-M3DWA サラワッシャー Rosette Washer ZC-F38A M3x8 サラビス ZC-M3DWA FHS Screw サラワッシャー Rosette Washer 向きに注意 Pay attention to the direction of the part. 10° サーボのニュートラルを出した後、 サーボホーンを 10 度ずらして下さい。 As shown in the illustration,center the servo,and attach the servo horn,offset by 10 degrees. ZC-F36-A M3x6 サラビス...
Page 20
サーボの取付け、続き Servo installation, continued はめ込む Put in. はめ込む Put in. 19. アッパーデッキの取付け Upper Deck Installation ZC-BH36-A M3x6 ボタンヘッド BHS Screw このページで使用するパーツ Parts used on this page 袋 #9 の内容 MS-003FF アッパーデッキ Bag #9 Contents Upper Deck MS-003FF ZC-BH36-A アッパーデッキ ×1 M3x6 ボタンヘッド Upper Deck BHS Screw ZC-BH36-A M3x6 ボタンヘッド ×8 BHS Screw...
Page 21
20. フロント & リヤ ショックの組み立て フロント用、リヤ用各 2 セットを作ります。 Assemble 2 front and 2 rear shocks. Front&Rear Shock Assembly ③ ② MS-S116 O リングにキズをつけないよう注意。 ピストン Try not to scratch the o-ring. このページで使用するパーツ Piston ZC-410A Parts used on this page E リング・2mm E-ring YS-450B S4-S3XA ショックオイル #450 ×1 X30 X リング (3.0mm) Shock Oil X ring ① MS-S2B シャフトガイド Shaft Guide 袋 #10 の内容 向きに注意 Bag #10 Contents Pay attention to the MS-S5S direction of the part.
Page 22
21. フロント & リヤ ショックの取付け Front&Rear Shock Installation ●FRONT● 反対側も同様に。 Some on the other side. フロント ショック Front Shock Assembly ZC-BH310A M3x10 ボタンヘッド BHS Screw ZC-A3615BA 1.5mm アルミスペーサー ・ 黒 ZC-A3615BA 1.5mm Aluminum Spacer ・ Black 1.5mm アルミスペーサー ・ 黒 1.5mm Aluminum Spacer ・ Black ZC-A3620BA 2mm アルミスペーサー ・ 黒 注意!ーボールの動きが渋い場合は フロント ショック 2mm Aluminum Spacer ・ Black ペンチ等で挟んで調整をし Front Shock Assembly て下さい。...
Page 23
バンパーの組立てのつづき ZC-F38A Bumper Assembly M3x8 サラビス FHS Screw B11-016H ボディ マウント シーソー Body Mount Seesaw ① ① ② このページで使用するパーツ Parts used on this page 袋 #11 の内容 Bag #11 Contents RC-313MA B11-016H RC-313MA フードピン ボディマウントシーソー ×2 フードピン ×2 Hood Pin Body Mount Seesaw Hood Pin ② ZC-F38A RC-313MA M3x8 サラビス ×2 フードピン FHS Screw Hood Pin B11-016H 23. リヤボディポストの取付け ボディ ポスト R ...
24. モーターの取付け ZC-BH36-A ドライブベルト M3x6 ボタンヘッド Drive Belt Motor Installation BHS Screw アッパーデッキ Upper Deck モーター Motor 別途ご用意下さい。 面取加工モーター推奨。 Sold separately. Edge trimming motor 注意! recommendation. モーター ①キットにはモーター、ピニオンギヤは含まれてお Motor りませんので、別途ご用意下さい。 ②ピニオンギヤの取り付けはモーターシャフトの D カット されている部分にセットスクリュー 平らな面 が当たる様、しっかりと締め込んで下さい。 Flat side ZC-SS33A ③バックラッシュは少し隙間が出来る程度に調整し M3x3 セットスクリュー て下さい。 Set Screw (調整不足はノイズ及びギヤ破損の原因になりま す。) ④連続走行はモーターに必要以上の負荷を掛けるだ けでなく寿命も短くなりますので完全に冷えた事...
Page 25
25. 受信機、スピードコントローラー、 バッテリーの取付け 受信機、スピードコントローラー ( 別途ご用意下さい。 ) Receiver,ESC,Battery Installatio Receiver and speed controller.(Sold separately.) サイズに合わせて 注意! カットします。 ①受信機、スピードコントローラーの固定は付属の両面テープ Cut to size. を使用し、シャーシにしっかりと固定して下さい。 (接着面をクリーナーなどで脱脂しておくと、はがれにくく ZC-203BA なります。) 両面テープ ②余ったアンテナ線は稼働部分に触れない様に注意して下さい。 Double -Sided Tape ③バッテリープレートは外れにくいよう固めにできています。 Important! 角型 Li-Po バッテリー ①Secure the receiver and speed controller to the (別途ご用意下さい。 ) chassis using double-sided tape. Square edge size Li-Po battery. (Cleaning the surface with motor spray will ensure (Sold separately.) better adhesion. ) ②Make sure to bundle any remaining antenna wire so that it does not interfere with the drivetrain. ③Battery plate is made to be hardened so as not to come off. ...
