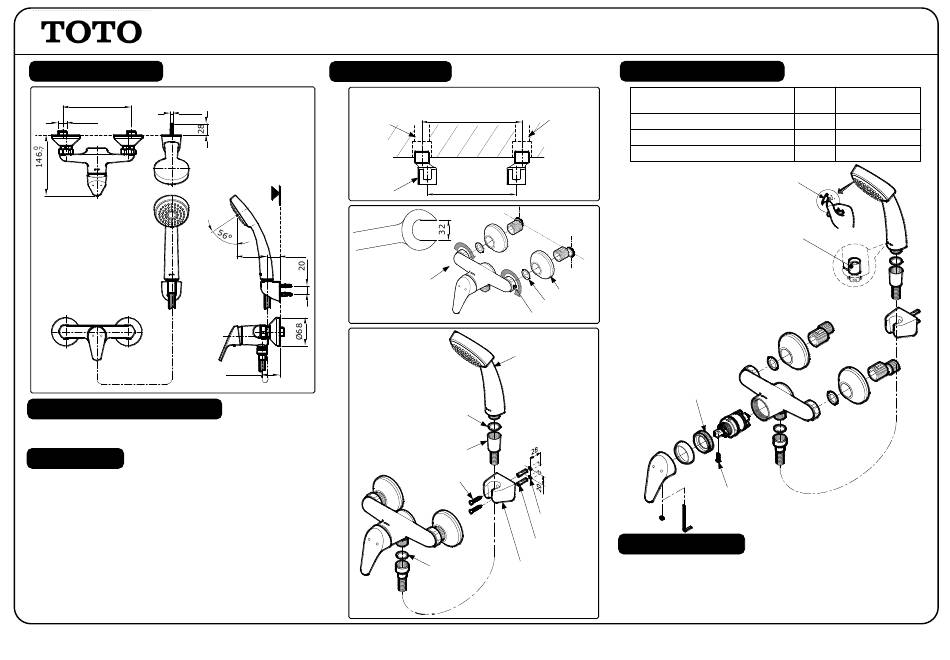

Toto EA TX474KEA Manual

SPECIFICATIONS
150±10
5.5
G½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
2. Flow Regulator should not be remove because it could
damage the system
3. As the product model is constantly updated, the actual
product may not look the same as it shown in the
diagram, but the basic installation principles are the same.
4. The hot water supply side of the faucets is in a condition
of high temperature. Do not allow skin to contact with the
hardware surface directly. Otherwise,
scalding may occur.
S060460S
INSTALLATION
1
MOUNT CONNECTORS PARALLEL WITH THE WALL
Hot
Water
Supply
WALL
Leg
2
74 30
Body
*Tig the n the nut b y wrench.
3
0
42.5
-7
Flexible Hose
"EA" SINGLE LEVER SHOWER SET TX474KEA
Cold
150±10
Water
Supply
150
Cover
Packing
Nut *
Hand Shower
Packing
Screw
2 X Ø5.5
Holes
Sleeve
Anchor
Hanger
Packing
TROUBLESHOOTING
CHECK
PROBLEM
Unsatisfactory spray
Water leaks around the handle
Handle is loose
1. NOZZLES
Flow Regulator Inside
(Don t remove)
2. CONNECTING
NUT
3. BOLT
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and are
not recommended for cleaning
SOLUTION
POINT
Clean
1
2 Tighten
3 Tighten
R3
