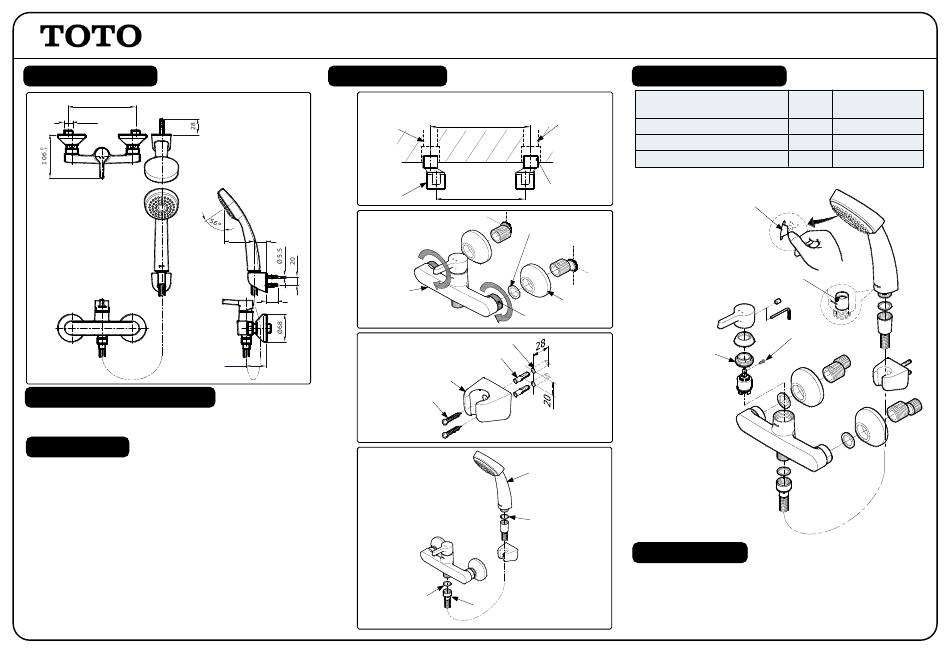

Toto PLANO TX474SPN Quick Start Manual

SPECIFICATIONS
150±10
G½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
Don t use abrasive cleaners or solvents on faucets and fittings.
1.
2. Flow Regulator should not be remove because it could damage
the system
3. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the basic
installation principles are the same.
4. The hot water supply side of the faucets is in a condition of high
temperature. Do not allow skin to contact with the hardware
surface directly. Otherwise,
scalding may occur.
S060159Z
"PLANO" SINGLE LEVER SHOWER SET TX474SPN
INSTALLATION
1
MOUNT CONNECTORS PARALLEL WITH THE WALL
Hot
Water
Supply
Leg
2
* Tighten the nut
74 30
Body
28
3
0
49
-7
Screw
4
Packing
Cold
150±10
Water
Supply
Use Seal tape
(Not Include)
150
Packing
Cover
Nut *
2 X Ø5.5 Holes
Sleeve Anchor
Hanger
Hand Shower
Packing
Flexible Hose
TROUBLESHOOTING
CHECK
PROBLEM
POINT
1
Unsatisfactory spray
Water leaks around the handle 2
Handle is loose 1. NOZZLES
3
1. NOZZLES
Flow Regulator Inside
(Don t remove)
3. BOLT
2. CONNECTING
NUT
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water. Wipe
entire surface completely dry with clean soft cloth. Many cleaners may
contain chemicals, such as ammonia, chlorine, toilet cleaner etc.
which could adversely affect the finish and are not recommended for
cleaning
SOLUTION
Clean
Tighten
Tighten
R11
