Toto EGO TX474SE Manual

SPECIFICATIONS
150±10
G½
TX 474 SEN
"Ego" Single Lever Shower Set
150±10
G½
79.5
G½
TX 474 SEV1
"Ego" Single Lever Shower Mixer w/o Hand Shower Set
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
S06223MN

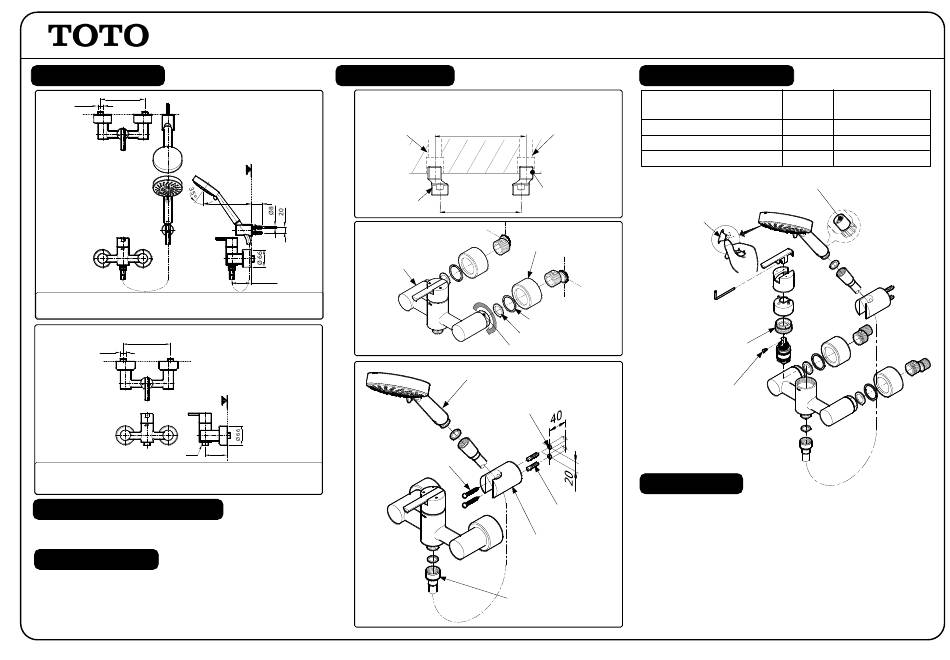

INSTALLATION
1
MOUNT CONNECTORS PARALLEL WITH
Hot
Water
Supply
WALL
175 40 Leg
2
Body
0
79.5
-7
*Tig the n the nut with wr ench
3
0
-7
"EGO" SINGLE LEVER SHOWER SET TX474SE
THE WALL
Cold
150±10
Water
Supply
Use Seal tape
(not i n clude)
150
Cover
O-Ring
Packing
Nut *
Hand Shower
2 X Ø 8
Holes
Screw
Sleeve
Anchor
Hanger
Flexible Hose
w/ Packing
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory spray 1
Water leaks around the handle
2
Handle is loose
3
Flow Regulator Inside
(Don t remove)
1. NOZZLES
2. CONNECTING NUT
3. BOLT
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
2. Flow Regulator should not be remove because it could
damage the system
3. As the product model is constantly updated, the actual
product may not look the same as it shown in the
diagram, but the basic installation principles are the same.
4. The hot water supply side of the faucets is in a condition
of high temperature. Do not allow skin to contact with the
hardware surface directly. Otherwise,
scalding may occur.
SOLUTION
Clean
Tighten
Tighten
R10
