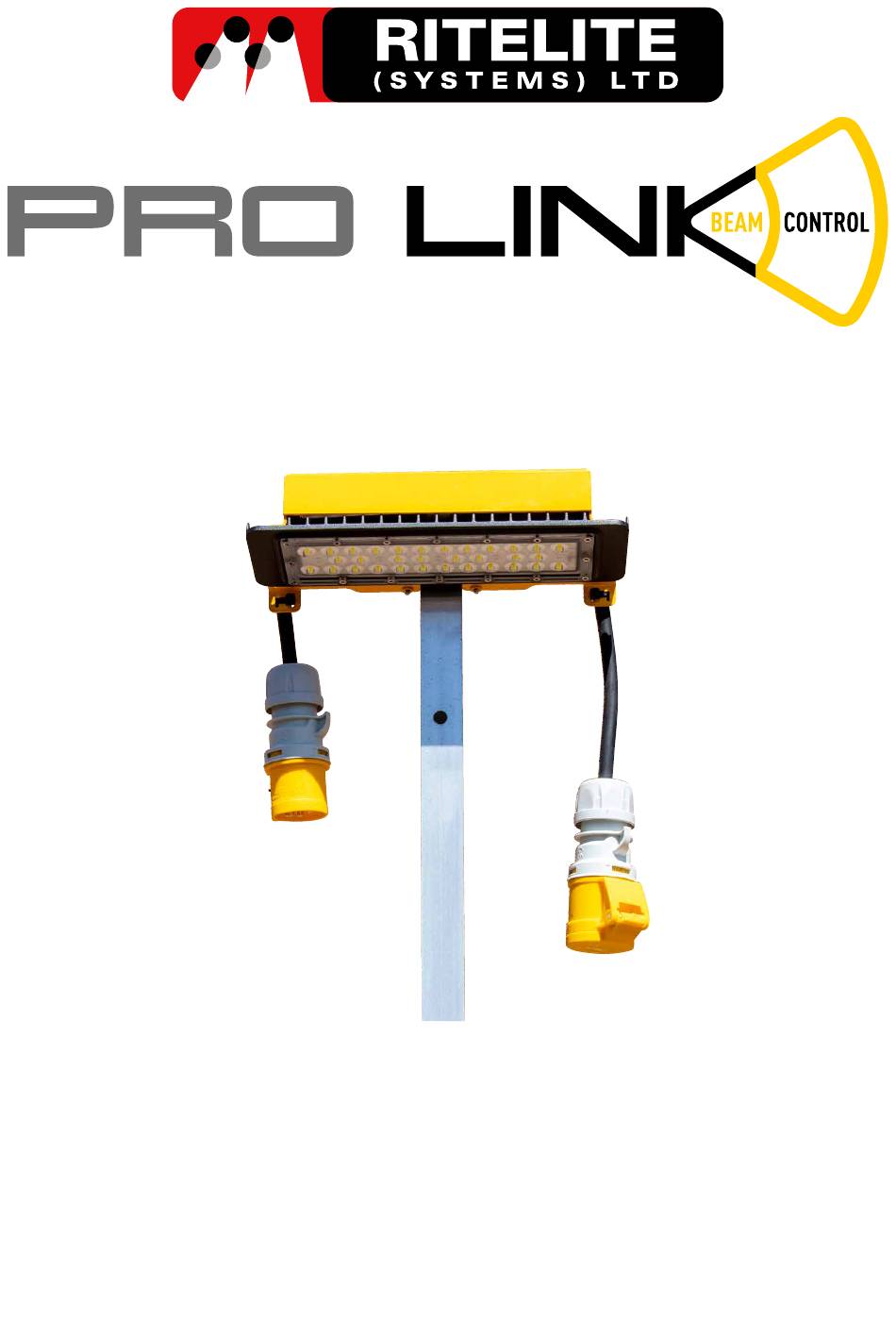

LED Linkable Flood Lighting System
Operator's Manual
This manual covers the PRO-LINK with the following product codes:
PLL15LB | PLL15LB/TYPE-F
The information contained in this manual is based on products manufactured up to the time of publication.
Ritelite (Systems) Ltd reserves the right to change any of this information without notice.
No part of this manual may be reproduced in any form or by any means, electronic or mechanical without express written
permission from Ritelite (Systems) Ltd.
Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid copyrights,
and violators will be prosecuted. We expressly reserve the right to make technical modifications, even without due notice,
which aim at improving our products or their safety standards.
Advertisement
Table of Contents
Related Manuals for Ritelite PRO LINK PLL15LB
Summary of Contents for Ritelite PRO LINK PLL15LB
- Page 1 Ritelite (Systems) Ltd. Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid copyrights, and violators will be prosecuted. We expressly reserve the right to make technical modifications, even without due notice,...
-
Page 2: Important Safety Instructions
This information can be found on your PRO-LINK’s product label on the top of the light head. You will be required to supply the products serial number when contacting Ritelite (Systems) Ltd or one of Ritelite’s approved dealers about parts and service. -
Page 3: Table Of Contents
CONTENTS SECTION TITLE PAGE NUMBER Section 1: Introduction & Applications for use Section 2 : Safety Rules Section 3: Technical Specifications Section 4: Setting up the PRO-LINK Section 5: Operating Instructions 5a) Pre-operation inspection 5b) Unit Stability Deployment Process 5c) Break Down Operation 5d) Packing Away &... -
Page 4: Section 1: Introduction & Applications For Use
The PRO-LINK Beam Control LED linkable flood light is designed for use in the following applications only. It should not be used for any other purpose. If in any doubt about applications for use please contact either Ritelite (Systems) Ltd or Ritelite (Systems) Ltd’s distributor for more information. •... -
Page 5: Section 2: Safety Rules
It is important that every user understands and observes the safety rules before setting up or using the PRO-LINK lighting system. The Manufacturer, Ritelite (Systems) Ltd cannot anticipate every possible circumstance that might involve a hazard. The warnings in this manual and on labels affixed to the PRO-LINK will therefore not cover every eventuality. -
Page 6: Fall Hazards
When using outdoor use portable luminaires, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following: Use only three-wire outdoor extension cables that have three-prong earthing plugs and earthing receptacles that accept the appliance’s plug. Residual Current Breaker with Over Current (RCBO) protection is to be provided on the circuits (s) or outlet (s) to be used for the wet location of the portable luminaire. -
Page 7: Electrocution Hazards
• Do not use the PRO-LINK on a moving or mobile surface or vehicle. • Avoid debris and uneven surfaces. • Do not use the PRO-LINK for any purpose other than that for which it is designed. ELECTROCUTION HAZARDS • Maintain safe distances away from electrical power lines in accordance with applicable governmental regulations. -
Page 8: Collision Hazards
COLLISION HAZARDS • Ensure the area around the product and above the product is clear of any possible obstructions before starting to set the PRO-LINK up. • Use common sense and planning when transporting the PRO-LINK on any incline or slope. •... -
Page 9: Section 3: Technical Specifications
Section 3: TECHNICAL SPECIFICATIONS WEIGHTS & DIMENSIONS Weight (Single light head): 1.5Kg Dimensions: 190mm (L) x 120mm (W) x 55mm (H) IP rating: IP65 ELECTRICAL Input 90-240V AC 50Hz Unity power factor 1.0 6000K daylight white Max 3,200 lumens per PRO-LINK Power requirement: 15W Mains input via 110V/240V plug as per customer requirements. -
Page 10: Section 4: Setting Up The Pro-Link
Section 4: SETTING UP THE PRO-LINK Inspect the proposed area for use. An inspection of the proposed area in which to set up the PRO-LINK is necessary to ensure it is suitable for safe operation. This inspection should be performed by the operator prior to moving the PRO-LINK into position. -
Page 11: Section 5: Operating Instructions
Maintenance and repairs can be executed only by authorised personnel. If any person maintaining or repairing the device is in any doubt, they should contact their dealer or Ritelite (Systems) Ltd. PRE-OPERATION INSPECTION Check the following parts or areas for any signs of damage or missing parts. -
Page 12: 5B) Unit Stability Deployment Process
5b) UNIT STABILITY DEPLOYMENT PROCESS It is recommended that for track lighting units are setup spaced 10 metres apart. The power supply is connected at one end, the units can then be linked together. It is recommended to use 2.5mm cable in 14m cable lengths. -
Page 13: 5C) Break Down Operation
5c) BREAKING DOWN OPERATION Breaking down the PRO-LINK to put it away is a reverse of the setting up operation. 1. Starting at the end furthest from the power source, lower the first mast. Lift the light head from the unit and disconnect the power. 2. -
Page 14: Section 6: Maintenance
The PRO-LINK can only be put back into use after it has been properly repaired and examined and signed off by authorised personnel. • The use of spares other than original parts from Ritelite (Systems) Ltd will invalidate any warranty. -
Page 15: Section 7: Accessories
Section 7: ACCESSORIES PRODUCT CODE DESCRIPTION PREVIEW LLM3M Aluminium extending 3m mast LLBB Stackable ballast base LLGS Ground spike for mast SE/110EL142 110V 14m extension lead SE/220EL142 240V 14m extension lead PLL30LB-DHA Twin light head adaptor... -
Page 16: Disclaimer Of Warranty
ADVICE ON DISPOSAL OF RITELITE PRODUCTS AT END OF LIFE For our latest advice on the disposal of Ritelite products at end of life please visit the link below. https://www.ritelite.co.uk/disposal-advice DISCLAIMER OF WARRANTY For details about the warranty offered on Ritelite products please visit the link below.
