Ritelite K45 360 Lite Operator's Manual

Rapid deployment lightweight mobile lighting system
Hide thumbs Also See for K45 360 Lite:
Table of Contents

Advertisement

Quick Links

Download this manual

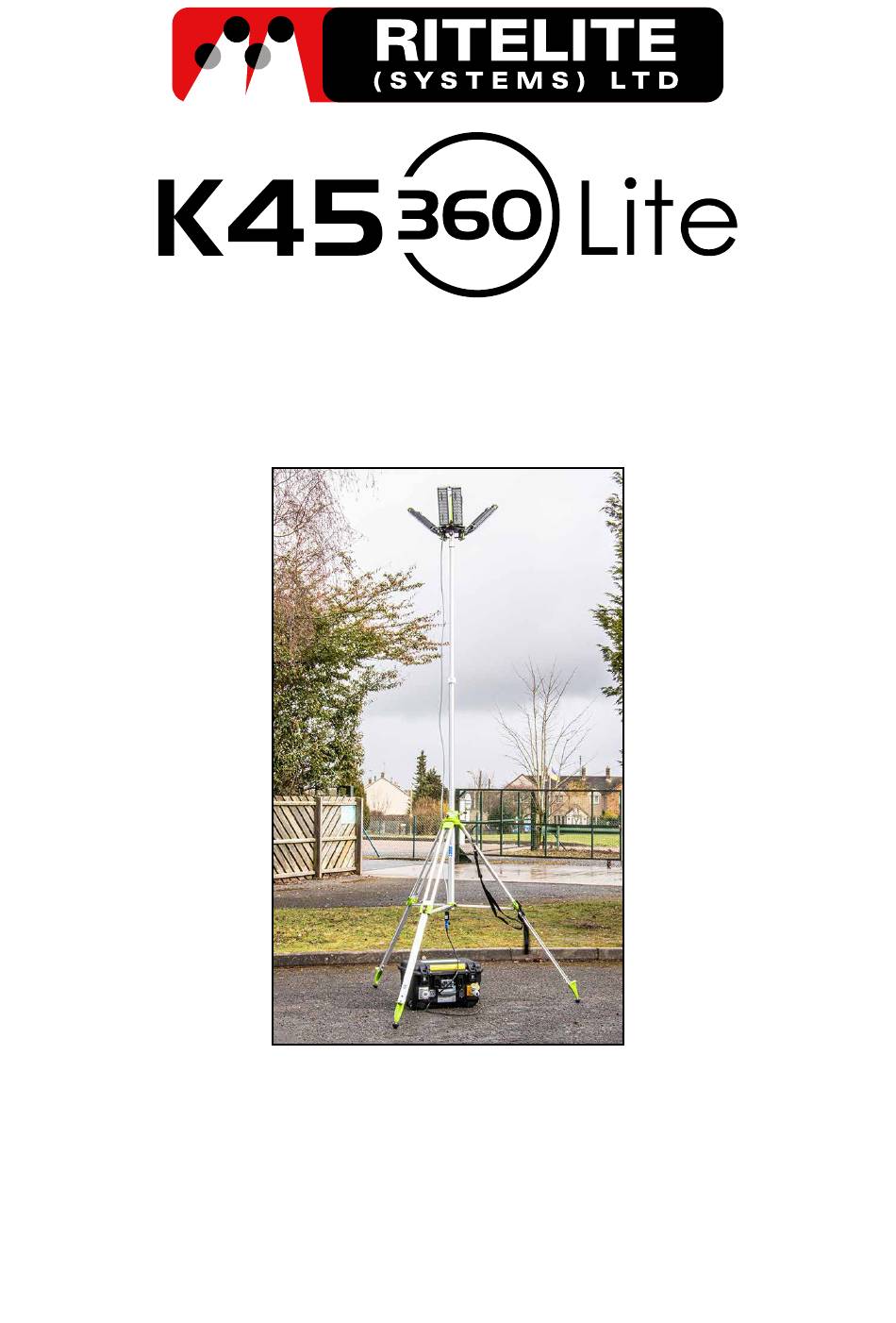

Rapid Deployment Lightweight Mobile Lighting System
Operator's Manual
This manual covers the K45-LITE with the following product codes:
SLK45-LITE | SLK45-ULTRA-LITE | SLK45LED-LITE-S | SLK45LED-LITE-S-ID
The information contained in this manual is based on products manufactured up to the time of publication.
Ritelite (Systems) Ltd reserves the right to change any of this information without notice.
No part of this manual may be reproduced in any form or by any means, electronic or mechanical without express written
permission from Ritelite (Systems) Ltd.
Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid copyrights,
and violators will be prosecuted. We expressly reserve the right to make technical modifications, even without due notice,
which aim at improving our products or their safety standards.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K45 360 Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Ritelite K45 360 Lite

Summary of Contents for Ritelite K45 360 Lite

  • Page 1 Ritelite (Systems) Ltd. Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid copyrights, and violators will be prosecuted. We expressly reserve the right to make technical modifications, even without due notice,...
  • Page 2 UNIT SERIAL NUMBER This information can be found on your K45-LITE’s product label on the LED driver. You will be required to supply the products serial number when contacting Ritelite (Systems) Ltd or one of Ritelite’s approved dealers about parts and service.

  • Page 3: Table Of Contents

    CONTENTS SECTION TITLE PAGE NUMBER Section 1: Introduction & Applications for use Section 2 : Safety Rules Section 3: Technical Specifications Section 4: Safety and Operating Labels Section 5: Setting up the K45-LITE Section 6: Operating Instructions 6a) Pre-operation inspection 6b) Unit Stability Deployment Process 6c) Break Down Operation 6d) Packing Away &...

  • Page 4: Section 1: Introduction & Applications For Use

    The K45-LITE mobile lighting system is designed for use in the following applications only. It should not be used for any other purpose. If in any doubt about applications for use please contact either Ritelite (Systems) Ltd or Ritelite (Systems) Ltd’s distributor for more information.

  • Page 5: Section 2: Safety Rules

    It is important that every user understands and observes the safety rules before setting up or using the K45-LITE lighting system. The Manufacturer, Ritelite (Systems) Ltd cannot anticipate every possible circumstance that might involve a hazard. The warnings in this manual and on labels affixed to the K45-LITE will therefore not cover every eventuality.
  • Page 6 When using outdoor use portable luminaires, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following: Use only three-wire outdoor extension cables that have three-prong earthing plugs and earthing receptacles that accept the appliance’s plug. Residual Current Breaker with Over Current (RCBO) protection is to be provided on the circuits (s) or outlet (s) to be used for the wet location of the portable luminaire.
  • Page 7 • Do not use the K45-LITE on a moving or mobile surface or vehicle. • Avoid debris and uneven surfaces when rolling a K45-LITE with the legs folded up. • Do not use the K45-LITE for any purpose other than that for which it is designed. ELECTROCUTION HAZARDS •...
  • Page 8 COLLISION HAZARDS • Ensure the area around the product and above the product is clear of any possible obstructions before starting to set the K45-LITE up. • Use common sense and planning when transporting the K45-LITE on any incline or slope. •...

  • Page 9: Section 3: Technical Specifications

    Section 3: TECHNICAL SPECIFICATIONS K45-LITE WEIGHTS / DIMENSIONS SLK45LED-LITE-S Weight: 14Kg Dimensions: 300 x 300 x 440mm SLK45LED-LITE-S-ID Weight: 14Kg Dimensions: 300 x 300 x 440mm SLK45-ULTRA-LITE Weight: 9Kg Dimensions: 300 x 300 x 440mm SLK45LED-LITE (INCLUDES EXTERNAL LED DRIVER Light head weight: 9.44Kg BOX) Dimensions: 300 x 300 x 440mm...

  • Page 10: Section 4: Safety And Operating Labels

    Section 4: SAFETY AND OPERATING LABELS LABEL POSITIONS External LED driver only required for SLK45LED-LITE REF. DESCRIPTION QUANTITY Instructions, light head technical spec (for integral LED driver only) Instructions, light head technical spec (for separate LED driver only) Light head locking knob Hot warning Dimmer control label (only for units with integral driver fitted to head)

  • Page 11: Section 5: Setting Up The K45-Lite

    Section 5: SETTING UP THE K45-LITE Inspect the proposed area for use. An inspection of the proposed area in which to set up the K45 360 is necessary to ensure it is suitable for safe operation. This inspection should be performed by the operator prior to moving the K45-LITE into position.

  • Page 12: Section 6: Operating Instructions

    Maintenance and repairs can be executed only by authorised personnel. If any person maintaining or repairing the device is in any doubt, they should contact their dealer or Ritelite (Systems) Ltd. PRE-OPERATION INSPECTION Check the following parts or areas for any signs of damage or missing parts.

  • Page 13: 6B) Unit Stability Deployment Process

    6b) UNIT STABILITY DEPLOYMENT PROCESS 1. Place light heads on top of spigot . 2. Unwind light head cable from its storage by lightly pulling on the cable which should rotate the light heads on the spigot aiding unwinding of the cable. 3.
  • Page 14 The unique multi-functional friction supported system allows for a 360 deg even spread of light through to a single point direction with a 60 deg horizontal and vertical projection. 360 Degree Area Lighting Directional Area Lighting For applications where multi-directional For industrial lighting.
  • Page 15 SLK45-LITE-S, SLK45-LITE-S-ID and SLK45-ULTRA-LITE models with integral LED driver, connect the cable as detailed below. For the SLK45-LITE model with separate LED driver box please continue from page 16. 5. If the light head has a separate in-line dimmer, 6. Connect the mains input lead to the power. connect the power adaptor to the socket by Observe the local voltage is correct to match the pushing in and twisting.
  • Page 16 For the SLK45-LITE model with separate LED driver box, connect the cables as detailed below. 8. Connect the plug from the light heads to the LED 9. Adjust the brightness control knob on the LED driver and make sure it is tightened and secure. driver to vary the light output as required.

  • Page 17: 6C) Break Down Operation

    6c) BREAKING DOWN OPERATION Breaking down the K45-LITE to put it away is a reverse of the setting up operation. 1. Switch off power to the K45-LITE and disconnect 2. If the light head has a separate in-line dimmer, the main cable. If a tripod has been used lower fully disconnect the power adapter.

  • Page 18: 6D) Packing Away & Transport

    5. Lift the light heads off and put them straight 8. If unit has a separate LED driver (SLK45-LITE), close into their supplied protective storage bag with the the rubber cover back over the mains input socket handle end upwards. If part of the kit (SLK45-LITE) to protect it from unwanted debris ingress, close the place the mains input cable from the driver into the lid on the case and make sure the two latches are...

  • Page 19: Section 7: Maintenance

    The use of spares other than original parts from Ritelite (Systems) Ltd will invalidate any warranty. ADVICE ON DISPOSAL OF RITELITE PRODUCTS AT END OF LIFE For our latest advice on the disposal of Ritelite products at end of life please visit the link below. https://www.ritelite.co.uk/disposal-advice DISCLAIMER OF WARRANTY For details about the warranty offered on Ritelite products please visit the link below.

  • Page 20: Section 8: Optional Extras

    Section 8: OPTIONAL EXTRAS PRODUCT CODE DESCRIPTION PREVIEW SLK45-LITE/TRP/4M All terrain tripod. Maximum height 4m SLK45-LITE/TRP/IN Indoor tripod. Maximum height 3m SLK45-LITE/BB Tripod ballast bags. Sold as a pack of three, add your own ballast. SE/110EL142 110V 14m extension lead SE/220EL142 240V 14m extension lead...

  • Page 21: Section 9: Spare Parts

    Section 9: SPARE PARTS PRODUCT CODE DESCRIPTION PREVIEW SLK45-LITE-S-SP01 Lens array SLK45-LITE-S-SP02 Dimming control module SLK45-LITE-S-SP03 Mains cable 110V 5.5m with 16A plug SLK45-LITE-S-SP04 Mounting spigot with locking pin and knob SLK45-LITE-S-SP05 Cable storage brackets SLK45-LITE-S-SP06 Connection box with glands SLK45-LITE-S-SP07 LED module interconnecting cable set...
  • Page 22 PRODUCT CODE DESCRIPTION PREVIEW SLK45-LITE-S-SP08 LED light PCB SLK45-LITE-S-SP09 Lifting handle with driver mounting plate SLK45-LITE-S-SP10 600W LED driver...
  • Page 23 ADVICE ON DISPOSAL OF RITELITE PRODUCTS AT END OF LIFE For our latest advice on the disposal of Ritelite products at end of life please visit the link below. https://www.ritelite.co.uk/disposal-advice DISCLAIMER OF WARRANTY For details about the warranty offered on Ritelite products please visit the link below.
