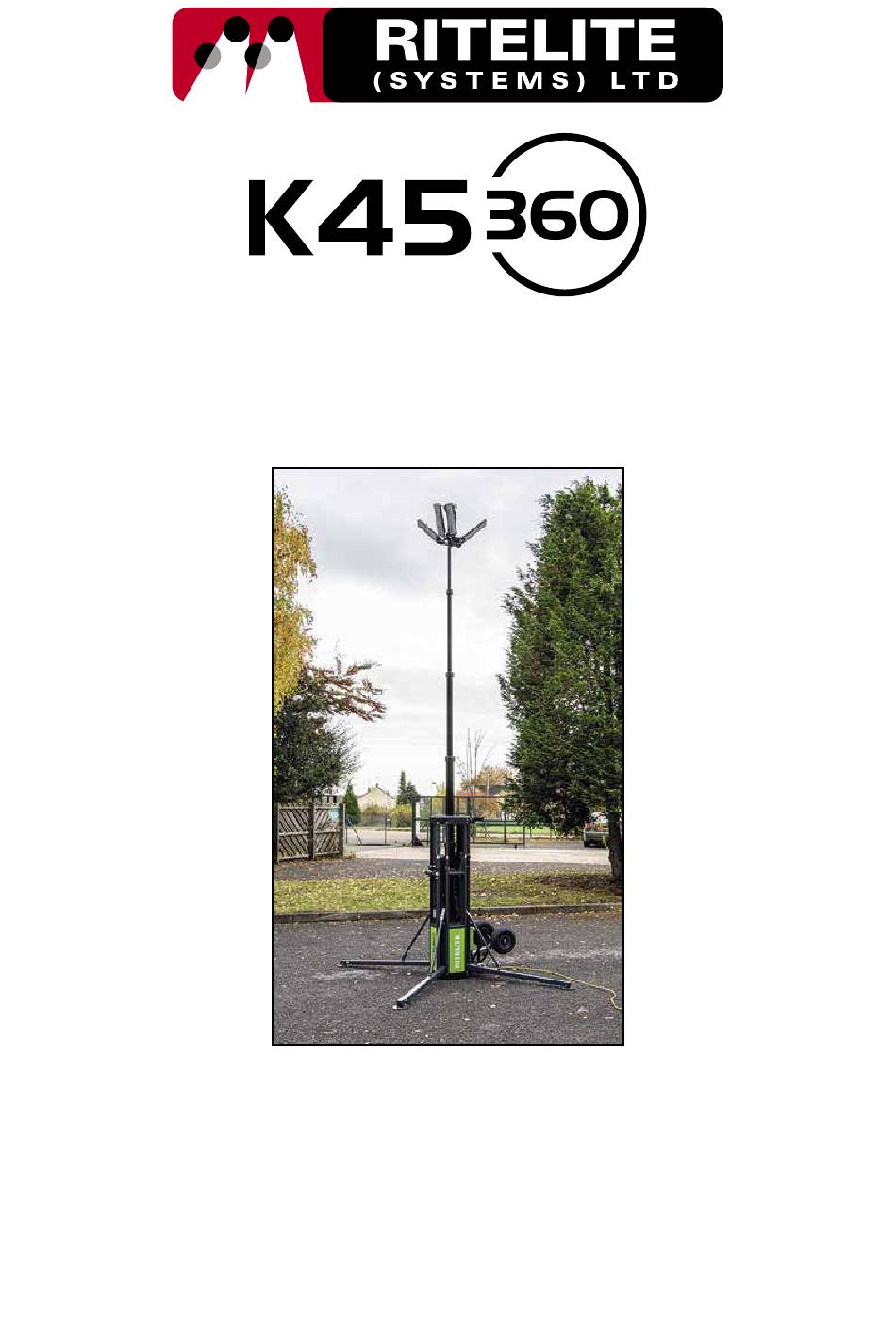

Rapid Deployment Mobile Lighting System
Operator's Manual
This manual covers the K45 360 with the following product codes:
SLK45LED | SLK45LED/110V
The information contained in this manual is based on products manufactured up to the time of publication.
Ritelite (Systems) Ltd reserves the right to change any of this information without notice.
No part of this manual may be reproduced in any form or by any means, electronic or mechanical without express
written permission from Ritelite (Systems) Ltd.
Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid
copyrights, and violators will be prosecuted. We expressly reserve the right to make technical modifications, even
without due notice, which aim at improving our products or their safety standards.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K45 360 and is the answer not in the manual?

Questions and answers

Related Manuals for Ritelite K45 360

Summary of Contents for Ritelite K45 360

  • Page 1 No part of this manual may be reproduced in any form or by any means, electronic or mechanical without express written permission from Ritelite (Systems) Ltd. Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid copyrights, and violators will be prosecuted. We expressly reserve the right to make technical modifications, even...
  • Page 2 Use this page to record important information about your K45 360. UNIT PRODUCT REFERENCE UNIT SERIAL NUMBER This information can be found on your K45 360’s data plate which is found below the main control panel. NOTE: Below is an example of the K45 360 data plate.

  • Page 3: Table Of Contents

    Section 1: Introduction & Applications for use Section 2 : Safety Rules Section 3: Technical Specifications Section 4: Safety and Operating Labels Section 5: Setting up the K45 360 Section 6: Operating Instructions 6a) Pre-operation inspection 6b) Unit Stability Deployment Process...

  • Page 4: Section 1: Introduction & Applications For Use

    Section 1: INTRODUCTION & APPLICATIONS FOR USE The K45 360 is designed as a simple to use but powerful portable LED lighting system. It should only be used as a device to provide light as designed and for no other purpose.

  • Page 5: Section 2: Safety Rules

    The Manufacturer, Ritelite (Systems) Ltd cannot anticipate every possible circumstance that might involve a hazard. The warnings in this manual and on labels affixed to the K45 360 will therefore not cover every eventuality. If using a procedure or operating method not specifically recommended by the manufacturer then the user must verify that it is safe for others and that it does not make the equipment unsafe.
  • Page 6 • Do not place the K45 360 on a smooth low friction surface even if firm and level. e.g. snow/Ice. The unit could be prone to sliding sideways in these circumstances.
  • Page 7 Avoid debris and uneven surfaces when rolling a K45 360 with the legs folded up. • Do not use the K45 360 for any purpose other than that for which it is designed. • The K45 360 is NOT a lifting device for anything other than the fitted Light heads.
  • Page 8 Ensure the K45 360 is set up on a firm and horizontal flat surface. • Do not raise the mast until the K45 360 is positioned level on a firm horizontal flat surface with all four support legs correctly deployed and locked.
  • Page 9 • Do not place the K45 360 on a smooth low friction surface even if firm and level. e.g. snow/Ice. The unit could be prone to sliding sideways in these circumstances. • The K45 360 must only be operated in a vertical position.

  • Page 10: Section 3: Technical Specifications

    Input 110V 7A or 240V 3.5A Max AC 50/60Hz 820W LED LIGHT HEADS IP65 Integral Electronic Driver 100-240V Input 6500K Daylight White max 85,000 Lumens per K45 360 (6 x light heads) Mains input via 110V/240V plug/coupler link through as per customer requirements.

  • Page 11: Section 4: Safety And Operating Labels

    Section 4: SAFETY AND OPERATING LABELS LABEL POSITIONS...
  • Page 13 Pull to release light head Pull to release legs Leg carriage adjustment Product data plate including serial number and weight information Ritelite * K45 360 product label * * These labels are subject to change depending on individual customer configurations.

  • Page 14: Section 5: Setting Up The K45 360

    Section 5: SETTING UP THE K45 360 Inspect the proposed area for use. An inspection of the proposed area in which to set up the K45 360 is necessary to ensure it is suitable for safe operation. This inspection should be performed by the operator prior to moving the K45 360 into position.

  • Page 15: Section 6: Operating Instructions

    Section 6: OPERATING INSTRUCTIONS Do not use the K45 360 for any purpose other than that for which it is designed – as a mobile floodlighting system. If more than one operator is expected to set up or use a K45 360 Lighting System at different times, each operator is required to follow all safety rules and instructions in the operators manual.

  • Page 16: 6B) Unit Stability Deployment Process

    6b) UNIT STABILITY DEPLOYMENT PROCESS 1. Push the K45 360 to a vertical position onto its base on firm, horizontal ground, away from overhead obstacles such as trees or power lines. Position the unit so that all four of the stabilizing legs can be located on firm ground when deployed.
  • Page 17 4. Check the brightness dial is turned fully to the 5. Connect the power cable and turn on the left to the 0% position. main power switch. A leg stability LED should illuminate, indicating that the leg is not adjusted correctly to support the product securely.

  • Page 18: 6C) Function Tests

    6c) FUNCTION TESTS Before each and every use it is recommended that the following function tests are carried out to make sure that there are no operational issues with the K45 360 before set up continues. Any K45 360 that is not working properly must not be used and must be removed from service until a full inspection and any necessary repairs have been carried out.

  • Page 19: 6D) Raising And Lowering Mast Process

    6d) RAISING AND LOWERING MAST PROCESS RAISING THE MAST 1. Press the ‘mast raise’ button once to raise 2. Adjust the light heads to the desired the mast until the light heads are above the top positions, they can be rotated from 180º of the unit if they aren’t already, then press the through to 360º.
  • Page 20 360 operator should be in the vicinity of the other persons. K45 360 when the system is being set up. Make sure the K45 360 is stable and no adjustments have been made, or ground firmness has changed whilst the K45 360 has been left unattended.
  • Page 21 LOWERING THE MAST 1. Rotate the ‘Brightness’ dial fully to the left to 2. Press and hold the ‘Mast Stop / Lower’ the 0% position. button for a couple of seconds to release the air pressure in the mast. The light heads will descend - pay attention at all times as they lower.
  • Page 22 K45 360. No persons other than the K45 360 operator should be in the vicinity of the K45 360 when the system is being taken down. 5. Once the light heads are stowed, rotate all of 6.

  • Page 23: 6E) Packing Away And Transport

    K45 360’s weight. See the serial plate on the K45 360 for exact weight. • The K45 360 must be secured to the transport vehicles with chains or straps of ample load capacity. • Check lifting points are not damaged before lifting product.
  • Page 24 OPTIONAL ROUGH TERRAIN WHEEL KIT The optional rough terrain wheel kit is a useful accessory which improves the handling and stability on all surfaces. It can be fitted and removed in seconds. It allows for four wheel or two wheel transport to aid manoeuvrability. Notice the counter balance provides easy control of the product.
  • Page 25 TRANSPORT ROLLERS The K45 360 is fitted with a roller on the opposite side to the power sockets to aid loading into a vehicle. LOADING THE K45 360 Manoeuvre the K45 360 into position next to the vehicle. Tilt the K45 360 so the roller is positioned on the floor at the edge of the load area.

  • Page 26: Section 7: Maintenance

    The K45 360 must be taken out of service if, during use, or repair and maintenance serious damage is discovered. • The K45 360 can only be put back into use after it has been properly repaired and examined and signed off by authorised personnel. •...
  • Page 28 The contents of this manual are subject to change without prior notice. We take no responsibility for errors or admissions. Ritelite (Systems) Ltd Meadow Park, Bourne Road, Essendine, Stamford, Lincolnshire, PE9 4LT, UK Tel. +44 (0) 1780 758585 Fax. +44 (0) 1780 765700 E-mail. sales@ritelite.co.uk www.riteliteportablelighting.co.uk RI-62 V7 210804...

This manual is also suitable for:

Slk45ledSlk45led/110v
