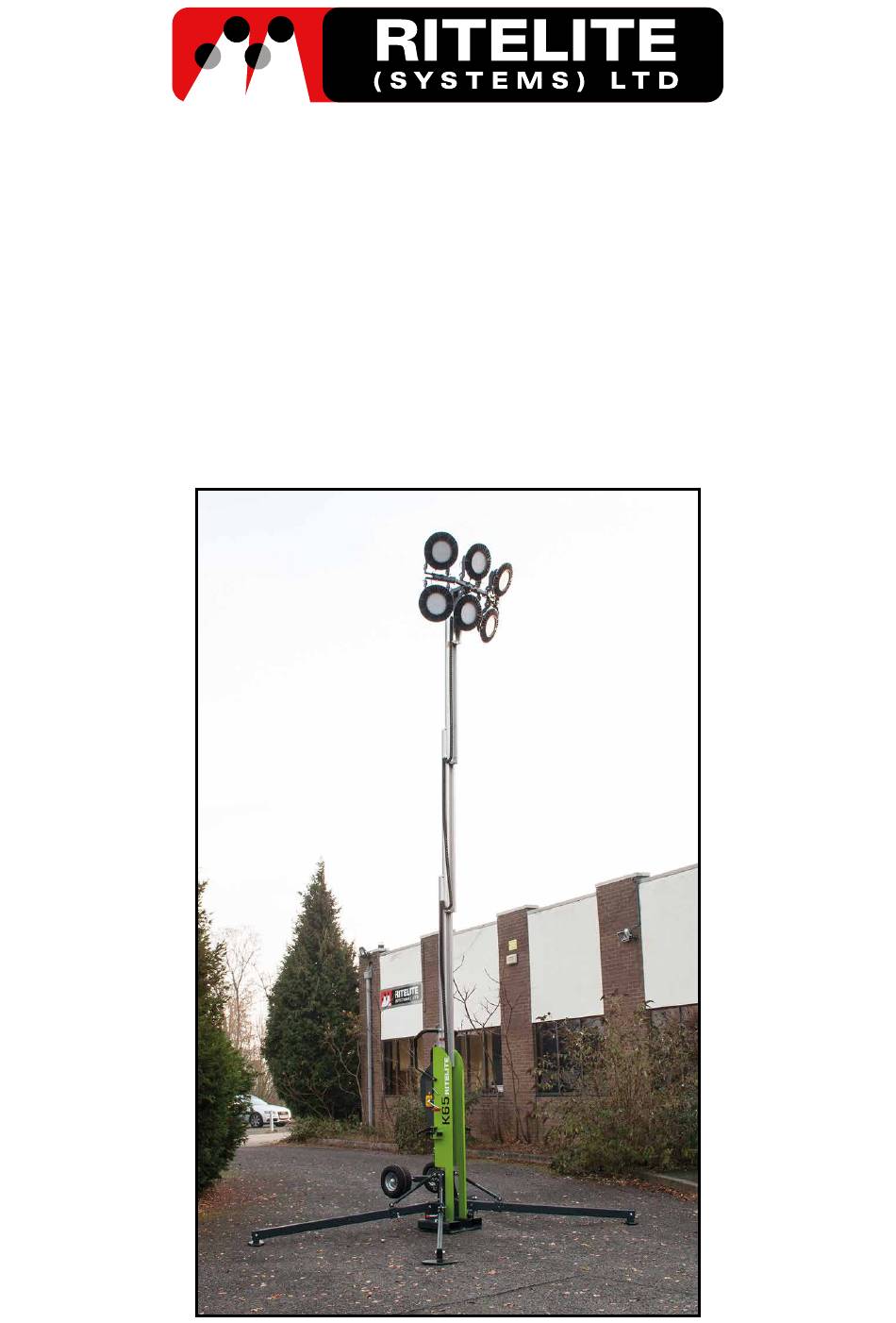

- Page 1 Quad Pod K50 / K65 Rapid Deployment Mobile Lighting System Operating Instructions...
- Page 2 SAFETY MEASURES & CHECKS The following are recommended safety measures and checks that all users should read and understand before setting up a Quad Pod K50 or K65 unit to ensure the safety of the user and of surrounding personnel.
- Page 3 The Quad Pod can only be put back into use after it has been properly repaired and examined and signed off by authorised personnel. • Maintenance and repairs can be executed only by authorised personnel. • If any person maintaining or repairing the device is in any doubt they should contact the dealer or Ritelite (Systems) Ltd.
- Page 4 The Quad Pod is designed for hand operation. Any kind of motorising is prohibited. • The use of spares other than original parts from Ritelite (Systems) Ltd will invalidate any warranty • To use the device, you must also observe the safety regulations, the assembly and operating instructions to be found in this manual.
- Page 5 POSITIONING THE QUAD POD The Quad Pod can be used indoors or outdoors. Note Recommended Maximum Wind Speed Wherever there is any doubt over the wind speed/conditions the Quad Pod should be lowered for safety. Wind speed at 100% height - 30 mph •...
- Page 6 LIFTING / LOWERING PROCESS RAISING THE MAST 1. Push mast to a vertical position onto its metal base on firm ground, away from overhead obstacles such as trees or power lines. Site the unit so that all four of the stabilising legs can be located on firm ground when deployed.
- Page 7 4. Fold the light heads forward slightly 5. To lower the support legs, release the to allow space for the support legs to be rubber transportation strap, fully pull out the lowered to the ground. Legs should be red locking pin B then firmly pull the leg from lowered so the final leg is the one activating the locating clips.
- Page 8 7. Once all legs are firm and pins locked in 8. As the 4th and final leg is lowered place check the bubble level again to ensure the transport lock will be activated and it is still reading true, the bubble should automatically allow release of the mast be within the smallest circle.
- Page 9 10. Continue to wind up the mast until it is around chest height. Adjust the light heads to the required angles, vertical adjustment is made by the silver plunger. Whilst supporting the head with one hand use the other hand to release the plunger by puling it outwards, then tilt the light head to the required position.
- Page 10 13. It is now safe to turn the Quad pod on at the switch. Lift cover and switch to on position. NOTE - the light must NOT be set up in a way that it may form a hazard or nuisance to other persons.
- Page 11 LOWERING THE MAST 1. Make sure the Quad pod is stable and no adjustments have been made or ground firmness has changed whilst the Quad Pod has been left unattended. 2. Switch the main power to the light heads 3. Re-tension the lifting wire by winding the off by lifting the cover and setting the switch winch handle D clockwise slightly to take the position to off.
- Page 12 5. When the final mast section stops moving, pull out the individual E latch. Hold as you lower further, you can let go of this after a short distance and continue to wind down. Continue to wind until the light heads are at chest height then stop.
- Page 13 8. Pull and hold out pins B as you lift the 9. As you lift the 4th leg the transport lock legs and return to their holding clips on the will automatically engage, holding the mast mast. You may need to adjust tie bars C to secure and preventing it from being raised.
- Page 14 12. Grasp the handles on the mast and take the Quad Pods weight as you lower it gently onto the wheels for transport. If you are in any doubt enlist the help of others.
- Page 15 TRANSPORT POSITION The Quad pod allows the wheel Kit to be adjusted to allow different transport and storage positions. Adjustment between each position is via the transport pin. Ensure the pin is fully and correctly located before allowing the weight of the unit to be placed on the wheels.
- Page 16 The contents of this manual are subject to change without prior notice. We take no responsibility for errors or admissions. Ritelite (Systems) Ltd Meadow Park, Bourne Road, Essendine, Stamford, Lincolnshire, PE9 4LT Tel. (01780) 758585 Fax. (01780) 765700 E-mail. sales@ritelite.co.uk www.ritelite.co.uk RI-26 V2 170321...
