Ritelite Quad Pod K50 Operator's Manual

Rapid deployment mobile lighting system
Hide thumbs Also See for Quad Pod K50:
Table of Contents

Advertisement

Quick Links

Download this manual

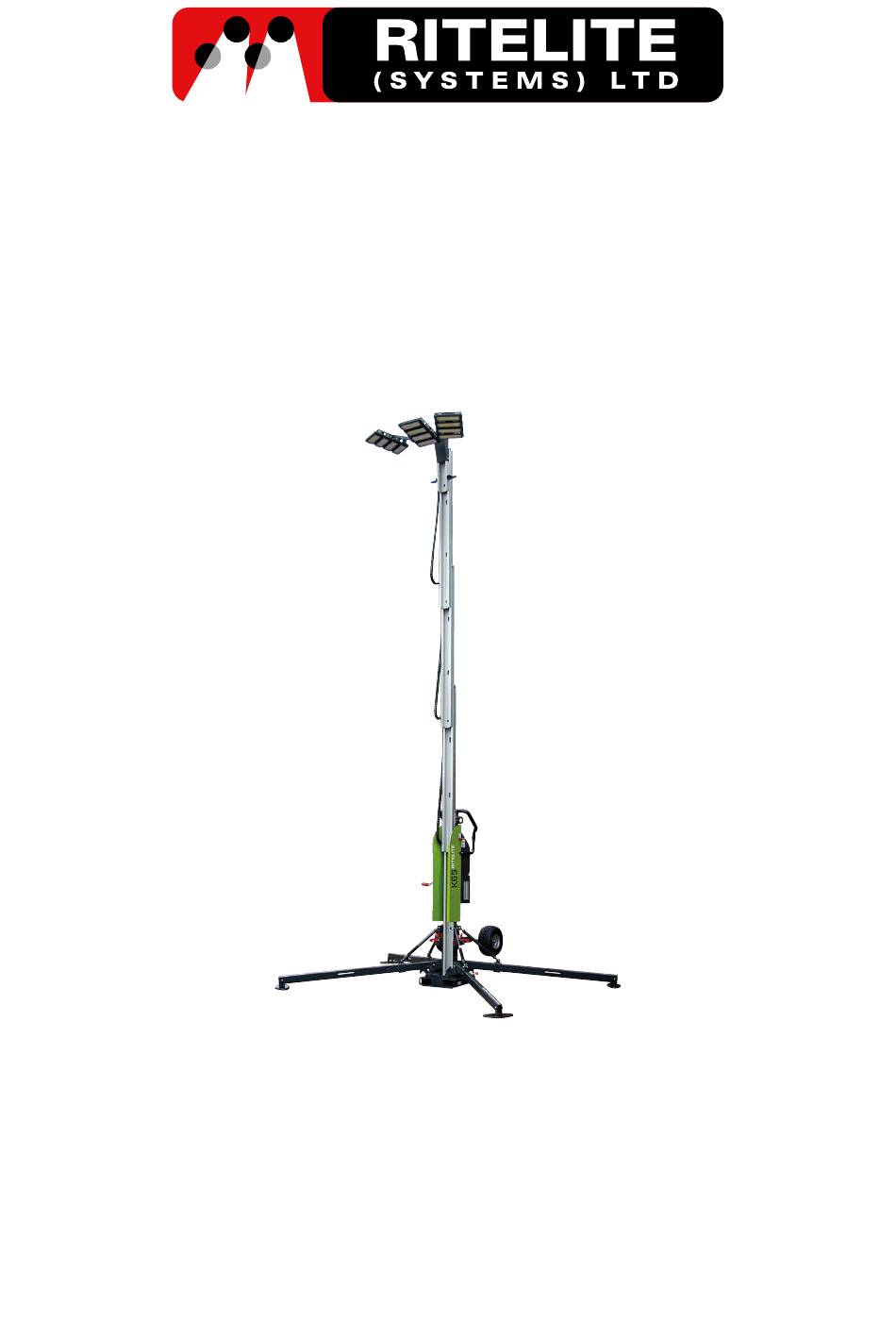

Quad Pod K50 / K65
Rapid Deployment Mobile Lighting System
Operator's Manual
This manual covers all configurations with part numbers beginning:
K50/MK5-L2X3/ | K50/MK5-L3X3/ | K50/MK5-L3X4/ | K65/MK5-L2X3/ | K65/MK5-L3X3/ | K65/MK5-L3X4/
The information contained in this manual is based on products manufactured up to the time of publication.
Ritelite (Systems) Ltd reserves the right to change any of this information without notice.
No part of this manual may be reproduced in any form or by any means, electronic or mechanical without express written
permission from Ritelite (Systems) Ltd.
Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid copyrights,
and violators will be prosecuted. We expressly reserve the right to make technical modifications, even without due notice,
which aim at improving our products or their safety standards.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quad Pod K50 and is the answer not in the manual?

Questions and answers

Related Manuals for Ritelite Quad Pod K50

Summary of Contents for Ritelite Quad Pod K50

  • Page 1 Ritelite (Systems) Ltd. Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid copyrights, and violators will be prosecuted. We expressly reserve the right to make technical modifications, even without due notice,...
  • Page 2 This information can be found on your Quad Pod’s data plate which is found on the back of the mast. NOTE: Below is an example of the K50/K65 data plate. You will be required to supply the products serial number when contacting Ritelite (Systems) Ltd or one of Ritelite’s approved dealers about parts and service.

  • Page 3: Table Of Contents

    CONTENTS SECTION TITLE PAGE NUMBER Section 1: Introduction & Applications for use Section 2 : Safety Rules Section 3: Technical Specifications Section 4: Safety and Operating Labels Section 5: Setting up the Quad Pod Section 6: Operating Instructions 6a) Pre-operation inspection 6b) Unit Stability Deployment Process 6c) Function Tests 6d) Raising and Lowering Mast Process...

  • Page 4: Section 1: Introduction & Applications For Use

    The Quad Pod mobile lighting system is designed for use in the following applications only. It should not be used for any other purpose. If in any doubt about applications for use please contact either Ritelite (Systems) Ltd or Ritelite (Systems) Ltd’s distributor for more information.

  • Page 5: Section 2: Safety Rules

    Quad Pod Lighting System. The Manufacturer, Ritelite (Systems) Ltd cannot anticipate every possible circumstance that might involve a hazard. The warnings in this manual and on labels affixed to the Quad Pod will therefore not cover every eventuality.
  • Page 6 When using outdoor use portable luminaires, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following: Use only three-wire outdoor extension cords that have three-prong grounding plugs and grounding receptacles that accept the appliance’s plug.
  • Page 7 • Prior to setting up check the area for any possible hazardous conditions. • Do not use blocks to level the Quad Pod. • Do not move the Quad Pod with a raised load. • Do not place ladders or scaffolding against any part of the Quad Pod. •...
  • Page 8 CRUSHING HAZARDS • Ensure the Quad Pod is set up on a firm and horizontal flat surface. • Do not raise the mast until the Quad Pod is positioned level on a firm horizontal flat surface with all four support legs correctly deployed and locked. •...
  • Page 9 • The device is to be used only for its prescribed purpose. Any use other than that mentioned is considered to be a case of misuse. • The user/operator, and not the manufacturer shall be liable for any damage or injury resulting from such cases of misuse.

  • Page 10: Section 3: Technical Specifications

    Section 3: TECHNICAL SPECIFICATIONS NUMBER OF 110V 240V PRODUCT CODE WATTAGE LUMENS WEIGHT LIGHT HEADS AMPS AMPS K50/MK5-L2X3/ 730W 97,000 215Kg 3.25A K50/MK5-L3X3/ 1100W 146,000 220Kg 10.5A 4.9A K50/MK5-L3X4/ 1460W 195,000 225Kg 6.5A K65/MK5-L2X3/ 730W 97,000 227Kg 3.25A K65/MK5-L3X3/ 1100W 146,000 232Kg 10.5A...

  • Page 11: Section 4: Safety And Operating Labels

    Section 4: SAFETY AND OPERATING LABELS LABEL POSITIONS 37 / 38...
  • Page 13 QR code label - link to resources on web page Do not tamper Lifting point (not shown - only on specific models as option) Ritelite * K50 product name * K65 product name * Product data plate including serial number and weight information...

  • Page 14: Section 5: Setting Up The Quad Pod

    Section 5: SETTING UP THE QUAD POD Inspect the proposed area for use. An inspection of the proposed area in which to set up the Quad Pod is necessary to ensure it is suitable for safe operation. This inspection should be performed by the operator prior to moving the Quad Pod into position.

  • Page 15: Section 6: Operating Instructions

    Pod must be removed from service until it has been repaired. Maintenance and repairs can be executed only by authorised personnel. If any person maintaining or repairing the device is in any doubt they should contact their dealer or Ritelite (Systems) Ltd. PRE-OPERATION INSPECTION Check the following parts or areas for any signs of damage or missing parts.

  • Page 16: 6B) Unit Stability Deployment Process

    6b) UNIT STABILITY DEPLOYMENT PROCESS These instructions are also available online via the QR code on the winch cover of the Quad Pod. 1. Push mast to a vertical position onto its base on firm, horizontal ground, away from overhead obstacles such as trees or power lines.
  • Page 17 4. To lower the support legs apply pressure to the 5. Pull out and hold locking pin B and lower leg to leg towards the mast (this will enable the release the ground. Release the locking pin. catch to be operated) and push the release catch. 6.
  • Page 18 7. Once all legs are firm and pins locked in place 8. After all 4 legs are lowered the transport locks will check the bubble level again to ensure it is still be activated and automatically allow release of the reading true, the bubble should be within the mast sections.

  • Page 19: 6C) Function Tests

    Maintenance and repairs can be executed only by authorised personnel. If any person maintaining or repairing the device is in any doubt they should contact their dealer or Ritelite (Systems) Ltd. After repairs are completed, the operator must perform a pre-operation inspection and function tests again before the Quad Pod is used.

  • Page 20: 6D) Raising And Lowering Mast Process

    6d) RAISING AND LOWERING MAST PROCESS RAISING THE MAST 1. Wind winch handle D clockwise to raise the light 2. Continue to wind up until the centre bracket of heads enough to clear the transport locks. Allow the light heads is around chest height, roughly in room for the light heads to be setup and adjusted line with the K50 / K65 logo.
  • Page 21 5. For standard 180º setup the outside light heads 6. Pull out the vertical locking pin for the centre should be setup as shown above by locating the light head and lower to the same angle as the side locking pins in the relevant holes. Due to the beam light heads.
  • Page 22 8. Continue to raise the mast to the desired height 9. When the mast is at the desired height stop by rotating the winch handle clockwise. As you raise winding. Now wind the handle in the opposite the mast you will hear a clicking sound as the safety direction slightly until the mast safety lock E lock connects to each engages.
  • Page 23 10. It is now safe to turn the Quad Pod on at the 11. Rotate the dimmer clockwise to the desired light switch. Lift cover and switch to on position. level. The light must NOT be set up in a way that it may form a hazard or nuisance to other persons. NOTE If the RCBO has tripped, the power switch will not go fully down and will not switch to the on position until it is reset.
  • Page 24 180º LIGHT HEAD SETUP 360º LIGHT HEAD SETUP WALL WASH LIGHT HEAD SETUP...
  • Page 25 LOWERING THE MAST Make sure the Quad Pod is stable and no adjustments have been made, or ground firmness has changed whilst the Quad Pod has been left unattended. 1. Switch the main power to the light heads off by 2.
  • Page 26 3. Continue to wind until the light heads are at chest height then stop. Adjust the light heads to their original positions so the outer light heads are rotated in as far as they will go. The outer heads then should be fully lowered and the central head fully raised.
  • Page 27 5. Make sure the light heads are pulled towards 6. Make sure the ground has remained firm and the each other enough to allow the legs to be raised unit will stand stable after the legs are packed away, without obstruction. if in any doubt enlist the help of others to support or steady the Quad Pod as required.
  • Page 28 10. Make sure the transport wheel set is secured 9. Once all 4 legs are raised and locked this will with the transport locking pin fully engaged, hold the mast secure and preventing it from being and the spring locking pin secured through the raised.

  • Page 29: 6E) Packing Away And Transport

    6e) PACKING AWAY & TRANSPORT In slippery or uneven terrain it is recommended that two people manoeuvre the product at all times. Take extra care handling light heads when packing the Quad Pod away for transport in case housings are still hot. QUAD POD WHEEL KIT The Quad Pod is fitted with an adjustable wheel kit to increase the product’s flexibility for transport and storage.
  • Page 30 REMOVING THE WHEEL KIT The Quad Pod wheel kit can be removed completely for more compact storage or during transportation by vehicle. To remove the wheels completely take the weight of the wheels, remove the spring locking pins and then remove both pins taking care not to drop the wheels. Enlist the help of others if necessary.
  • Page 31 When the wheel system is folded down or removed, do not attempt to tip the Quad Pod back to try and move it, the weight of the entire system will be realised and not supported/ controlled by the counter balance wheel system. This could lead to serious injury. Before moving the unit ensure the wheels are in transport position.

  • Page 32: Section 7: Maintenance

    The Quad Pod can only be put back into use after it has been properly repaired and examined and signed off by authorised personnel. • The use of spares other than original parts from Ritelite (Systems) Ltd will invalidate any warranty.
  • Page 34 The contents of this manual are subject to change without prior notice. We take no responsibility for errors or admissions. Ritelite (Systems) Ltd Meadow Park, Bourne Road, Essendine, Stamford, Lincolnshire, PE9 4LT, UK Tel. +44 (0) 1780 758585 | E-mail. sales@ritelite.co.uk www.riteliteportablelighting.co.uk RI-78 V4 231214...
