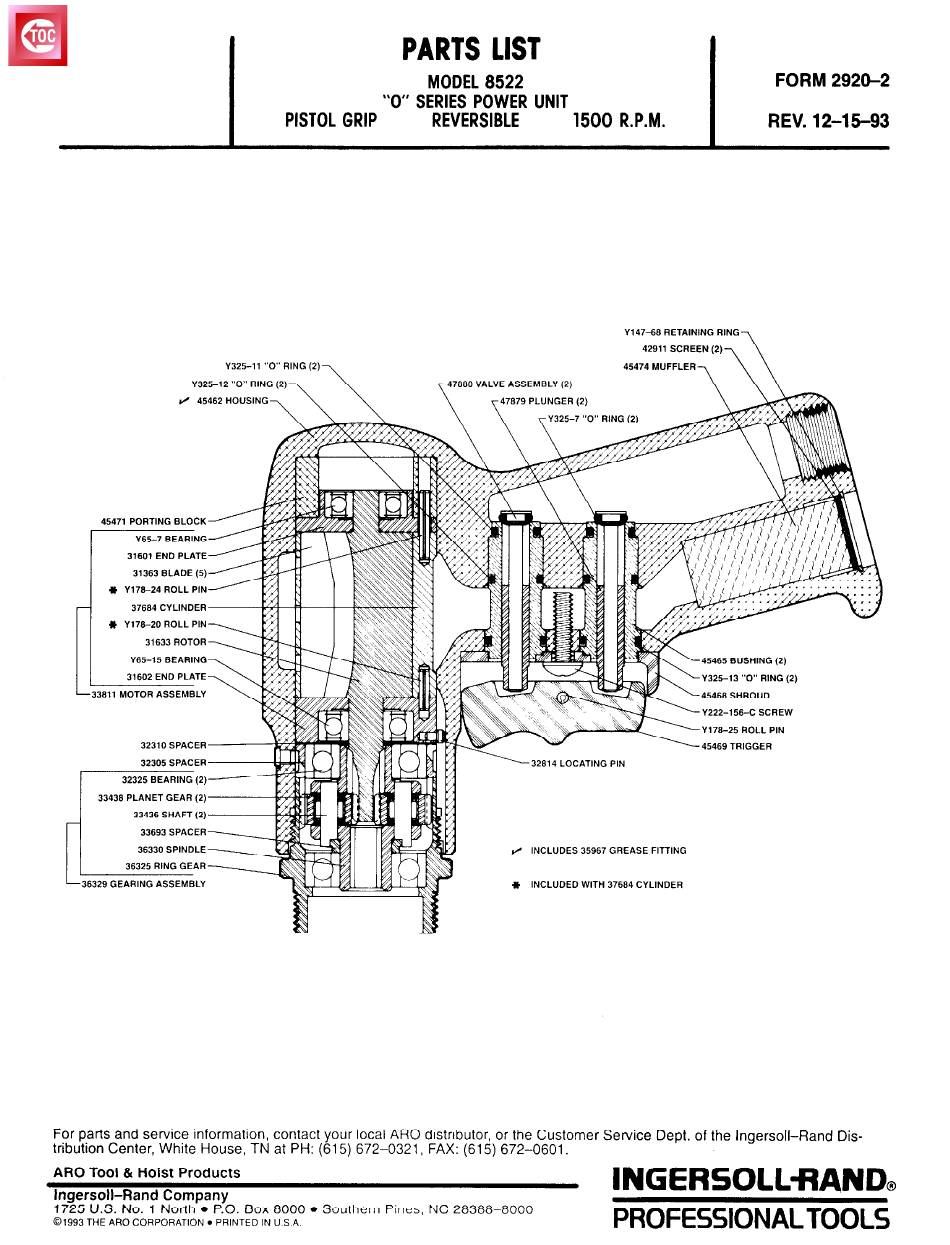

PARTS LIST
MODEL 8522
FORM 2920-2
"0" SERIES POWER UNIT
PISTOL GRIP REVERSIBLE 1500 R.P.M.
I
REV.12-15-93
Y14766 RETAINING RING-,
42911 SCREEN (2)
45471 PORTING BLOCK
31601 END PLATE
31363 BLADE (5)
* Y178-24 ROLL PIN
37664 CYLINDER
* Y178-20 ROLL PIN
31633 ROTOR
Y65-15 BEARING
45465 BUSHING (2)
Y325-13 "0" RING (2)
45466 SHROUD
Y222-156-C SCREW
36325 RING GEAR
36329 GEARING ASSEMBLY
32614 LOCATING PIN
Y176-25 ROLL PIN
45469 TRIGGER
INCLUDES 35967 GREASE FITTING
* INCLUDED WITH 37664 CYLINDER
For parts and service information, contact your local ARO distributor, or the Customer Service Dept. of the Ingersoll-Rand Dis-
tribution Center, White House, TN at PH: (615) 672-0321, FAX: (615) 672-0601.
ARO Tool & Hoist Products
Ingersoll-Rand Company
1725 U.S. No. 1 North
l
P.O. Box 8000
l
Southern Pines, NC 28388-8000
01993 THE ARO CORPORATION. PRINTED IN U S A
PROFESSIONALTOOLS
