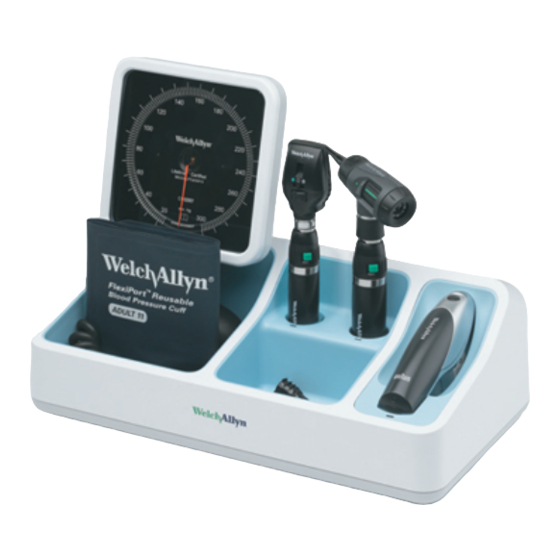

桌面式全科诊断系统 Diagnostic Desk System Model Number 77535-C1 Model Number 77535-C2 Model Number 77535-C3 Model Number 77535-C4 Model Number 77535-C5 使用说明 Directions for Use 料号: 718847 文档编号:80017839 版本:B Material Number 718847 DIR Number 80017839 Version B...
Page 31
Directions for Use Table of Contents Diagnostic Desk System ................................31 Intended Use ..................................31 Warnings and Cautions ................................31 Environment ................................... 31 Operating conditions ............................... 31 Transport/Storage ................................31 Electrical Power Supply ..............................31 Diagnostic Desk System Host ............................... 32 Assembly Instructions ................................
Page 32
Directions for Use Charging Instructions ................................49 Special Notes ..................................49 Rechargeable Lithium Battery Handle ............................50 Safety and Warnings ................................50 Parts List—710 Series Charger .............................. 50 Battery Replacement ................................51 Removing the Battery Section ............................51 Replacing a New Battery Section ............................ 51 Specifications ..................................
Directions for Use Diagnostic Desk System Host Assembly Instructions CAUTION: Host USB to be used to power Welch Allyn approved devices only.
Page 35
Directions for Use Charging Indicator LED Charging Indicator LED CAUTION: The Diagnostic Desk System is supplied with a rechargeable battery pack. To make use of the charging function, install the rechargeable battery pack in the battery compartment of the thermometer and then place the thermometer into the charger.
Directions for Use Eye Exams Using Diagnostic Front view Back view Desk System Apertures and Lenses The ophthalmoscope offers a wide range of practical apertures for examiners to select from: Micro spot, small spot, large spot, fixation aperture, slit aperture, and cobalt blue aperture. These can satisfy examiners' basic ophthalmoscope needs.
Directions for Use Linear Cross-Polarizing Filter/ Red-Free Filter Knob This knob is an added ophthalmoscope diagnostic function Red-free Filter knob Linear Cross-polarizing Filter Red-Free Light: Turn the knob to the position with the green spot to apply the red-free filter. This can be used with all the apertures described above.
Directions for Use Instructions for Using the Ophthalmoscope To clearly observe the fundus, the lights in the examination room To examine the periphery of the fundus, have the patient: should be dimmed or turned off. Patients' eyes may be dilated for •...
The halogen light source illumination system was originated by Welch Allyn. It provides a bright white light that ensures realistic coloration. Halogen bulbs have twice the lifespan and three times the luminosity of regular bulbs.
To remove, reverse this procedure. remove, reverse this procedure. The Otoscope/Throat Illuminator fits all 3.5 v. Welch Allyn power sources. The Otoscope Heads fit all 3.5 V Welch Allyn power sources. To Use Throat Illuminator Using Focus Grasp the otoscope section with the left hand.
Removing Specula To remove the specula, turn the TipGrip (C) counter clockwise, or grab the specula and twist it counterclockwise. Note: The otoscope only supports the Welch Allyn specula. Using the Throat Illuminator Grasp the otoscope section with the left hand.
Join the coil tubing to the cuff tube. Intended Use Verify an airtight seal is achieved at all connection points. Welch Allyn aneroid sphygmomanometers are used by Operation professional healthcare providers and individuals trained in auscultatory blood pressure technique to determine systolic and Blood pressure measurements can be affected by the position of the diastolic blood pressure in humans and animals.
(± 3 mm Hg) is an obvious sign of error. Full Check of Calibration: Welch Allyn recommends a full check of calibration at least once a year. Prior to this, please follow the following procedures for maintenance and repair.
Directions for Use How Does Braun ThermoScan Work? Temperature Measurement Using Diagnostic Desk System Braun PRO 4000 technology reads the 17 infrared energy emitted by the tympanic membrane and surrounding tissues to determine the patient’s temperature. To help ensure accurate temperature measurements, the sensor itself is warmed to a temperature close to that of the human body.
Directions for Use Product Description Caution: The probe cover was not included in the thermometer of DDS, the user need to purchase the separate probe cover with registration cert.
Directions for Use When you take a temperature measurement, the «ExacTemp» (exact Body Temperature temperature) light (7) can be of help. It flashes during the measuring process when the probe is correctly positioned, and lights up Normal body temperature is within continuously when the thermometer detects that an accurate a certain range.
Directions for Use Temperature Taking Hints Special Situations • Clinical studies have shown the Braun ThermoScan thermometer can A temperature measurement taken in the right ear may differ obtain accurate temperature measurements on full term newborn, from a measurement taken in the left ear. Therefore, always pediatric and adult patients.
If error persists, reset the thermometer by removing the batteries and putting them back in. If error still persists, contact Welch Allyn. Battery is low, but thermometer will still operate Insert new batteries. correctly. Battery is too low to take correct temperature Insert new batteries.
The thermometer is initially calibrated at the time of manufacture. If the thermometer is used according to the use instruction, periodic calibration is not required. However, Welch Allyn recommends checking calibration on an annual basis or whenever clinical accuracy of the thermometer is in question. Procedures for checking calibration are outlined in the 9600 Plus Calibration Tester (REF 01802-110) directions for use manual.
Page 50
Directions for Use Product Specifications Displayed temperature range: 10°C to 40°C Operating ambient temperature range: 10°C–40°C Display resolution: 0.1°C Accuracy for displayed temperature range: ±0.2℃ (35.5°C–42°C) ±0.3℃ (outside this temperature range) Clinical repeatability: ±0.14°C Long Term Storage Ranges Temperature: –20°C to 49°C Humidity: 95% non-condensing Shock:...
Welch Allyn recommends that this equipment be inspected at least How to Replace Rechargeable Batteries every six months, more often if used under adverse conditions.
Connect the Diagnostic Desk System Host to a power supply. • Use the Lithium Battery Handle only with Welch Allyn Insert the handle into the appropriate charging base. The approved products and chargers. Power/Charge Indicator will turn to amber during charge. For full charge, charge continuously for 14 hours.
Directions for Use Battery Replacement Removing the Battery Section Hold the instrument handle firmly by the Battery Section. Turn the Rheostat Section counterclockwise until it detaches from the Battery Section. Replacing a New Battery Section Insert the Rheostat Section into the new Battery Section. To connect the two sections, turn the Rheostat Section clockwise until tight.
Windows may be cleaned with a cotton swab dipped in alcohol Avoid touching the window except when cleaning is required. If the or lens paper. window is damaged, the thermometer must be returned to Welch Allyn for service. Aneroid sphygmomanometer...
Page 55
408511 Charger Caution: The probe cover, ear specula and cuff were not included in DDS, the user need to purchase separately with registration cert. DDS system can be used with specula, probe cover and cuff provided by Welch Allyn, Inc...
(± 3 mm Hg) is an obvious sign of error. 2) Full Check of Calibration: Welch Allyn recommends a full check of calibration at least once a year. Prior to this, please follow the following procedures for maintenance and repair.
Directions for Use Guidance and Manufacturer’s declaration – Electromagnetic Emission Diagnostic Desk System is intended for in the electromagnetic environment specified below. The customer or the user of the Diagnostic Desk System should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
Directions for Use Guidance and Manufacturer’s declaration – Electromagnetic Immunity – for ME EQUIPMENT and ME SYSTEMS that is not Life-Supporting The Diagnostic Desk System is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Diagnostic Desk System can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Diagnostic Desk System as recommended below, according to the maximum output power of the communications equipment.
Warranty Welch Allyn provides a warranty for all manufacturing defects. Welch Allyn will repair or replace, free of charge, any parts of its own manufacture proven to be defective through cause other than misuse, neglect, damage in shipment, or normal wear.
