Application Guide - CCS Lighting Solution PD3-10024-8-SI Instruction Manual

4

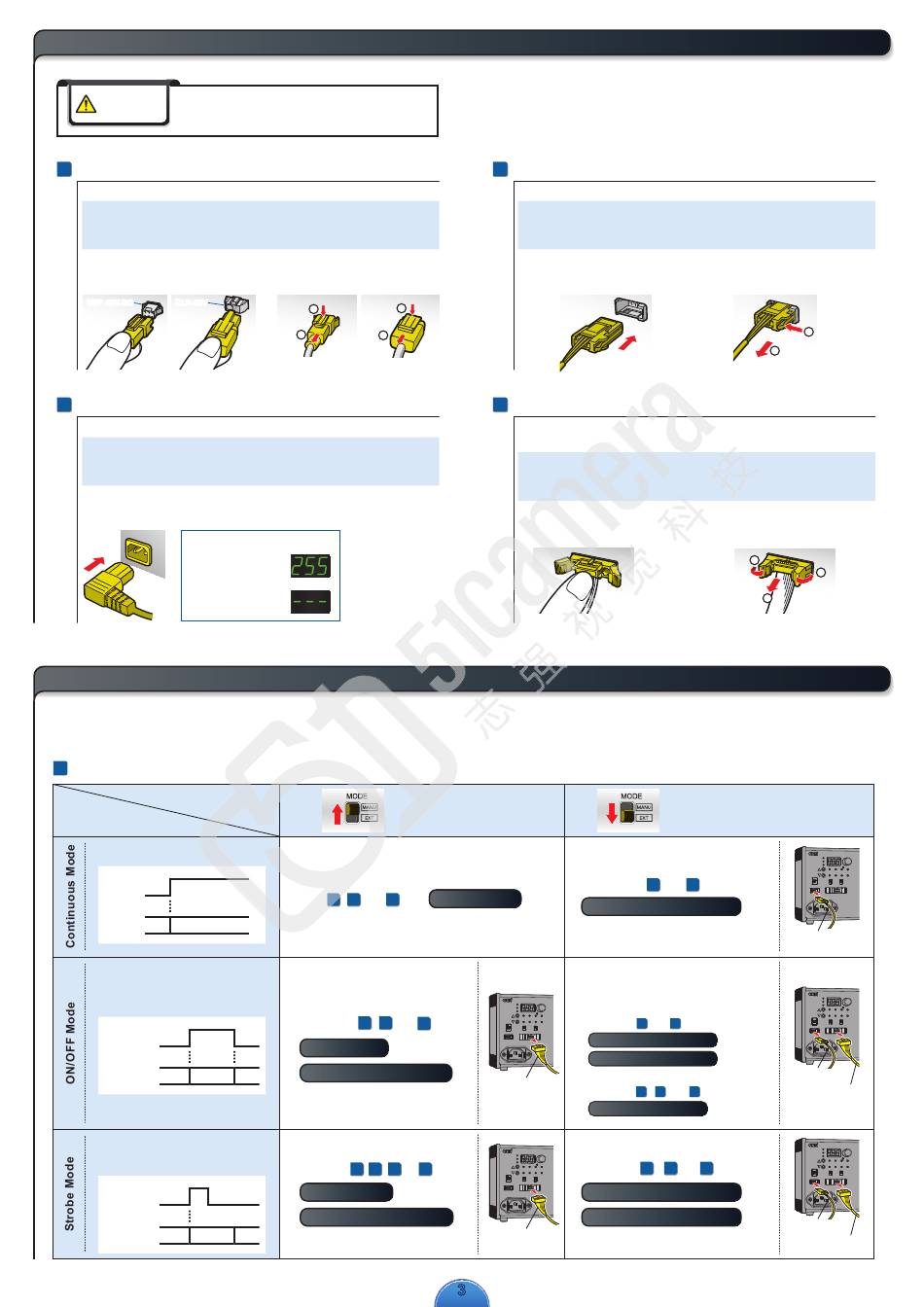

Connections
Before connecting the Control Unit, make sure that the main
WARNING
power source is turned OFF. Making connections with the
power turned ON may result in a fire or electric shock.
Connect the LED Light
1
Connect the connecting cable to the LED Light Unit to the output connector on the Control Unit.
Connect 24V DC Light Units to the 24V LIGHT output connectors, and Spotlights to
the HLV LIGHT output connectors. One of the 24V LIGHT output connectors is an
ELR-02V connector for a High-output Light Unit.
Connecting
Insert the connector to the Light Unit all the way in.
SMP-03V-BC SMP-03V-BC ELR-02V ELR-02V
Connect the AC Cord
2
Connect the AC power cord to the AC inlet and a wall socket.
The AC cord that is included with the Unit is for 100 to 120V AC. We recommend using the
following for 200 to 240V AC. Cable: GTCE-3 x 1.0 mm
Wire Company), Connector: KS-31AY (manufactured by Kawasaki Electric Wire Company)
Connect the power cord to the Control Unit and a wall socket. The Control Unit will turn ON when
power is supplied from the main power source. When the Unit is ON, the digital window will light.
Digital Window
The light intensity of the
lowest channel is displayed.
(Display when no Light
Unit is connected)
5
What You Can Achieve with This Control Unit
Select the control mode and lighting mode from the following Application Guide and proceed to the indicated reference items.

Application Guide

Control Mode
Lighting Mode
The Light Units are always ON.
Power ON
Power OFF
Not lit. Lit.
The Light Units are turned ON or
OFF according to the external
trigger signal input.
Photocoupler OFF
Photocoupler ON
* When the Trigger Logic
Switch is set to HIGH
Not lit. Lit.
* It is possible to turn LED light unit ON and
OFF by EIA-485 communications, too.
The Light Units are turned ON for
a set time after the external trigger
signal is input.
Photocoupler OFF
Photocoupler ON
* When the Trigger Logic
Switch is set to HIGH
Not lit. Lit.
Removing
Press the lock and pull out the connector.
1
1
2
2
(manufactured by Kawasaki Electric
2
*Data that has been
set is retained even
after the power is
turned OFF
manual or external
control.
Front panel operation
To use manual control in Continuous Mode, refer to
1 2 3
items , , and under
To use manual control in ON/OFF Mode,
1 2
refer to items , , and
7
and
Manual Control
9
Inputting the External Trigger
Not lit.
To use manual control in Strobe Mode,
1 2 3
refer to items , , and
7
Manual Control and
9
Inputting the External Trigger
Not lit.
(Only 24V DC Light Units can be set.)
Connect the External Control Cable
3
To perform external control, connect the external control cable to the external control connector.
An Optional External Control Cable (EXCB2-E3-3) (sold separately) is available.
In case using a self-made cable, cable length should be within 30 m at maximum.
Connecting
Press the connector in until it locks in place.
Connect the External Trigger Input Cable
4
To use ON/OFF Mode or Strobe Mode, connect the external trigger input
cable to the external trigger input connector.
An optional External Trigger Input Cable (EXCB2-M10-3) (sold separately) is available.
In case using a self-made cable, cable length should be within 3 m at maximum.
Connecting
Press the connector in until it locks in place.
with
To use external control in Continuous Mode,
refer to items
7
Manual Control .
8
External trigger signal or EIA-485
communications setting can be selected when
using ON/OFF mode by external control.
To use external trigger signal in ON/OFF mode,
3
under refer to items
8
9
.
To use EIA-485 communications setting in ON/OFF mode,
External Trigger Input Cable
(EXCB2-M10-3) refer to items
8
To use external control in Strobe Mode,
4
under refer to items
8
9
.
External Trigger Input Cable
(EXCB2-M10-3) (Only 24V DC Light Units can be set.)
3 3
(Optional item, sold separately)
Removing
Release the lock and remove the connector.
2
(Optional item, sold separately)
Removing
Release the lock and remove the connector.
1
2
External control using a PLC
or image process device
1 2
and under
Control with External Signals
.
1 , and 2 under
Control with External Signals and
.
Inputting the External Trigger
1 2 4
, , and under
.
Control with External Signals
1 2 3
, and under
Control with External Signals and
Inputting the External Trigger
.
1
1
External Control Cable
(EXCB2-E3-3)
External Control Cable
(EXCB2-E3-3)
External Trigger Input Cable
(EXCB2-M10-3)
External Control Cable
(EXCB2-E3-3)
External Trigger Input Cable
(EXCB2-M10-3)
