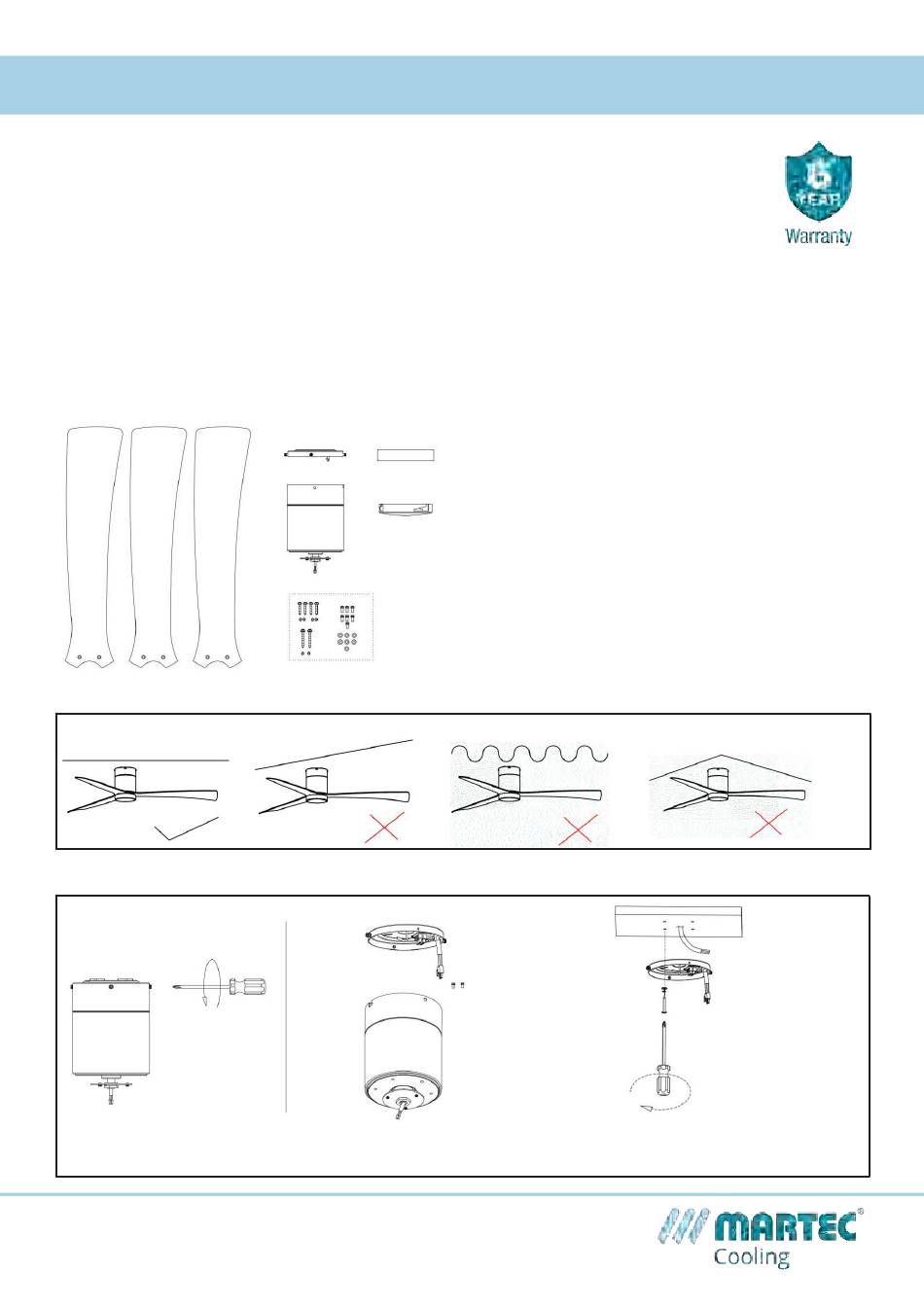

Me t r o D C S m a r t S e r i e s I n s t a l l a t i o n G u i d e
Thanks for choosing our Metro DC Smart Series ceiling fan
We strongly recommend that you read this manual carefully before installation
Models Parameters (Fan and LED Light):
MDCM1333M
Metro DC Close to Ceiling 3 ABS Blade 1320mm Hugger WIFI & Remote Control Ceiling Fan with Variable Dim 16w CCT LED Light Matt Black
MDCM1333W
Metro DC Close to Ceiling 3 ABS Blade 1320mm Hugger WIFI & Remote Control Ceiling Fan with Variable Dim 16w CCT LED Light Matt White
MDCM1333WO
Metro DC Close to Ceiling 3 ABS Blade 1320mm Hugger WIFI & Remote Control Ceiling Fan with Variable Dim 16w CCT LED Light White/Oak
Part List:
Qty 1x Motor assembly
Qty 1x Instruction manual
Qty 1x Hanging bracket
Qty 1x Remote
Application
Flat Surface / Ceiling
How to Assemble
Fg.1
Remove screws as illustrated to take out the mounting bracket.
E: sales@martecltd.com.au | P: 02 8778 7500
www.martecaustralia.com.au
.
Qty 1x Screw kit
Qty 3x Blades
Slope Ceiling
Corrugated Ceiling
.
Qty 1x
LED light kit pan
Qty 1x
Acrylic lampshade
Fg.2
ecure the ceiling fan mounting plate to the ceiling using screws and
washers provided. Ensure screws are tightened on the mounting
plate.
Apex Ceiling
Advertisement
Related Manuals for Martec METRO DC Smart Series
Summary of Contents for Martec METRO DC Smart Series
- Page 1 Me t r o D C S m a r t S e r i e s I n s t a l l a t i o n G u i d e Thanks for choosing our Metro DC Smart Series ceiling fan...
-
Page 2: Important Reminders
WARNING Installation MUST carry out by a qualified and licensed electrician. Fg.3 Wire the mount plate to mains. Fg.4 Wire up the receiver with quick connectors and insert into the mounting bracket. Please Connect the receiver output with motor make sure the antenna wire has been safely and input with the mounting bracket. -
Page 3: How To Install
WARNING Installation MUST carry out by a qualified and licensed electrician. How to Install Fg.5 Fg.6 Carefully install the motor housing into the mounting plate by Scure the motor housing with the 4 screws supplied. pushing and twisting onto the mounting bracket. How to Install Blades Fg.7 Install the blades to the bottom of the motor. -
Page 4: Light Kit Pan
WARNING Installation MUST carry out by a qualified and licensed electrician. How to Install / light kit pan Fg.9 Align the key holes of the LED light plate with the remaining on the bracket.Secure the installation by put the screw from step 8 back onto the steel plate.
