Summary of Contents for Truper PRE-1I

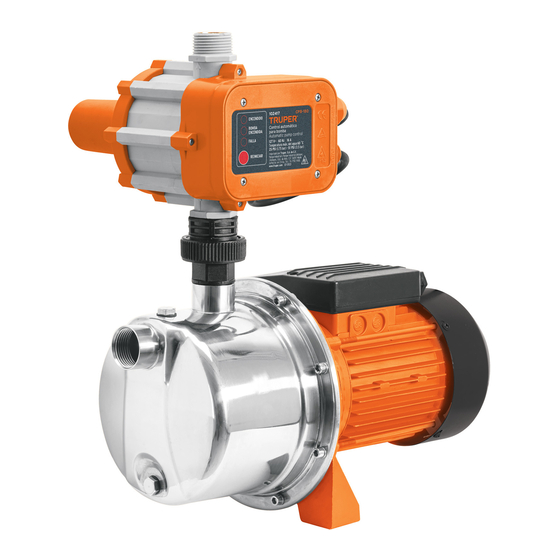

- Page 1 Manual Water pressure booster pump Household use Applies for: Codes Models 102857 PRE-1I 102858 PRE-1/2I Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Parts Installation Keep this manual for future references. Start up The illustrations in this manual are for reference only. They might be different from the real tool. Maintenance Troubleshooting Authorized service centers Warranty policy PRE-1I PRE-1/2I ENGLISH... -
Page 3: Technical Data
Technical data PRE-1I PRE-1/2I Code 102857 102858 Description Water pressure booster pump Voltage 127 V Frequency 60 Hz Speed 3 450 RPM Current 9.5 A 4.5 A Power 750 W 373 W (1 Hp) (1/2 Hp) Inlet and outlet diameter 1 - 11.5 NPT... -
Page 4: Electrical Requirements
Electrical requirements WARNING The tool must be grounded while in use to prevent electrical shock. • Plug the tool into a properly grounded outlet or receptacle as shown in example A. Not all outlets or receptacles are properly grounded; if you are unsure, check with a qualified electrician. -
Page 5: General Safety Warnings For Electric Tools
General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 6: Parts
Safety warnings for using water pumps • Do not expose the device to rain. Do • The device complies with the latest safety requirements if CAUTION not use the device around wet areas. it is used for its intended purpose. The device can only be used within the allowed performance restrictions. -
Page 7: Installation
Installation Mounting • The pump shall be installed in a dry place sheltered from outdoor weather but that allows the flow of air for its adequate ventilation (A). Ambient temperature shall not exceed 104 °F. • Use bolts to fix the pump into a concrete base to avoid vibration (B). -
Page 8: Start Up
Installation Pressure water Wiring outlet Power cord Pump connection cable • For household use, it is recommended to use a polarized plug with grounding for the operation of the pump. Pressure water inlet Start up Purge • The first time the pump is started or after a long period of inactivity or when air entered into the system, fill the pump with clean water before starting up. -
Page 9: Maintenance
5. Store the device in a frost-free room (at least 41 °F). • Tool service should only be performed at a TRUPER Authorized Service Center. Service and maintenance by unqualified persons can be dangerous and may result in personal injury and invalidate the product warranty. -
Page 10: Troubleshooting
Troubleshooting Problem Cause Solution Pump does not work. • No power. • Check the cable, plug and fuse. • Reverse wiring (pump-power supply). • Correct wiring. • Overheating. Water temperature is too high. • Avoid the cause of heating, wait for the water to cool down. -
Page 11: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800-018-7873 to get information about the nearest Service Center. -
Page 12: Warranty Policy
It includes the costs of transportation of the product that derive from its fulfillment of its service network. Phone number 800-018-7873. Made in China. Imported by Truper, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257, Phone number 761 782 9100.
