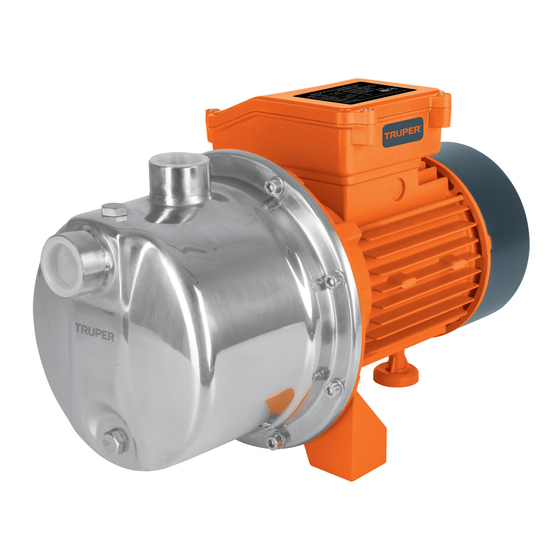

Stainless steel jet pump

Advertisement

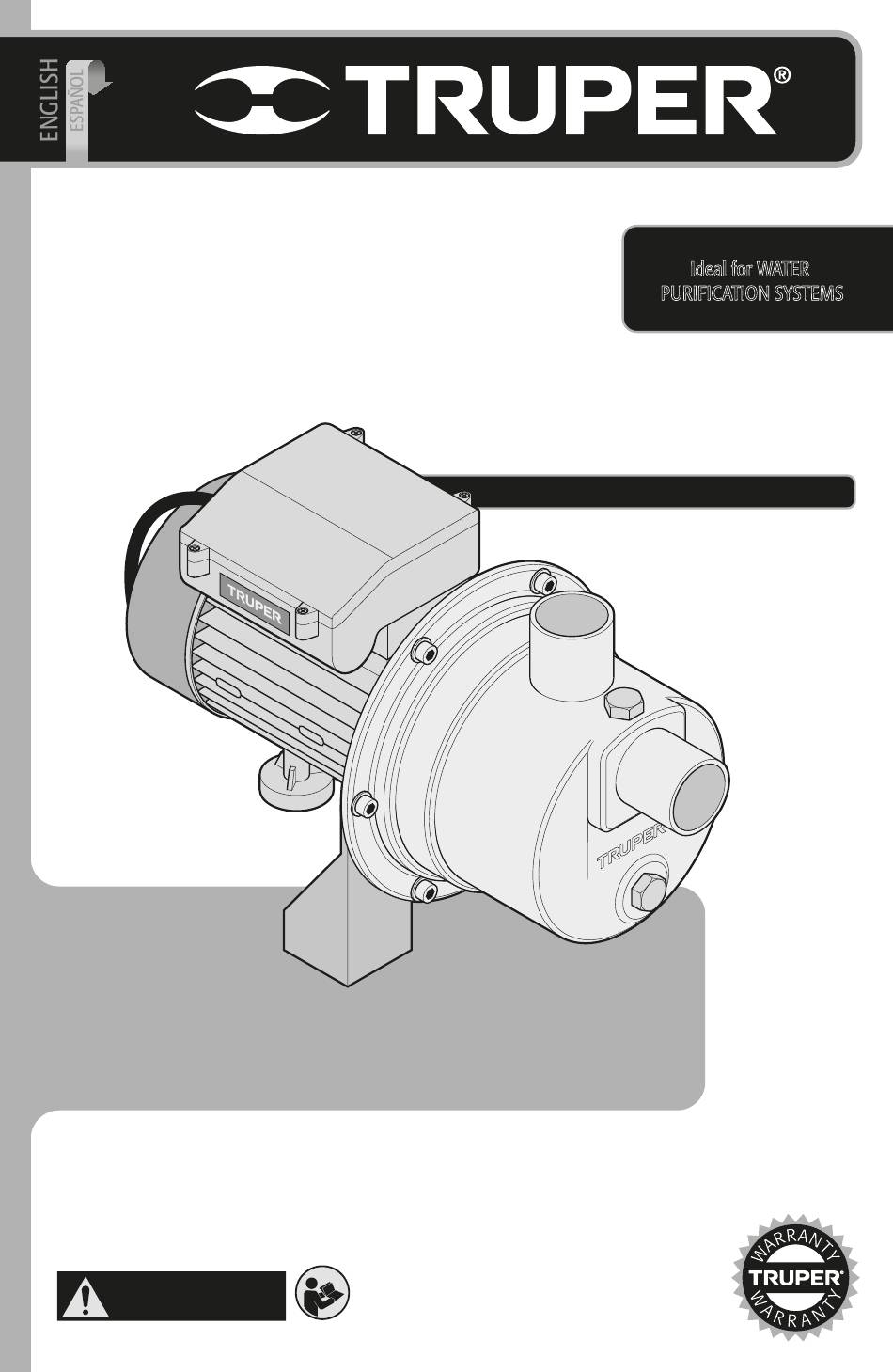

Manual
Stainless Steel
Jet Pump
BOAJ-1/2I
BOAJ-3/4I
BOAJ-1I
BOAJ-1-1/2I
CAUTION
Read the user's manual thoroughly
before operating this tool.
Ideal for WATER
PURIFICATION SYSTEMS
Applies for:
Codes
Models
13555
BOAJ-1/2I
13557
BOAJ-3/4I
13559
BOAJ-1I
101102
BOAJ-1-1/2I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOAJ-1/2I and is the answer not in the manual?

Questions and answers

Summary of Contents for Truper BOAJ-1/2I

  • Page 1 Manual Stainless Steel Ideal for WATER PURIFICATION SYSTEMS Jet Pump Applies for: Codes Models 13555 BOAJ-1/2I 13557 BOAJ-3/4I 13559 BOAJ-1I 101102 BOAJ-1-1/2I BOAJ-1/2I BOAJ-3/4I BOAJ-1I BOAJ-1-1/2I Read the user’s manual thoroughly CAUTION before operating this tool.
  • Page 2: Table Of Contents

    Installation Keep this manual for future references. Start Up The illustrations in this manual are for reference Maintenance only. They might be different from the real tool. Troubleshooting Notes Authorized Service Centers Warranty Policy BOAJ-1/2I BOAJ-3/4I BOAJ-1I BOAJ-1-1/2I ENGLISH...
  • Page 3: Technical Data

    Technical Data BOAJ-1/2I BOAJ-3/4I BOAJ-1I BOAJ-1-1/2I Code 13555 13557 13559 101102 Description Stainless Steel Jet Pump Voltage 127 V~ Frequency 60 Hz Speed 3 400 RPM Current 6.5 A 7.6 A 9.5 A Power 1/2 Hp 3/4 Hp 1 Hp...
  • Page 4: General Power Tool Safety Warnings

    General power tool safety warnings WARNING! Read carefully all safety warnings and instruction listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
  • Page 5: Safety Warnings For Using Water Pumps

    Safety Warnings for Using Water Pumps Adequate use CAUTION • Do not install the pump outdoors or • The pump is a stationary device designed to pump clean, neutral liquids with no abrasive solids suspended; in near wet areas. WARNING •...
  • Page 6: Installation

    Installation Mounting • The pump shall be installed in a dry place sheltered from outdoor weather but that allows the flow of air for its adequate ventilation (A). Ambient temperature shall not exceed 104 °F. • Use bolts to fix the pump into a concrete base to avoid vibration (B).
  • Page 7: Start Up

    Installation Electric Connection • Call a professional electrician to set up the electric connections to the power source (G), meeting the mandatory directives. • The fixed installation shall incorporate a device that assure the omnipolar connection of energy. • Make sure the electric requirements described in this Manual and in the pump nameplate match the power supply capacity values.
  • Page 8: Maintenance

    Maintenance • The pump is maintenance free only if the following cautions are followed: • If there is risk of freezing empty the pump completely removing the drain cap (J). Remember to purge the pump before starting up again. • Check the foot valve (not included) regularly and clean it if necessary.
  • Page 9: Troubleshooting

    Troubleshooting Problem Cause Solution The motor does not • There is no power. • Check the connection and voltage values. start. • Stuck impeller. • Release it with a screwdriver (see page 8). The motor is turning • Clogged foot valve filter. •...
  • Page 10: Notes

    Notes ENGLISH...
  • Page 11: Authorized Service Centers

    In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center.
  • Page 12: Warranty Policy

    . Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Jilotepec, Edo. de Méx. C.P. 54240 Stamp of the business.
