Truper PRE-1/6 Manual

Truper PRE-1/6 Manual

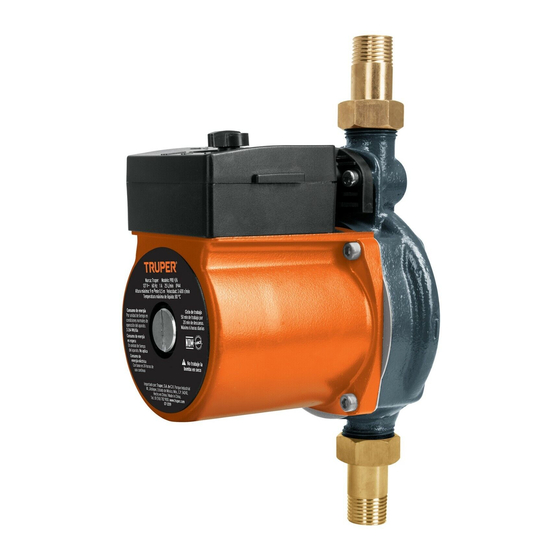

Water pressure booster pump
Hide thumbs Also See for PRE-1/6:

Advertisement

Quick Links

Manual
Water Pressure
Booster Pump
PRE-1/6
CAUTION
Read this manual thoroughly
before using the tool.
1/6 HP
Power
Applies for:
Code
Model
14635
PRE-1/6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRE-1/6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Truper PRE-1/6

  • Page 1 Manual Water Pressure 1/6 HP Booster Pump Power Applies for: Code Model 14635 PRE-1/6 PRE-1/6 Read this manual thoroughly CAUTION before using the tool.
  • Page 2: Table Of Contents

    Parts using the tool. Installation Keep this manual for future references. Start Up The illustrations in this manual are for reference Maintenance only. They might be different from the real tool. Troubleshooting Notes Authorized Service Centers Warranty Policy PRE-1/6 ENGLISH...
  • Page 3: Technical Data

    Technical Data PRE-1/6 Code 14635 Description Water Pressure Booster Pump Voltage 127 V Frequency 60 Hz Current Speed 3 600 RPM Power 1/6 Hp Inlet and Outlet Diameter 1/2 NPT Maximum Height/Maximum Value Minimum Inlet Pressure 0.72 PSI 29.5 ft...
  • Page 4: General Power Tool Safety Warnings

    General Power Tools Safety Warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
  • Page 5: Safety Warnings For Water Pressure Pumps

    Safety Warnings for Water Pressure Pumps WARNING • The automatic pressure pump is built with a noiseless • Do not allow the pump’s electric parts power motor totally coated with rotating parts generating be in contact with water. pressure in domestic clean water pipes. The pump doesn´t •...
  • Page 6: Parts

    Parts Pressure Flow Water Sensor Outlet Power Cord Selecting Purge Screw Water Inlet Water Direction Purge Indicator Screw Pressure Water Outlet Flow Sensor Selecting Reducing Nut from 3/4” to 1/2” Installation CAUTION CAUTION • When installing the pump do not •...
  • Page 7 Installation • Use threads sealing tape in all the connections (A). • If the piping is D 3/4”, connect the pump directly into the inlet and outlet pipes. If the piping is D 1/2”, use the reduction nuts (included) to screw them into the pipes inlet and outlet (B).
  • Page 8: Start Up

    Installation Air Purging • For the pump to run correctly after being installed or after maintenance, discharge the air from inside the pump before starting it. • Open the water faucet after installing the pump (see page 7). • Set a screwdriver tip in the purge screw slot. •...
  • Page 9: Maintenance

    Maintenance Cleaning and Care Repairs • Inspect regularly all the mounting screws and double • Repairs to the equipment shall only be carried out in a check they are correctly tightened. If any of the screws is Authorized Service Center loose, tighten immediately.
  • Page 10: Notes

    Notes ENGLISH...
  • Page 11: Authorized Service Centers

    Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center.
  • Page 12: Warranty Policy

    . Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Stamp of the business.

This manual is also suitable for:

14635
