Summary of Contents for Truper PRE-1/3S

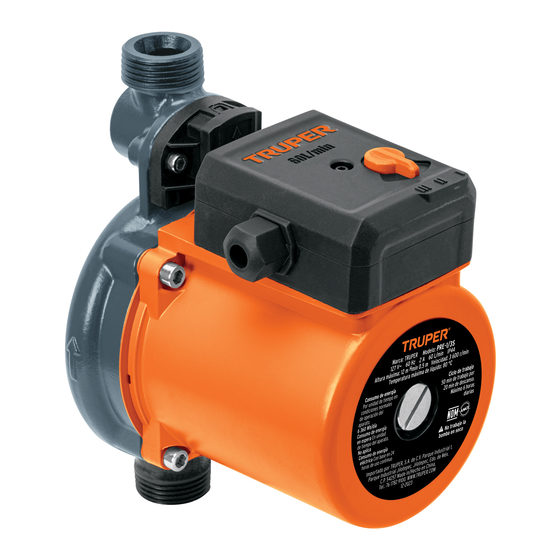

- Page 1 Manual Water pressure 250 W 1/3 Hp booster pump Power Applies for: Code Model 103356 PRE-1/3S PRE-1/3S Read this manual before CAUTION using the tool.
-
Page 2: Table Of Contents
Start up reference only and may differ from the real appearance of the tool. Maintenance Troubleshooting Notes Authorized service centers Warranty policy Use and care recommendations RESPECT THE WORK CYCLES. Perform regular MAINTENANCE on your machine (page 9). PRE-1/3S ENGLISH... -
Page 3: Technical Data
The thermal insulation class of the motor windings: Class H WARNING If the power cable is damaged, it must be replaced by the manufacturer or an Authorized TRUPER Service Center to prevent any risk of electric shock or significant accidents. The electrical insulation of this tool is altered by splashes or spillage of liquids during its operation. -
Page 4: For Electric Tools
Service reduces the risk of personal injury. Repair the tool at an Authorized TRUPER Service Center using only identical replacement parts to maintain the safety of the tool. Avoid accidental starts. Ensure the switch is in the "off" position... -
Page 5: Safety Warnings
Safety warnings for the use of water pressure pump • The automatic pressure booster pump features a quiet • To ease maintenance, it is recommended to install electric motor fully encased with rotating parts that independent shut-off valve systems at the pump inlet and generate pressure in clean domestic water pipes. -
Page 6: Parts
Parts Pressurized Flow sensor water Power outlet cable Purge screw Water inlet Water Purge direction Pressurized screw indicator water outlet Flow sensor Reducer nuts from 1 NPT to 3/4 NPT Mode selector Installation CAUTION • The flow direction must follow CAUTION •... - Page 7 Installation • Use thread seal tape on the joint of all connections (A). • If the pipe is 1" (25 mm) in diameter, connect the pump directly to the input and output pipes. If the pipe is 3/4" (19 mm) in diameter, use the reducer nuts (included) to screw them into the input and output pipe (B).
-
Page 8: Start Up
Installation Air purge • After installation or do maintenance,, the air inside the pump needs to be released before restarting it. • Turn on the water faucet after the pump has been installed (see page 7). • Insert the tip of a flathead screwdriver into the purge screw slot. -
Page 9: Maintenance
Maintenance Cleaning and care Repair • Regularly inspect all mounting screws and ensure they • Equipment repair should only be performed at a TRUPER are properly tightened. If any of the screws are loose, Authorized Service Center. tighten them immediately. -
Page 10: Notes
Notes ENGLISH... -
Page 11: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting an Authorized Truper Service Center, please see our webpage WWW.TRUPER.COM to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-873 to get information about the nearest service center. -
Page 12: Warranty Policy
It includes the costs of transportation of the product that derive from its fulfillment of its service network. . Phone number 800-018-7873. Made in China. Imported by TRUPER, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257, Phone number 761 782 9100.
