Assa Abloy ACCENTRA 6100 Series Installation Instructions page 2

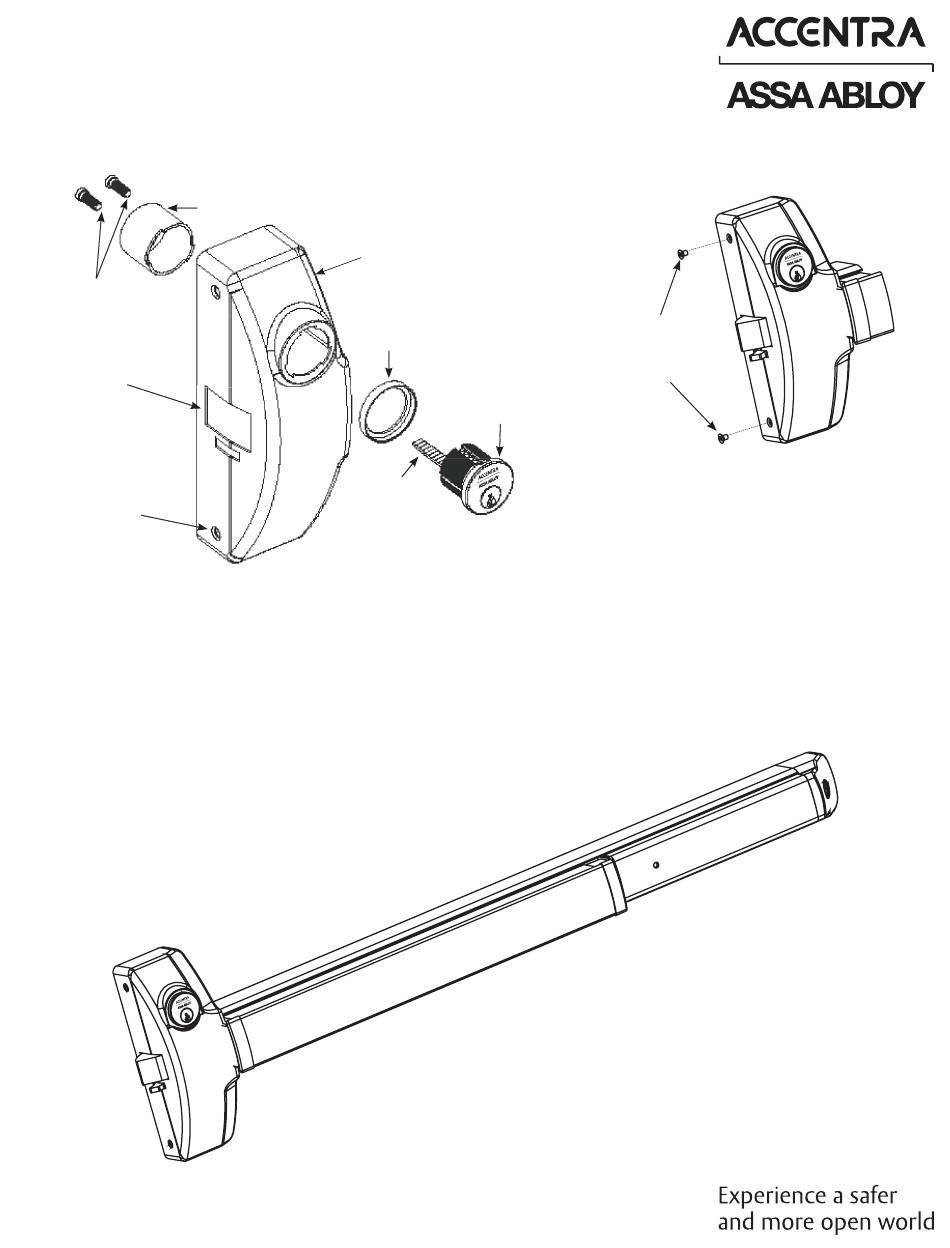

Assemble Locking Device Cover
(2) #12-24
Cylinder Screws
Device Bolt
Hole
Cover Screw
Hole
3. To install the Double Cylinder:
a. Identify parts and assemble the device cover as shown. Pass the lock cylinder through the cylinder collar, device
cover and cylinder housing as shown. Fasten the cylinder housing to the cylinder with two (2) #12-24 cylinder screws.
The keyway position should be vertical with the logo at the top side of the cylinder as shown.
b. Insert the cylinder tail piece into the cylinder collar of the double cylinder housing assembly (tailpiece length to be
adjusted as needed for non-interference with opposing trim cylinder tailpiece).
4. Attach the device cover by tightening two (2) #8-32 x 1/4" screws on side of cover.
5. Check for proper functional operation of trim, key (cylinder) and exit device touchbar.
Exit Device Fully Assembled
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 2015, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part
without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Double Cylinder Housing
Double
Cylinder
Device Cover
Cylinder
Collar
Cylinder
Tailpiece
(2) #8-32 x 1/4"
Phillips Flat Head Under Cut
Machine Screws (PFHUCMS)
Locking Cylinder
Attach Cover Screws
80-9460-6007-000 06/24
