FASTENING HEATER TO WALL

Mounting Bracket
The mounting bracket is located on back panel
of heater (see Figure 6). It has been taped
there for shipping. Remove mounting bracket
from back panel.

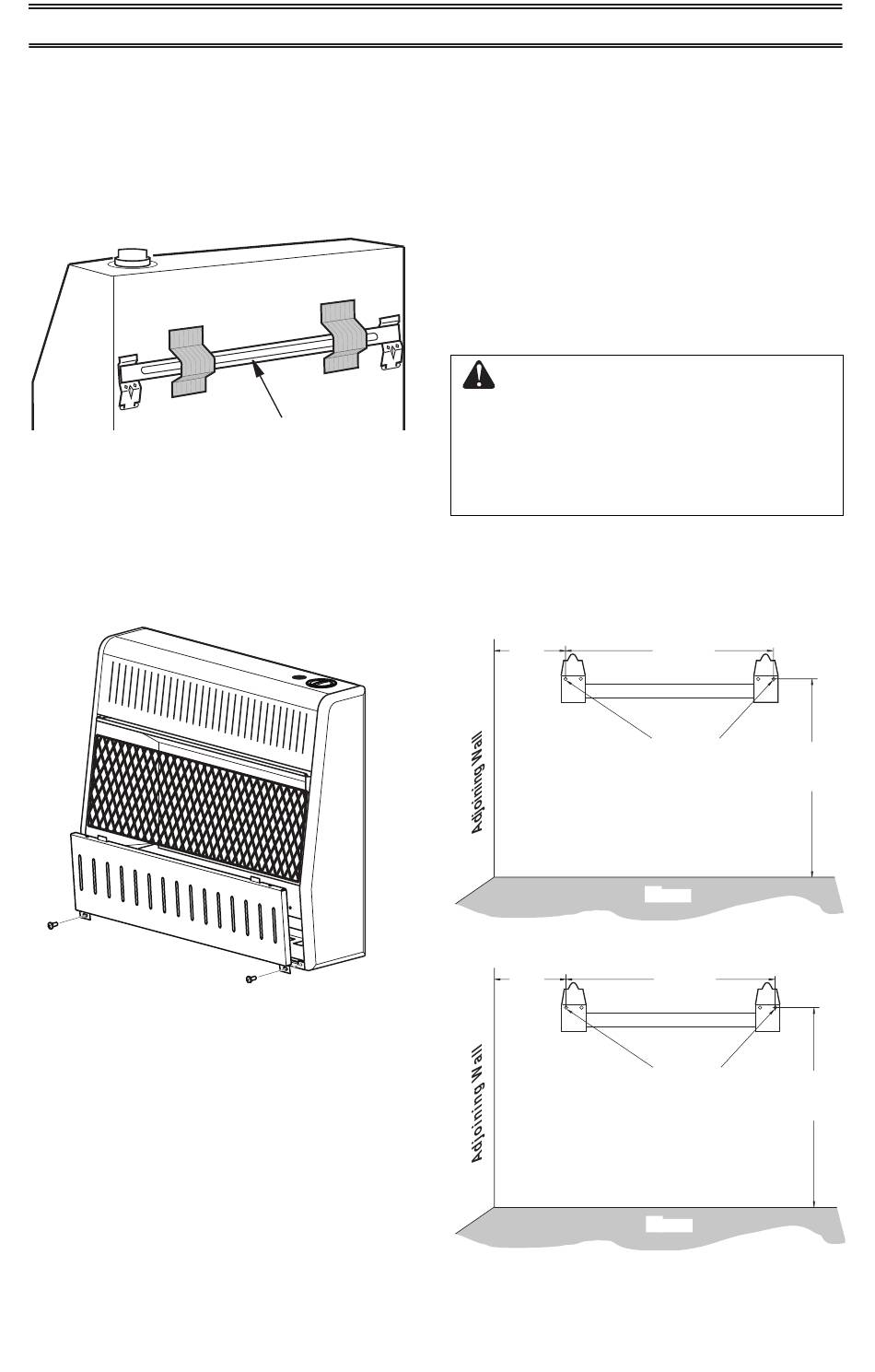

Figure 6 - Mounting Bracket Location
Removing Front Panel of Heater
1. Remove two screws near bottom corners
of lower front panel.
2. Pull bottom of lower front panel forward,
then down (see Figure 7).
Figure 7 - Removing Front Panel Of
Methods For Attaching Mounting
Bracket To Wall
Use only the last hole on each end of mount-
ing bracket to attach bracket to wall. Attach
mounting bracket to a wall only in one of two
ways:
1. Attaching to wall stud: This method pro-
vides the strongest hold. Insert mounting
screws through mounting bracket and into
wall studs.
10
INSTALLATION
Mounting Bracket
Heater
www.usaprocom.com
2. Attaching to wall anchor: This method
allows you to attach mounting bracket to
hollow walls (wall areas between studs)
or to solid walls (concrete or masonry).
Decide which method better suits your needs.
Either method will provide a secure hold for
the mounting bracket.
Marking Screw Locations
1. Tape mounting bracket to wall where
heater will be located. Make sure mount-
ing bracket is level.
WARNING: Maintain mini-
mum clearances shown in Figure
4, page 9. If you can, provide
greater clearances from floor
and joining wall.
2. Mark screw locations on wall (see Figure
8). Note: Mark only last hole on each end
of mounting bracket. Insert mounting
screws through these holes only.
9"
Min
Only Insert Mounting
Screws Through Last
Hole On Each End
Models:
MN1800HPA-B, ML150HPA-B
12 / "
5
8
Min
Only Insert Mounting
Screws Through Last
Hole On Each End
Models:
MN300HPA-B, ML250HPA-B
Figure 8 - Mounting Bracket Clearances
3. Remove tape and mounting bracket from
wall.
17 / "
3
8
18
Min
Floor
17 / "
3
8
18
Min
Floor
