Clas Ohlson EM3208 Manual

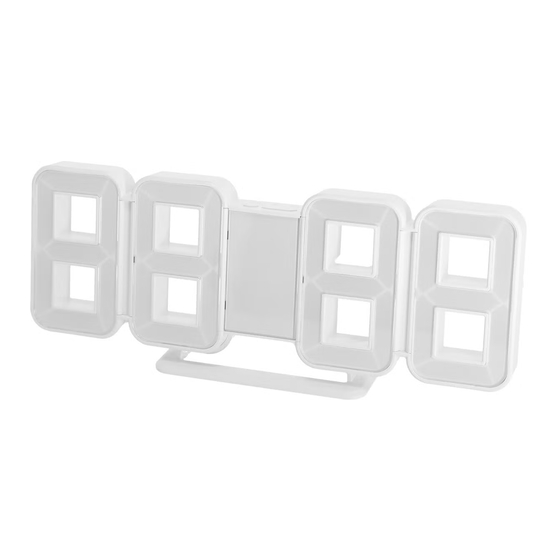

Digital alarm clock
Art. no. 44-5753 Model EM3208
Please read the entire instruction manual before using the product
and then keep it for future reference. We accept no liability for
any errors in the text or images and we reserve the right to make
any necessary changes to technical data. If you have technical
problems or other questions, please contact our customer
service team.
Safety
The product is intended for indoor use only.
Important
• Never expose the product to high temperatures, dust,
powerful vibration, impacts, humidity or moisture.
• Do not put the product anywhere where it could fall into
water or other liquid.
• Repairs and service work should be performed only by a
qualified technician and only using original spare parts.
• The product contains a button cell battery. Never put the
battery in your mouth and always handle it with care. There is
a risk of serious injury.
• Keep new and used batteries out of the reach of children.
Cleaning and maintenance
Clean the product by wiping it with a damp cloth. Use only mild
cleaning agents. Never use solvents or corrosive chemicals.
Specifications
Power supply 5 V DC, 200 mA
Backup battery CR2032 (included)
-9 to +50°C
Temperature range
Size (WxHxD) 214 × 75 × 22 mm
214 × 84 × 42 mm (incl. table stand)
Weight incl.table stand 139 g
Buttons and functions
1 2
3
1. Alarm indicator
2. Automatic brightness
3. AM/PM (morning/afternoon): Indication of 12-hour clock display.
4. Base
6 7 8
5
5. Light sensor
6. [ / ] Press to show the alarm time that is set.
Press and hold to set the date and time.
7. [ + / ] Press repeatedly to change the display brightness.
Press and hold to switch automatic brightness on/off.
Press or hold to increase the value.
8. [ – / ] Press to switch the alarm on/off. Press and hold to
change the display mode. Press or hold to decrease the value.
9. DC 5V input
10. Wall bracket
4
11. Cover for backup battery
Installation
Inserting a backup battery
1. Use a coin or something similar
to remove the cover on the back
of the clock by turning the arrow
to point to .
2. Insert one CR2032 battery by
sliding it in at an angle under the
metal hooks. Make sure that the
battery is in the correct position
by following markings on the
bottom of the battery compartment.
3. Refit the battery cover and turn the arrow to point it towards
The battery saves the clock and alarm settings in the event of a
power cut.
Connecting the clock to a power source
1. Connect the power cable provided to the DC
input (9). Angle the connector so that the power
cable hangs straight down.
2. Connect the power cable to a USB port.
English
9 10 11
.
