How to test the MOSFET in the main PCBA

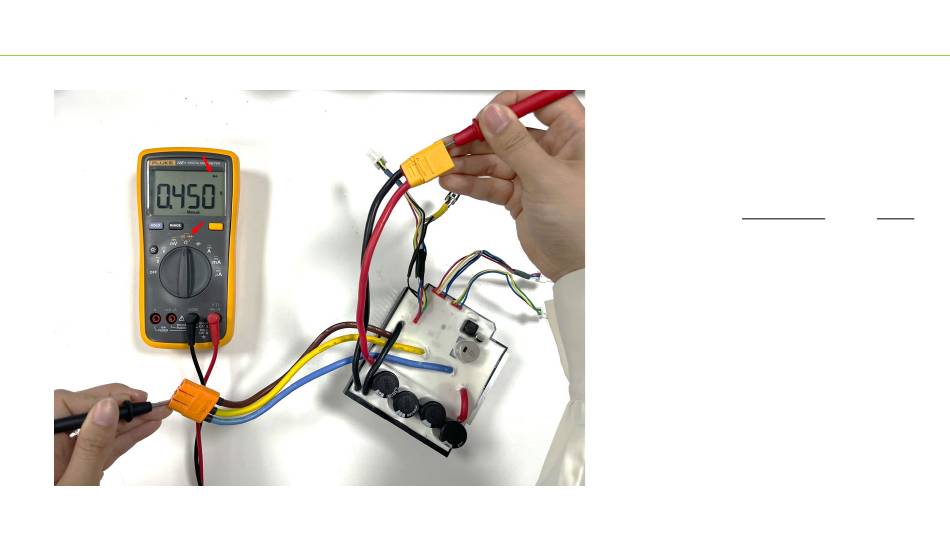

Step 1:
a) Set the Multimeter function to
"Diode measuring" .
b) Contact the red pen pin to the black
electric contact of yellow connector.
c) Contact the black pen pin to the
three terminals of power connector
separately and measure the voltage.
d) If the LCD displays 0.45~0.55V for
each measurement, go to the next
testing step, otherwise means the
main PCBA is broken.
