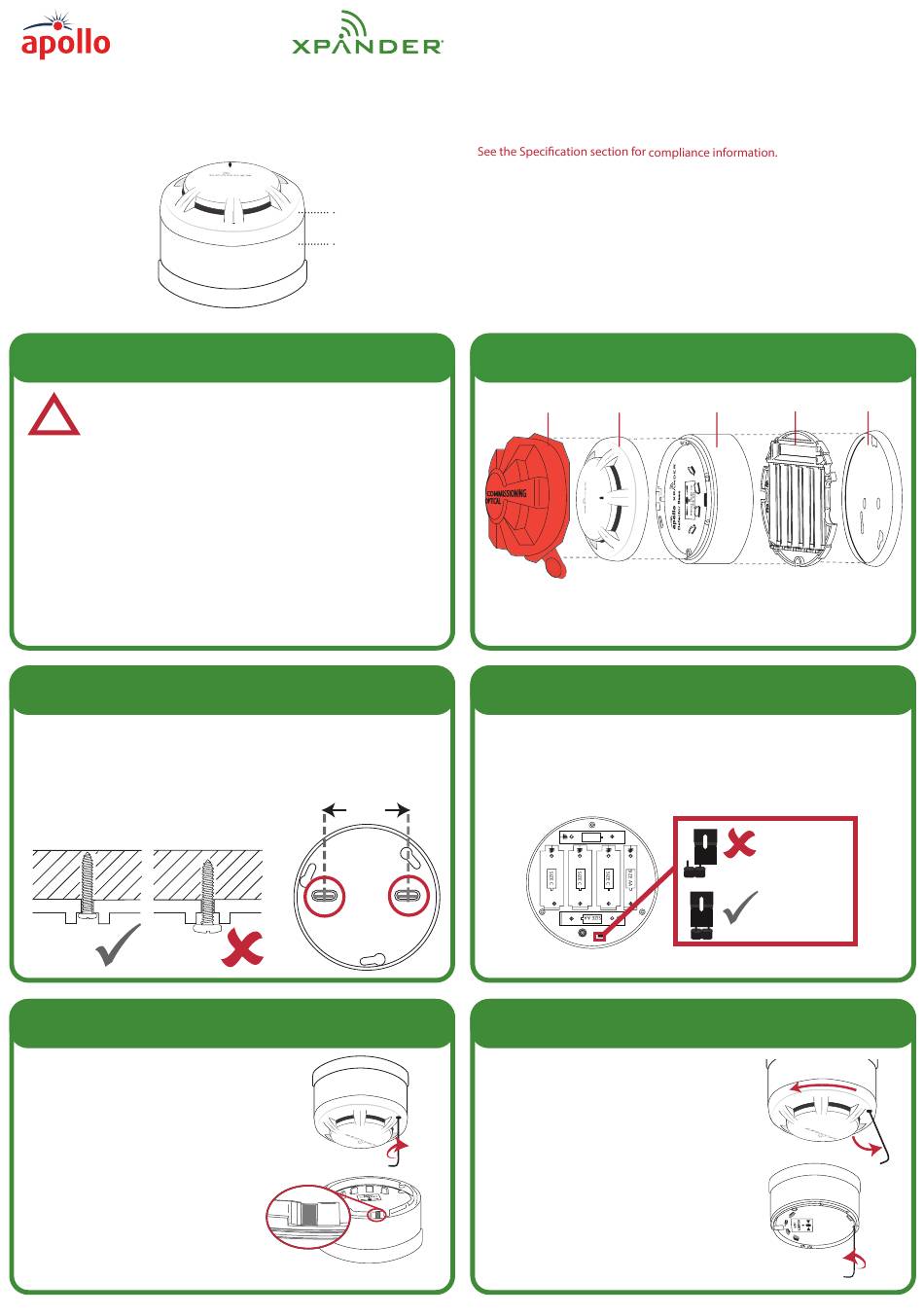

Apollo XPANDER XPA-WB-10022-APO Installation Manual

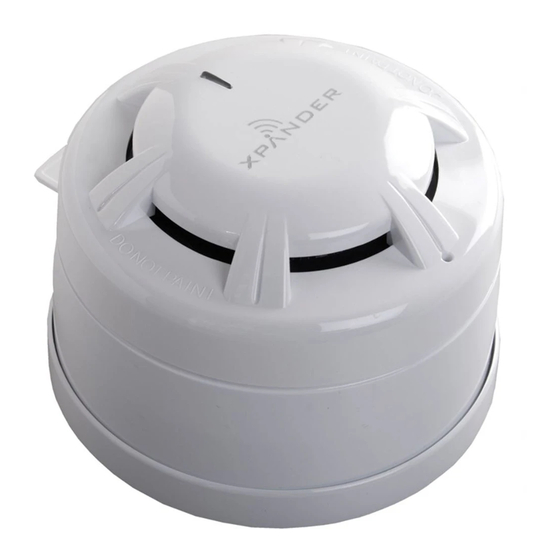

Wireless Detector
Installation Guide
1 Pre installation
Installation must conform to applicable local installation codes
!
and should only be installed by a fully trained competent person.
• Ensure that the device is installed as per the site survey.
• The use of a non-metallic spacer should be considered if mounting the
device on to a metal surface.
• Do NOT Press the Log On button on a pre-programmed device, as this
will cause communication with the Control Panel to be lost. Should this
happen, delete the device from the system and add it back on.
• This device contains electronics that may be susceptible to damage
from Electrostatic Discharge (ESD). Take appropriate precautions when
handling electronic boards.
3 Fix mounting plate
Remove the mounting plate by turning the device ANTICLOCKWISE, to release
it from the mounting plate.
• Use both fixing positions to ensure a firm fixing.
• Use suitable fasteners and fixings.
5 Optional device locking
• To lock the wireless module into the
mounting plate, insert a 1.5 mm allen
key into the allen key slot and turn
clockwise as shown.
• The detector can also be locked into
the wireless module. To do so, prior
to refitting the detector, remove the
cut out (shaded) section as shown.
Page 1 of 2
Example shown:
www.emsgroup.co.uk
XPA-OP-12034-APO
Radio Detector Base
IDENT
PRESS HERE T O
LOG ON
XPA-WB-10022-APO
63 mm
Part number Description
XPA-WB-10022-APO XPander Address Module
XPA-OH-13032-APO XPander Multisensor Detector (Optical/Heat)
XPA-HT-11170-APO XPander Heat Detector (A1R)
XPA-HT-11171-APO XPander Heat Detector (CS)
XPA-OP-12034-APO XPander Optical Smoke Detector
2 Components
1 2
1 Dust cover, 2
4 Battery retaining plate,
4 Power device
• When fitting / replacing batteries; observe correct polarity, using only
specified batteries.
• Connect the power jumper across the PIN header.
SIZE AA
6 Device unlocking
• To unlock the detector from the
wireless module, insert a 1.5mm allen
key and lever the allen key towards the
outside of the device whilst turning
the detector anticlockwise to release
as shown.
• To unlock the wireless module from
the mounting plate, insert a 1.5 mm
allen key and turn anticlockwise to
release as shown.
3 4
Detector, 3 Wireless Module,
5 Mounting plate
device
unpowered
(pins unlinked)
device
powered
(both pins linked)
39214-394/Issue 8 26/06/2024 AJM
