Battery Type
6 x AA, 1.5V Alkaline Duracell Procell (MN1500, LR6)
When replacing batteries, allow the device to power down for a period of two minutes
before installing replacements.
Note: When replacement batteries are required all batteries must be replaced together.
Technical Data
Operating voltage
Operating temperature
© Apollo Fire Detectors Limited 2006-2010
Apollo Fire Detectors Limited, 36 Brookside Road, Havant, Hampshire, PO9 1JR, UK
Tel: +44 (0) 23 9249 2412 Fax: +44 (0) 23 9249 2754
Email: techsales@apollo-fire.co.uk Website: www.apollo-fire.co.uk
39214-394/Issue 3
2.8-5VDC
–10°C to +50°C

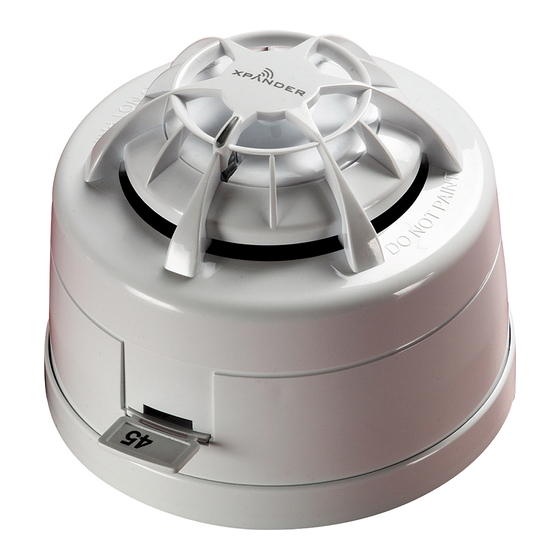

XPander Smoke and Heat Detectors
Installation Guide
General
Do not install any XPander equipment until a full site survey has been completed using the
XPander site survey tool. A maximum of 5 interfaces are permitted for each site. For sites
that require more than 5 interfaces please contact Apollo. All installation engineers must
have had certified XPander training.
The XPander smoke and heat detector variants are available under the following part
numbers:
Complete Units
Part Number
XPA-CB-12034-APO
XPA-CB-13032-APO
XPA-CB-11170-APO
XPA-CB-11171-APO
Spares
Part Number
XPA-WB-10022-APO
XPA-OP-12034-APO
XPA-OH-13023-APO
XPA-HT-11170-APO
XPA-HT-11171-APO
The installation must conform to BS5839-1 (or applicable local codes). All detectors are suit-
able for indoor use only.
Description
XPander Optical detector with base
XPander Multisensor detector with base
XPander Heat A1R detector with base
XPander Heat CS detector with base
Description
XPander Mounting base only
XPander Optical head only
XPander Multisensor head only
XPander Heat A1R head only
XPander Heat CS head only
1
