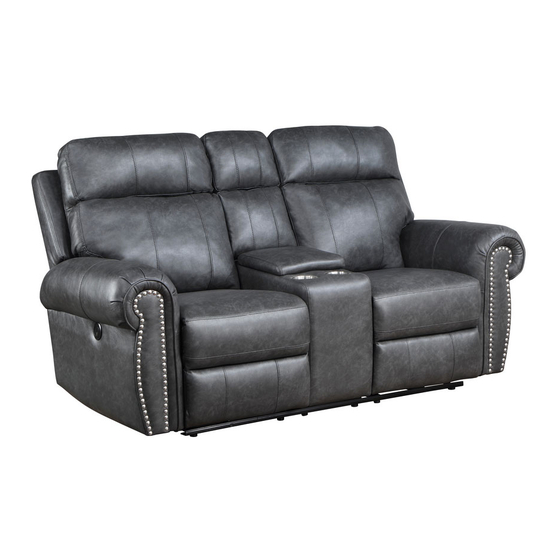

POWER DOUBLE RECLINING LOVE SEAT
The plug with wire stored in the bottom of the seat, please take out
of assembly.
NOTE:
Do not use power tools for assembly. Pow er tools increase the risk
of over tightening which leads to splitting or cracking the wood.
COMPONENT LIST (LOVE SE AT )
NO.
DRAWING
A
B
C
D
E
ASSEMBLY INSTRUCTION
ITEM NO: 9488GY-2PW
WITH CENTER CONSOLE
PAGE 1 OF 3
QTY
DESCRIPTION
1
SEAT
LSF BACK REST
1
CONSOLE
1
BACK REST
1
RSF BACK REST
PLUG WITH
1
WIRE
