Note: Do not use power tools for assembly. Power tools increase the
risk of over tightening which lead to spliting or cracking the wood.
Component list
No
A
B1
B2
C
D
E
F
G
H
Assembly Instruction
ITEM N0.: 9489GRY-1
Drawing

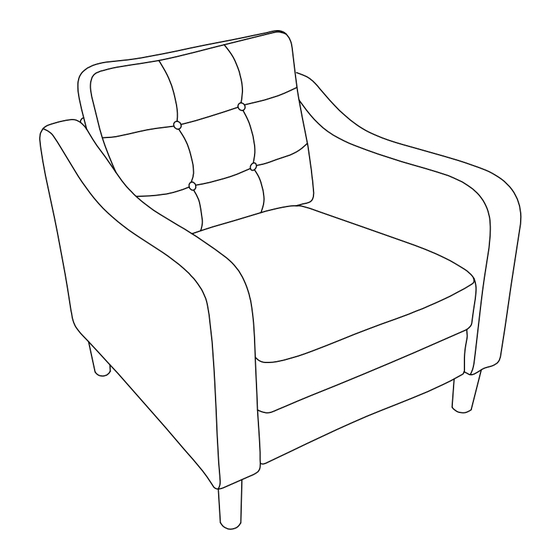

CHAIR
Qty
1
LSF ARM 1PC
1
RSF ARM 1PC
1
1
1
SUPPORT BAR
4
WOODEN LEG/W PLASTIC WASHER
2
(#1/4"*35mm)
FLATWASHER
2
(#1/4"*16*1.5mm)
ALLEN KEY
1
(M4*59mm)
1
Description
SEAT
BACK REST
BOLT
Advertisement
Related Manuals for Homelegance 9489GRY-1
Summary of Contents for Homelegance 9489GRY-1
- Page 1 Assembly Instruction CHAIR ITEM N0.: 9489GRY-1 Note: Do not use power tools for assembly. Power tools increase the risk of over tightening which lead to spliting or cracking the wood. Component list Drawing Description SEAT LSF ARM 1PC RSF ARM 1PC...
- Page 2 Step #1 Step #2 ARM LSF ARM RSF ARM LSF ARM RSF Step #3 Step #4 ARM LSF ARM RSF...
- Page 3 Step #5 Assembly completed. Care Instruction for fabric Furniture: In order to maintain the original appearance of your fabric Furniture, please follow below simple care procedures: • Avoid exposing furniture directly to sunlight or heating and air conditioning outlets. Sunlight and/or exposure to heating and air conditioning outlets will fade/damage fabric.
