Model 915
OWNER'S MANUAL
pw915101
May, 2022
915 Trailer Winch
August, 2024
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POWERWINCH 915
Summary of Contents for POWERWINCH 915

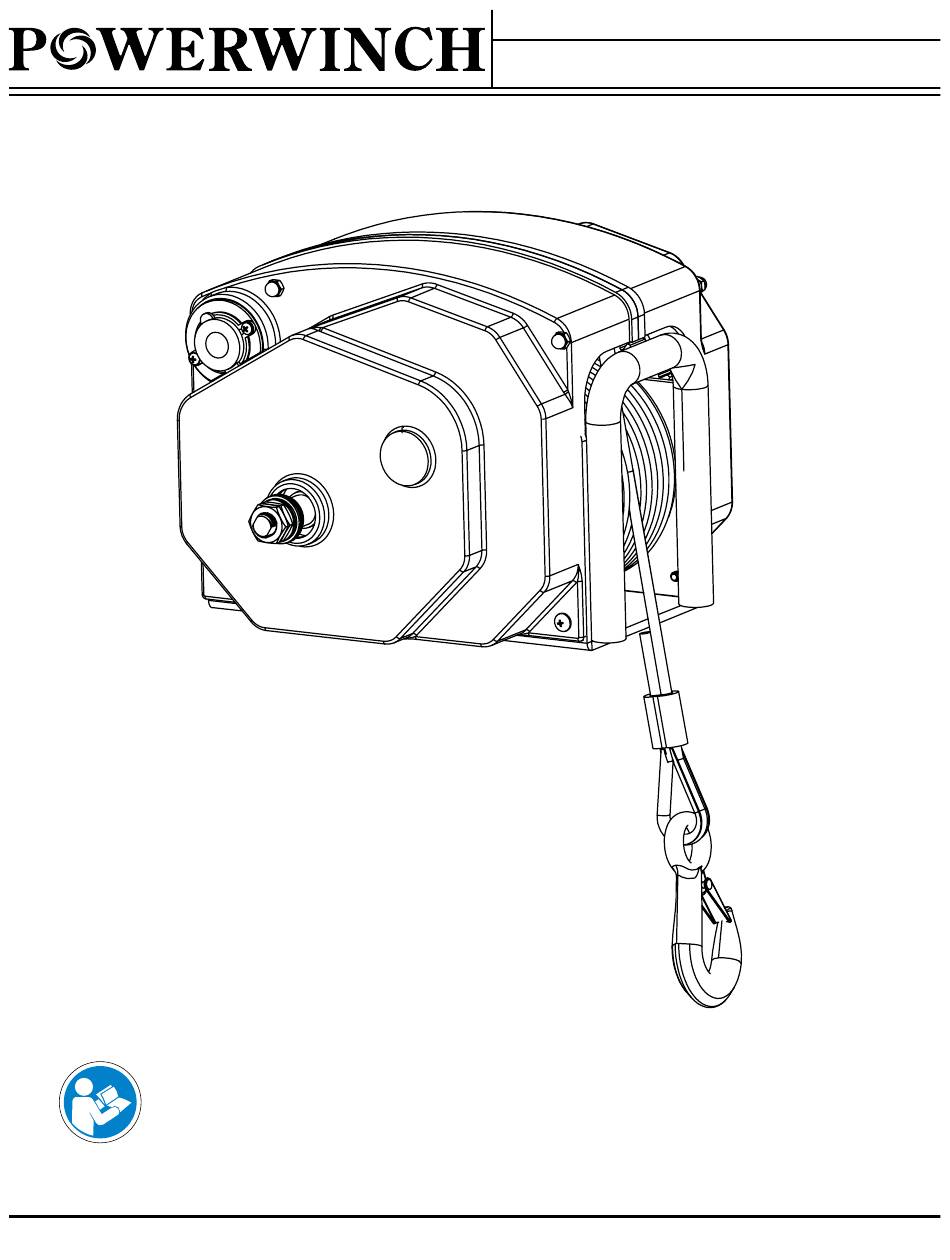

- Page 1 WNER ANUAL Model 915 OWNER’S MANUAL 915 Trailer Winch RAILER INCH Setup with double line pull (pulley block) pw915101 12 Volt Powered Winch Power-In / Power-Out Operation Hand Held Wired Remote Control Thoroughly read the manual furnished with this product and be Thoroughly read manual furnished with this product and be familiar with familiar with the controls.
-
Page 2: Table Of Contents
PROPRIETARY STATEMENT The Powerwinch 915 Trailer Winch is a product of Scott Fetzer Electrical Group or SFEG, located in Fairview, Tennessee, USA. The information contained or disclosed in this document is considered proprietary to SFEG. Every effort has been made to ensure that the information presented in this document is accurate and complete. -
Page 3: Safety Information
SAFETY INFORMATION The following Safety Precautions Must be Followed at ALL Times. Failure to follow warnings and cautions in this manual could result in serious injury and/or property damage. This product can expose you to chemicals including Di-isodecyl phthalate (DIDP), Vinyl Chloride and Cumene, which are known to the state of California to cause cancer or birth defects or other reproductive harm. -
Page 4: Specifications
SPECIFICATIONS Various load conditions affect winch performance. The line pull required for a specific application depends on the weight of the load, condition of the trailer rollers, and the degree of the loading ramp incline. The charts below are based on a single line pull and provided as a guideline in calculating pulling capabilities. Cable fasteners on this or any winch are not designed to hold rated loads independently. -
Page 5: Installation
915 Trailer Winch Powerwinch INSTALLATION MOUNTING THE UNIT The following instructions are for standard mounting of the winch. The winch can be mounted on the trailer in the same position and location as an existing hand winch. 1. Remove existing hand winch. -
Page 6: Wiring Unit
915 Trailer Winch Powerwinch WIRING UNIT ALWAYS disconnect battery before working on electrical equipment. ALWAYS use recommended wire size and rated circuit breakers. Failure to use furnished and recommended sizes can cause a fire hazard and void warranty. NOTICE ALWAYS avoid sources of heat when routing wiring. -
Page 7: Operation
915 Trailer Winch Powerwinch OPERATION To avoid personal injury and property damage, ALWAYS clear area around and behind boat of people, animals, and obstructions before loading or unloading boat. NEVER stand between load or anchor point and winch. Serious personal injury could occur if cable breaks. -
Page 8: Emergency Hand Crank
915 Trailer Winch Powerwinch EMERGENCY HAND CRANK An emergency hand crank is available when there is no power (i.e. dead battery). NEVER use hand crank to assist a running motor. Serious personal injury can occur. 1. Disconnect wire harness from winch. -
Page 9: Replacing Cable
915 Trailer Winch Powerwinch REPLACING CABLE ALWAYS use Powerwinch replacement cable. Winch rating and cable strength are matched for safe and optimum performance. NEVER replace the cable with rope. CAUTION ALWAYS wear leather gloves when handling the cable. Steel cable can cause serious damage to hands. -
Page 10: Troubleshooting Guide
915 Trailer Winch Powerwinch TROUBLESHOOTING GUIDE Winch Does Not Operate Confirm power to winch. Correct as required. 1. Check vehicle battery is fully charged. 2. Confirm connections are for tight & clean. 3. Check wires are worn or bare that may cause shorts. -
Page 11: Illustrated Parts List
915 Trailer Winch Powerwinch ILLUSTRATED PARTS LIST INTERNAL PARTS... - Page 12 915 Trailer Winch Powerwinch Notes Item Description R1000 Motor Kit R1018 1st Shaft Gear Kit R1019 1st Shaft Kit R1020 2nd Shaft Blank Gear Kit R1021 1st/2nd Shaft Accessory Kit R1006 2nd Shaft 57T Gear Kit R1007 2nd Shaft Kit...
-
Page 13: External & Accessories
915 Trailer Winch Powerwinch ILLUSTRATED PARTS LIST EXTERNAL & ACCESSORIES 3 - Includes all assembly hardware. - Page 14 915 Trailer Winch Powerwinch Notes Item Description R2009 Cover Kit R2010 Power/Switch/Relay Kit Case Hardware Kit R2008 Wiring Harness Kit R3001 R3008 Crank Handle Kit Pulley Block Kit R3000 Remote Control Kit R3002...
-
Page 15: Warranty
Powerwinch WARRANTY SFEG warrants to the FIRST retail Purchaser that the Powerwinch Product described in this manual is free of defects in material and workmanship within the terms and conditions as set forth below. SFEG’s obligation under this warranty is limited to the repair or replacement, at SFEG’s option, of any defective component within the stated warranty period. - Page 16 915 Trailer Winch Powerwinch For Your Records: Dealer/Installer NAME: ADDRESS: PHONE: PURCHASE DATE: PART NUMBER: SERIAL NUMBER: PRODUCT NAME/ DESCRIPTION: Retain your original proof of purchase. It is required for all warranty repairs and returns.
