Summary of Contents for CTC Union FMC-10
- Page 1 User Guide FMC-10/100 10/100Base-TX to 100Base-FX Fiber Media Converters sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2022 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Introduction .................. 4 Features ..................4 Specifications ................5 LAN I ....................5 NTERFACE ..................... 5 PTICAL NTERFACE ......................5 OWER ..................... 5 ECHANICAL & S ..............6 PERATION TORAGE EMPERATURE MTBF (MIL-HDBK-217) ................... 6 ....................6 ERTIFICATION Panel ..................... -
Page 4: Introduction
Introduction The FMC-10/100 Series gives you the option to choose from the most popular fiber cabling connectors. The FMC-10/100 provides you with ST, SC or FC connectors for your fiber optic cables and RJ-45 port for 10/100Base-TX twisted pair cable connection. The factory default... -
Page 5: Specifications
Specifications LAN Interface • Standards: IEEE802.3 (10Base-T), 802.3u (100Base-TX) • Speed: 10/100Mbps • Connector Type: 1 x RJ-45 connector • Duplex Mode: Full duplex • Cable Type: Cat. 5, 5e or higher Optical Interface • Standards: IEEE802.3u (100Base-FX) • Connector: Fixed fiber type (SC, ST, FC) •... -
Page 6: Operation & Storage Temperature
Operation & Storage Temperature • Operating Temperature: 0°C~50°C • Storage Temperature: -10°C~70°C • Humidity: 10~90% (Non-condensing) MTBF (MIL-HDBK-217) • 65,000 Hours Certification • CE • FCC... -
Page 7: Panel

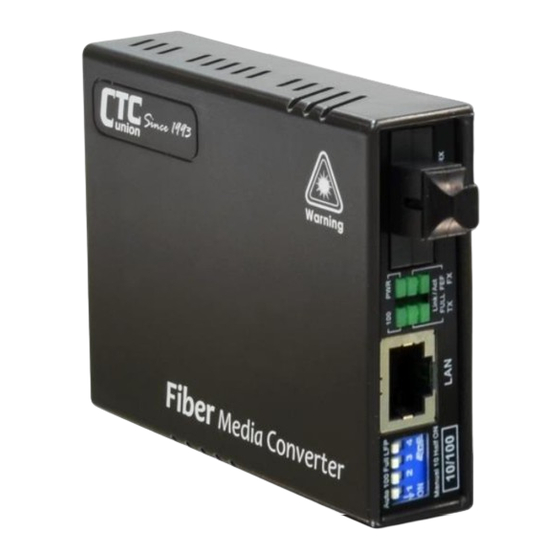

Panel ➢ FMC-10/100 (Adapter type) ➢ FMC-10/100-AC (Built-in AC Power Type) ➢ FMC-10/100-DC (Built-in DC Power Type) Descriptions Description LAN RJ-45 connector Adapter power input Fixed fiber port AC power input DIP switch DC power input LED indicators... -
Page 8: Dip Switch
DIP Switch Pole No. Function Status Function Description OFF* Auto mode. UTP Mode Manual mode. OFF* 100Mbps. UTP Speed 10Mbps. OFF* Full duplex. UTP Duplex Half duplex. OFF* LFP function is off. Link Fault Pass Through LFP function is on. NOTE 1: By default, all DIP switches are set to OFF position (marked with *). -
Page 9: Wall Mounting Option
Wall Mounting Option FMC-10/100 standalone media converters have the option of adding wall mount capability. One wall mount kit is required for installing a single standalone unit on the wall. Each wall mount kit provides all the necessary hardware for a complete installation. -
Page 10: Connection Examples
Connection Examples Connect the Ethernet cable to the Fiber Media Converter. The converter will sense whether to operate in Full or Half mode and will be indicated on the LED. Follow the connection examples below. Install the fiber converter with the AC power adapter, AC , or DC power cord . ➢... - Page 11 Version Date Description 2022/2/18 Plastic case housing Single page format...
