EVM User's Guide: TRF0208SEP, TRF0208SP
TRF0208SEP/SP Evaluation Module
Description

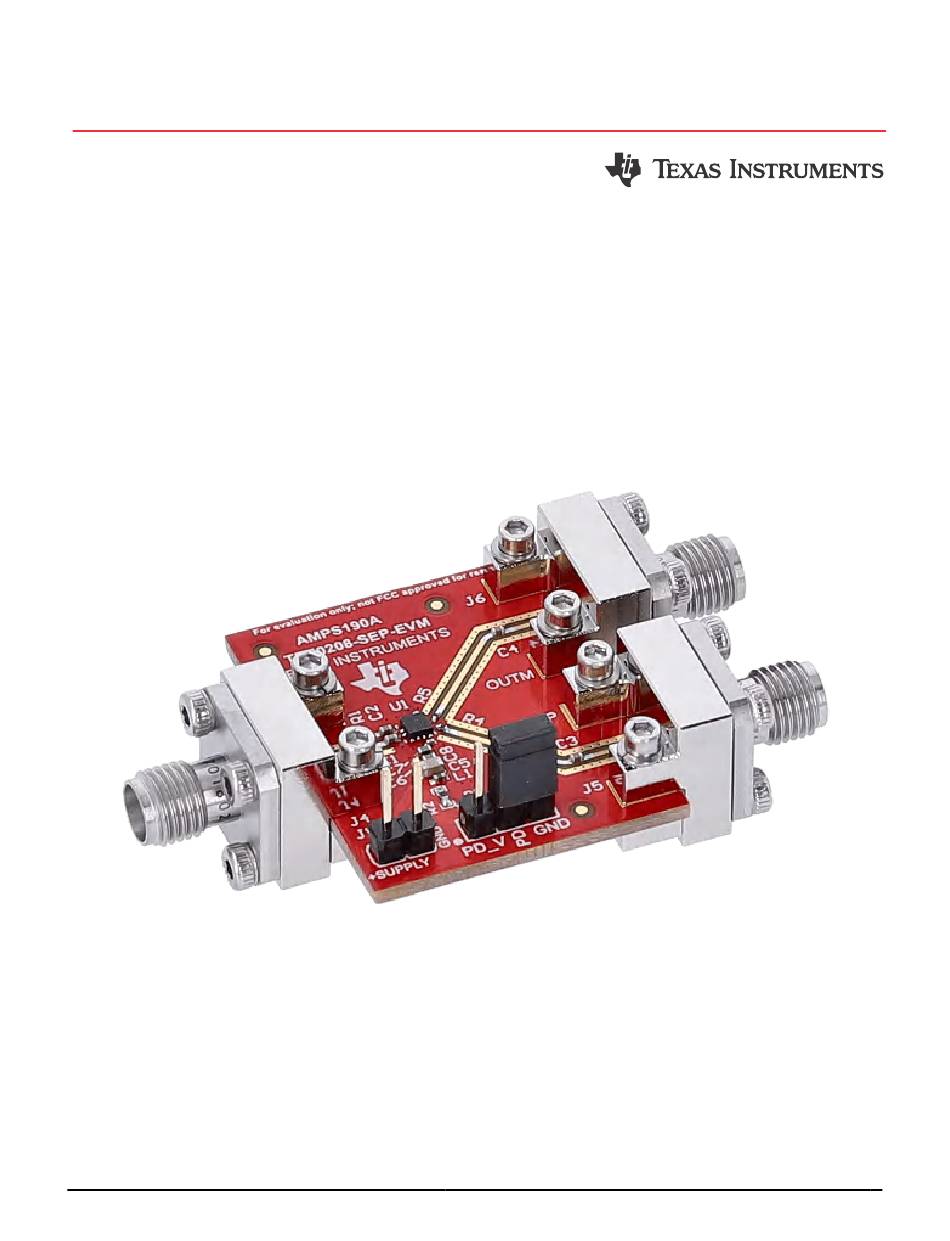

The TRF0208SEP/SP evaluation module (EVM) is
used to evaluate the TRF0208SEP/SP device, which
is a single-ended input to differential output RF
amplifier available in a 2 × 2mm
package. The device is designed to drive a high-
speed differential input ADC without using a passive
balun.
The board is set up for 50Ω single-ended input
matching. The amplifier has a low output impedance.
The board has ac-coupling capacitors at input and
SLAU891A – MARCH 2023 – REVISED JULY 2024
Submit Document Feedback
2
, 12-pin WQFN
TRF0208SEP-EVM
Copyright © 2024 Texas Instruments Incorporated
output. The EVM is ready to connect to a +3.3V
power supply, signal source, and test instruments for
the measurements.
Features
Operates on a single +3.3V supply.
Designed for a single-ended 50Ω input matching.
Simple interface to the inputs and output through
onboard SMA connectors.
Power down option available onboard using a
jumper connector.
TRF0208SEP/SP Evaluation Module
Description
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRF0208SEP and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TRF0208SEP

  • Page 1 The EVM is ready to connect to a +3.3V power supply, signal source, and test instruments for The TRF0208SEP/SP evaluation module (EVM) is the measurements. used to evaluate the TRF0208SEP/SP device, which is a single-ended input to differential output RF Features amplifier available in a 2 × 2mm , 12-pin WQFN •...
  • Page 2: Kit Contents

    The basic steps and functions that are required to verify the proper operation and quick setup of the TRF0208SEP/SP-EVM. This document also includes a schematic diagram, a bill of materials (BOM), printed- circuit board (PCB) layouts, and test block diagrams is outlined in this document. Throughout this document, the abbreviations EVM, TRF0208SEP/SP EVM and the term evaluation module are synonymous with the TRF0208SEP-EVM and TRF0208SP-EVM, TRF0208-SEP EVM unless otherwise noted.
  • Page 3 4. Matching considerations: a. TRF0208SEP/SP is a wide-band amplifier and expects 50Ω input matching over the operating bandwidth up to about 12GHz. A signal generator or noise source that drives this EVM has 50Ω...
  • Page 4 3. Make sure the frequency sweep and output power level from the VNA is set within the linear operating range of the TRF0208SEP/SP devices. The resolution bandwidth (RBW) and dynamic range of the VNA can be adjusted to give optimum sweep time for the measurement.
  • Page 5 4. If the loss after the device output is significant, then remember to factor the output loss into the NF measurement. Use the Friis equation to calculate the Noise Figure of the device from the total measured NF. SLAU891A – MARCH 2023 – REVISED JULY 2024 TRF0208SEP/SP Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 3. Texas Instruments recommends to keep the output power level within the linear operation range of the TRF0208SEP/SP device. For example, if the total desired output power at the device is 8dBm, then set the signal generators such that each of the fundamental output power results in 2dBm per tone. As a general rule, TI recommends to keep the total output power level approximately 6 to 8dB lower than the 1dB compression point.
  • Page 7 Hardware Design Files 4 Hardware Design Files 4.1 Schematic Figure 4-1 shows the TRF0208SEP/SP EVM schematic. Figure 4-1. TRF0208SEP/SP EVM Schematic SLAU891A – MARCH 2023 – REVISED JULY 2024 TRF0208SEP/SP Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 PCB layers for this EVM. Figure 4-3. Layer 2 Figure 4-2. Top Layer Figure 4-5. Bottom Layer Figure 4-4. Layer 3 TRF0208SEP/SP Evaluation Module SLAU891A – MARCH 2023 – REVISED JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 Hardware Design Files 4.2.1 Stack-Up and Material The TRF0208SEP/SP EVM is a 4-layer board whose material type is Isola ® 370HR. The top layer routes the power, ground, and signals between SMA connectors and the device. Second layer is the reference RF ground layer.
  • Page 10 Hardware Design Files www.ti.com 4.3 TRF0208SEP/SP EVM Bill of Materials Table 4-1. TRF0208SEP-EVM BOM Alternate Part Alternate Item # Designator Quantity Value Description Package Reference Part Number Manufacturer Number Manufacturer C1, C2, C3, C4 0.1µF CAP, CERM, 0.1µF, 16V, ± 10%, X7R, 0402...
  • Page 11 Fiducial mark. There is nothing to buy or mount. R6, R7 RES, 0.1, 1%, 0.25 W, 0402 0402 ERJ2BWFR100X Panasonic SLAU891A – MARCH 2023 – REVISED JULY 2024 TRF0208SEP/SP Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12: Related Documentation

    All trademarks are the property of their respective owners. 6 Related Documentation For related documentation, see the following: • Texas Instruments, TRF0208SEP 10MHz to 11GHz 3dB BW, ADC Driver Amplifier data sheet • Texas Instruments, TRF0208SP Radiation-Hardness-Assured (RHA), Near-DC to 11GHz, Fully Differential,...
