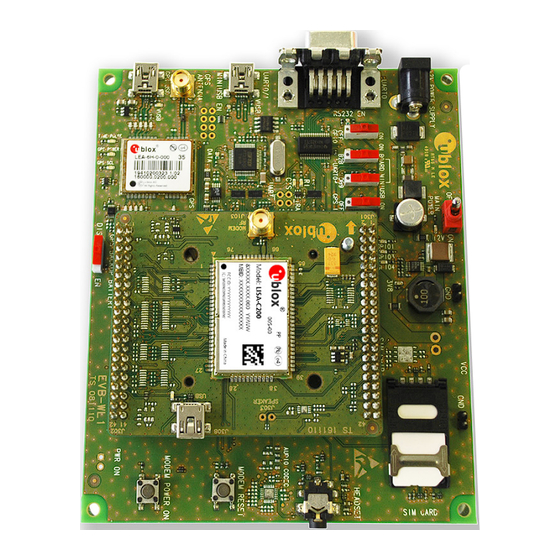

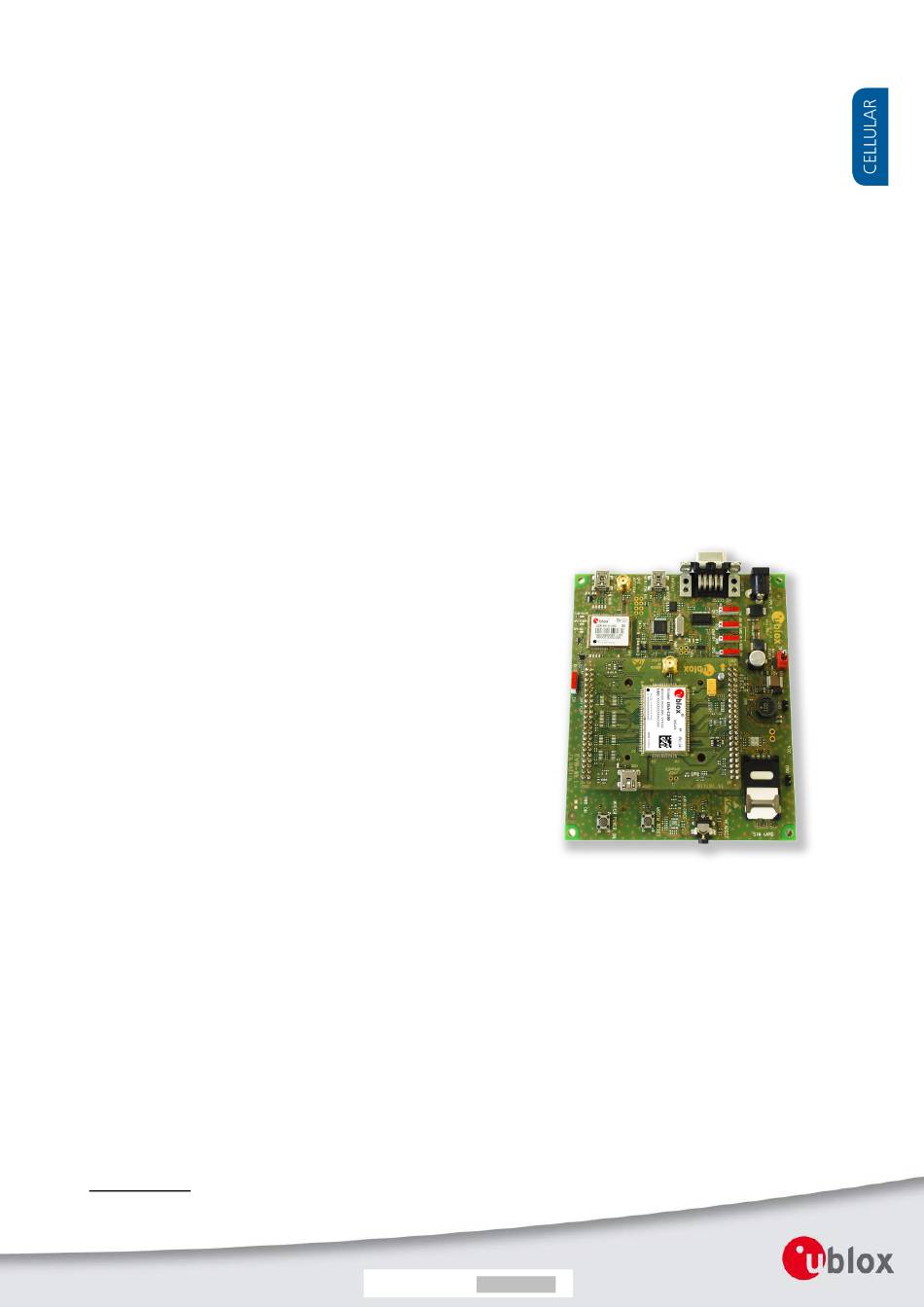

- Page 1 EVK-C20 CDMA2000 1xRTT cellular evaluation kit User Guide Abstract This guide explains how to set up the EVK-C20 Evaluation Kit to begin evaluating u-blox CDMA2000 1xRTT cellular modules. www.u-blox.com UBX-14040024 - R02 Downloaded From Oneyac.com...
- Page 2 EVK-C20 - User Guide Document Information Title EVK-C20 Subtitle CDMA2000 1xRTT cellular evaluation kit Document type User Guide Document number UBX-14040024 Revision, date 15-Oct-2014 Document status Production Information Document status explanation Objective Specification Document contains target values. Revised and supplementary data will be published later.
-
Page 3: Preface
Products marked with this lead-free symbol on the product label comply with the “Directive 2002/95/EC of the European Parliament and the Council on the Restriction of Use of certain Hazardous Substances in Electrical and Electronic Equipment” (RoHS). EVK-C20 evaluation kits are RoHS compliant and green (no halogens). Technical Support Worldwide Web Our website (www.u-blox.com) is a rich pool of information. -
Page 4: Table Of Contents
Board Setup ............................11 Settings .............................. 12 Appendix .......................... 14 A Setting up AT terminal applications for communication with EVK-C20 ....14 How to set up Hyper Terminal for AT commands ................14 Related documents......................15 Revision history ........................ 15 Contact .......................... -
Page 5: Starting Up
EVK-C20 - User Guide 1 Starting up EVK-C20 is a powerful and easy to use tool that makes evaluating u-blox CDMA200 1xRTT modules simple. This section describes the main connections and settings required to get started. Refer to LISA-C200 Data Sheet [2] and LISA-C200 and FW75-C200 System Integration Manual [3] for the features supported by LISA-C200 modules. -
Page 6: Evk-C20 Block Diagram
EVK-C20 - User Guide 1.1 EVK-C20 Block diagram Figure 2 shows the main interfaces and internal connections of the EVK-C20: Native Wireless RS232/UART RS232/UART converter UART switches UART Headset (B2B connector, USB or RS232) Wireless USB/UART USB/UART converter Wireless module... -
Page 7: Leds
Bicolor LISA-C Trace LED LEON Trace TX or RX data DL503 CTS indicator CTS line turns ON (active low) DL506 Table 2: EVK-C20 LEDs description 1.4 Connectors Function Description Name 9 - 18 V Power Input +12 V AC/DC power adapter input for the whole evaluation kit supply... -
Page 8: Evk-C20 Pinout
EVK-C20 - User Guide 1.5 EVK-C20 Pinout DIL Name/Pin Number LISA Signal Name LISA Pin N° LISA Pin N° LISA Signal Name DIL Name/Pin Number J302 Pins 7-8-9-10 J302 Pins 7-8-9-10 J302 Pin 3 RSVD J302 Pins 7-8-9-10 J302 Pins 7-8-9-10... -
Page 9: Software Installation
EVK-C20 - User Guide 1.6 Software installation Installation of the EVK-C20 software and documentation requires Internet access. The USB driver can be downloaded from the Web; see the Quick Start card [5] for the URL. Save the executable file to any location of the hard drive on the computer. Start the installation by running the executable file on the Windows operating system computer.. - Page 10 EVK-C20 - User Guide Installing the USB driver on Linux: No drivers are need on Linux systems. However, the device vendor and product ID must be configured in the Linux configuration file. To set this up follow these steps: 1. On a Linux operating system open a terminal and change directory path to /etc/ There should be file named “modules”, use a selected editor such as VI as an example, and open...
-
Page 11: Board Setup
EVK-C20 - User Guide 1.7 Board Setup Connect CDMA antenna with SMA connector to Cellular Antenna (SMA female connector). Connect GPS antenna to GPS Antenna (if required). Connect power adapter to 9 – 18 V Power Input connector (J400) (+12 V). DL401 lights blue. -
Page 12: Settings
EVK-C20 - User Guide Type of connections SW401 SW403 Access to cellular UART interface by Cellular module USB / UART (mini USB) connector ON BOARD MINIUSB DL403 Access to cellular UART interface by Cellular module RS232 / UART (DB9) connector... - Page 13 EVK-C20 - User Guide Figure 4: ttyUSB1 is shown when the cellular module is connected to the host via USB connector UBX-14040024 - R02 Production Information Starting up Page 13 of 13 Downloaded From Oneyac.com...
-
Page 14: Appendix
2. Set the name for connection (e.g. “u-blox Cellular Module”), then press OK. 3. Select the PC serial port (for example COM6, check with the Device Manager which port is being used by EVK-C20), then press OK. 4. Select the settings shown here for EVK-C20 serial port settings;... -
Page 15: Related Documents
EVK-C20 - User Guide Related documents u-blox LISA-C200 and FW75-C200 AT Commands Manual, Docu No UBX-13000621 u-blox LISA-C200 Data Sheet, Docu No UBX-13000623 u-blox LISA-C200 and FW75-C200 System Integration Manual, Docu No UBX-13000620 All these documents are available on our homepage (http://www.u-blox.com). -
Page 16: Contact
EVK-C20 - User Guide Contact For complete contact information visit us at www.u-blox.com u-blox Offices North, Central and South America Headquarters Asia, Australia, Pacific Europe, Middle East, Africa u-blox America, Inc. u-blox Singapore Pte. Ltd. u-blox AG Phone: +1 703 483 3180... - Page 17 单击下面可查看定价，库存，交付和生命周期等信息 >>U-BLOX(优北罗) Downloaded From Oneyac.com...
