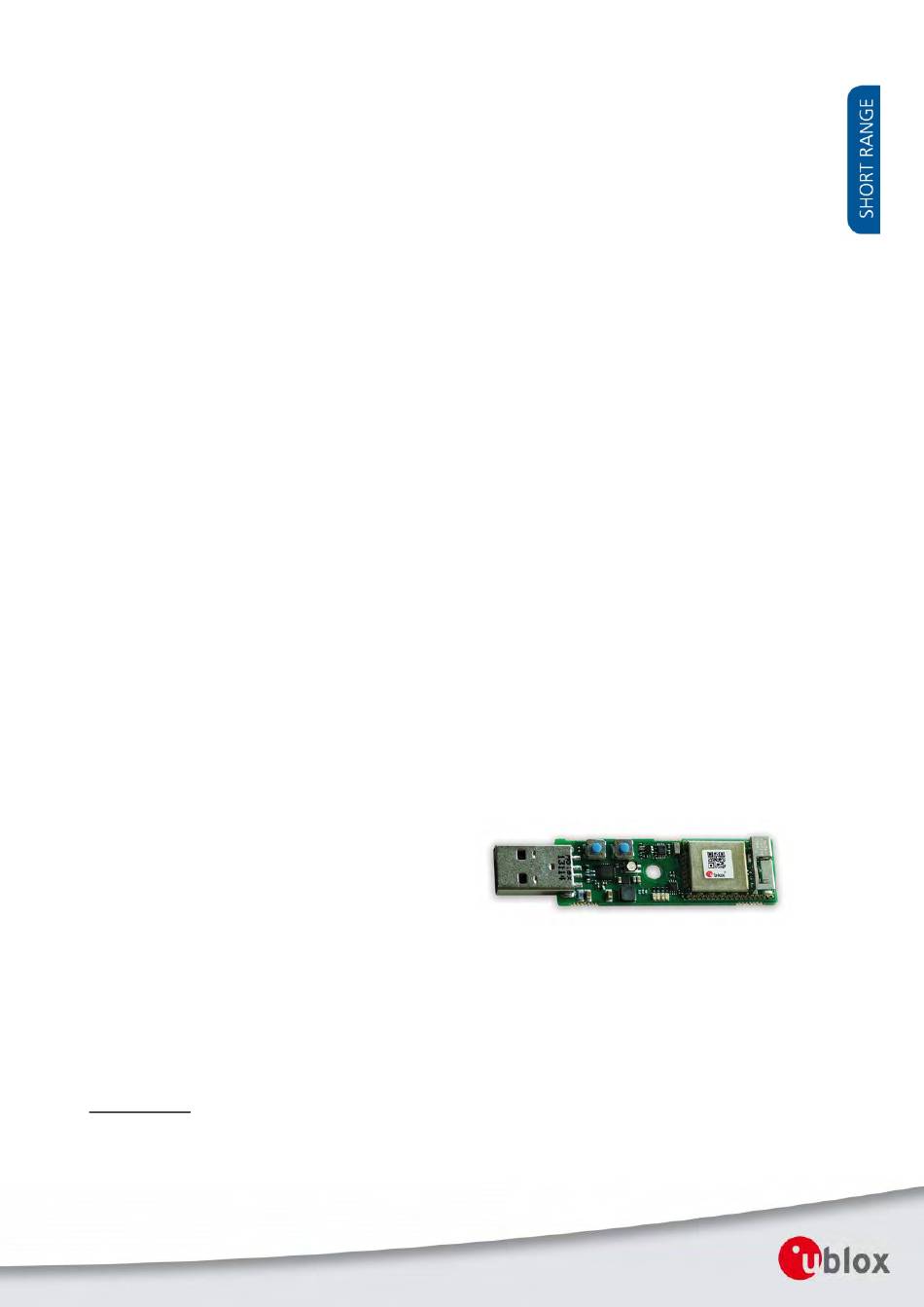

- Page 1 EVK-W262U Evaluation kit for ODIN-W2 series User Guide Abstract This document describes how to set up the EVK-W262U evaluation kit to evaluate u-blox ODIN-W2 series with UART communication. www.u-blox.com UBX-15020900 - R04...
- Page 2 EVK-W262U - User Guide Document Information Title EVK-W262U Subtitle Evaluation kit for ODIN-W2 series Document type User Guide Document number UBX-15020900 Revision, date 26-May-2017 Disclosure restriction This document applies to the following products: Product name Type number Firmware version PCN reference...
-
Page 3: Table Of Contents
EVK-W262U - User Guide Contents Contents ..........................3 Introduction ........................4 Overview .............................. 4 1.1.1 Features ............................4 1.1.2 System requirements ......................... 4 1.1.3 Specifications ............................ 5 Block diagram ............................5 Connectors ............................5 LEDs ..............................5 System modes ............................6 Buttons .............................. -
Page 4: Introduction

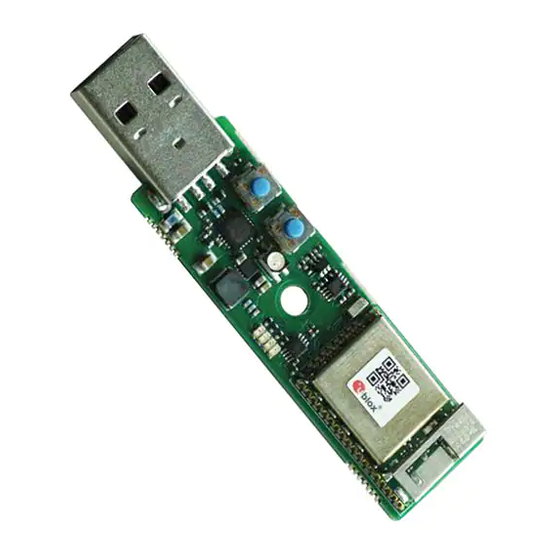

EVK-W262U - User Guide 1 Introduction This document describes how to set up the u-blox EVK-W262U evaluation kit to evaluate the ODIN-W2 series modules with UART communication. 1.1 Overview The ODIN-W2 is a compact and powerful stand-alone multiradio module, designed for Internet-of-Things gateway ®... -
Page 5: Specifications
Figure 2: Block diagram of main components of EVK-W262U The EVK-W262U evaluation kit uses only one USB interface to communicate with the evaluation software and for power supply. A DC/DC step down voltage converter (U1) supplies the ODIN module with a 3.3 V system voltage. -
Page 6: System Modes
EVK-W262U - User Guide Function Description Name Color Blinks when data is being transmitted to the PC Yellow Blinks when data is being received from the PC Green Lit when the UART RTS signal is asserted Yellow Lit when the UART CTS signal is asserted... -
Page 7: Getting Started
Internet connection is required for downloading the FTDI driver in the EVK-W262U evaluation kit. 2.1 Software installation The EVK-W262U can be used together with the s-center software tool. The s-center software tool can be downloaded from u-blox website. Download and run the executable. The software components will be installed on your system and placed under the “u-blox”... -
Page 8: Using The S-Center
EVK-W262U - User Guide 2.3.2 Using the s-center Once you establish connection with the COM port, the main screen will be shown. The Basic Connection tab enables you to perform some simple tasks like finding other devices and setting up connections. -
Page 9: Get And Set Configuration
EVK-W262U - User Guide 2.3.3 Get and set configuration The Get All and Set All are used to get and set a complete configuration to the ODIN-W2. Nothing will be stored in flash until the Store button is clicked. That will store the current configuration into the flash of the ODIN-W2 and will be used when the module starts up after a reset. -
Page 10: Basic Bluetooth Operation
EVK-W262U - User Guide 2.3.4 Basic Bluetooth operation Finding other units Clicking the Bluetooth Inquiry initiates a search for other Bluetooth devices and the results are shown after 5 seconds. Figure 6: Bluetooth inquiry in s-center Select device If the s-center finds some Bluetooth devices, it will be shown in the list as shown in Figure 7. - Page 11 EVK-W262U - User Guide Connect to device Select the device you want to connect to and press Connect Peer to establish a connection. If the other device is also an ODIN-W2, it accepts and establishes the connection. If there are other devices, some actions must be taken.
-
Page 12: Basic Wi-Fi Operation
EVK-W262U - User Guide 2.3.5 Basic Wi-Fi operation Finding other units Clicking the Wi-Fi Scan initiates a search for other Wi-Fi Access Points and the results are shown after about 5 seconds.. Figure 10: Scanning for Wi-Fi Networks in s-center... -
Page 13: Restoring Default Factory Settings
EVK-W262U - User Guide 2.5 Restoring default factory settings While evaluating, if the current serial interface settings are lost or the interface becomes unresponsive, it might be necessary to perform a factory settings restore. Following the steps mentioned below will result in a complete restore of the settings of the serial interface and the current AT-configuration to factory defaults. -
Page 14: Appendix
EVK-W262U - User Guide Appendix A List of acronyms Abbreviation / Term Explanation / Definition Bluetooth Controller Area Network DHCP Dynamic Host Configuration Protocol Firmware Ground GPIO General Purpose Input Output High Input (means that this is an input port of the module) -
Page 15: Related Documents
EVK-W262U - User Guide Related documents u-blox Short Range Modules AT Commands Manual, Document Number UBX-14044127 ODIN-W2 series Data Sheet, Document Number UBX-14039949 ODIN-W2 series System Integration Manual, Document Number UBX-14040040 ODIN-W2 Getting started, Document Number UBX-15017452 Revision history Revision... -
Page 16: Contact
EVK-W262U - User Guide Contact For complete contact information visit us at www.u-blox.com. u-blox Offices North, Central and South America Headquarters Asia, Australia, Pacific Europe, Middle East, Africa u-blox America, Inc. u-blox Singapore Pte. Ltd. u-blox AG Phone: +1 703 483 3180... - Page 17 X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for category: Interface Development Tools Click to view products by manufacturer: U-Blox Other Similar products are found below : CY4607M PEX 8748-CA RDK DP130DSEVM DP130SSEVM ISO3086TEVM-436 SP338EER1-0A-EB ADM00276 ADM3054WBRWZ-RL7 ADP5585CP-EVALZ PEX8724-CA RDK PEX 8732-CA RDK PEX8747-CA RDK PS081-EVA-KIT CHA2066-99F AS8650-DB MLX80104 TESTINTERFACE I2C-CPEV/NOPB ISO35TEVM-434 KIT33978EKEVB 416100120-3 XR17D158CV-0A-EVB XR17V358/SP339-E4-EB XR17V358/SP339-E8-EB XR18910ILEVB XR22804IL56-0A-EB ZSC31150KIT V1.2 SCRUBBER-EVM SI838XISO-KIT 73931-3022...
