Quick Start EVK-C20

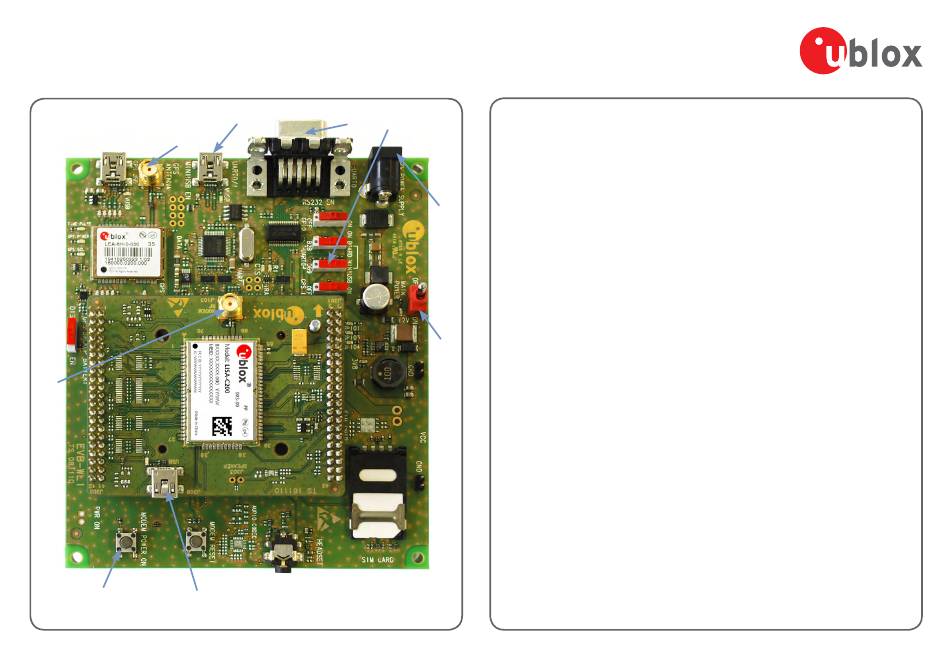

1. Overview
2
1
5
6
Copyright © 2013, u-blox AG
7
8 SW403
2. Setup
1. Connect wireless antenna to Wireless Antenna.
2. Connect GPS antenna to GPS Antenna (if required).
3. Connect power adapter to 9 – 18 V Power Input
3
connector (J400) (+12 V). LED DL401 lights blue.
4. To supply power to the board, turn Main Power
(SW400) switch to ON position. LED DL400 lights green.
5. To switch on the wireless module, press the
Module Power ON (SW302) button.
4
6. USB connection: Connect USB cable to LISA-C200
native USB connector
Alternative UART connections:
7. Connect USB cable to mini USB connector
(Wireless USB UART J501).
Switch SW403 must be in position MINIUSB.
8. Connect RS232 cable to RS232 connector
(Wireless Module UART RS232 J500).
Switch SW403 must be in position DB9.
