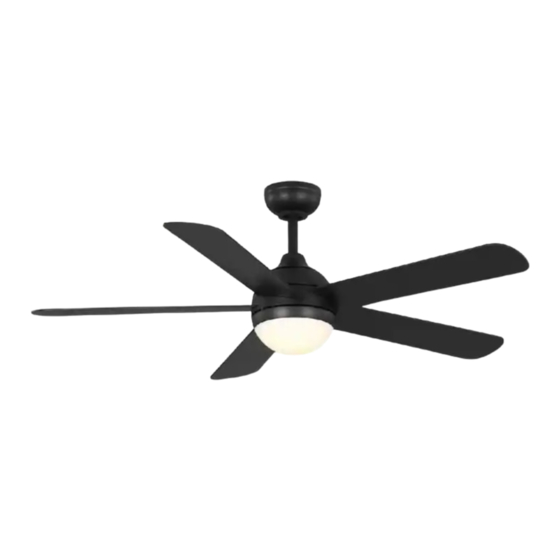

52-inch ceiling fan

Advertisement

Quick Links

Item #1011 954 844,
1011 954 853
Model #59080, 59083
52-MORL-RV4-07182024
USE AND CARE GUIDE
MORLAND 52-INCH CEILING FAN
Questions?
Before returning to the store, call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the item
or model number, found in the top right corner of the cover of
this instruction manual, in the search eld.
2. Click on your product from the list of search results and
Scan for text based
Scan for online product
click on the video link in the "Product Overview" section.
customer support
warranty information
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MORLAND 59080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HAMPTON BAY MORLAND 59080

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
  • Page 2: Table Of Contents

    Table of Contents Safety Information ........2 Installation .
  • Page 3: Warranty

    Warranty The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser.
  • Page 4: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Hanger pin Locking pin Machine screw (remote control wall cradle) Short tapered screw (remote control wall cradle) Long tapered screw (remote control wall cradle)
  • Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Blade (inside canopy) Receiver Ball/downrod assembly Remote control Canopy 3-pin extension wire (motor) Decorative motor collar cover 3-pin extension wire (light) Fan motor assembly Battery Light kit fitter assembly Remote control wall cradle with toggle switch spacer included IMPORTANT: This product and/or components are governed...
  • Page 6: Installation

    Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain WARNING: To reduce the risk of fire, electric shock or proper blade clearance when installing on a steep, personal injury, mount to outlet box marked “Acceptable sloped ceiling. The maximum angle allowable is 15° for fan support of 35 lb (15.9 kg) or less”, and use screws away from horizontal.
  • Page 7: Preparing For Mounting

    Assembly - Standard Ceililng Mount Preparing for mounting NOTE: The magnet is pre-attached on the canopy bottom cover for you to remove and install easily. □ Remove the magnetic canopy bottom cover (JJ) from the canopy (C) by pulling it off. □...
  • Page 8: Assembly

    Assembly - Standard Ceililng Mount (continued) Assembling the fan Routing the wires CAUTION: To ensure wobble-free operation and to IMPORTANT: DO NOT remove the wires from the avoid damage to the fan, the downrod (B) and the plastic bag before routing the wires to the downrod setscrew (KK) must be completely tightened.
  • Page 9 Assembly - Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or personal injury, mount to an outlet box marked “Acceptable for fan support of 35 lb (15.9 kg) or less”, and use screws provided with the outlet box.
  • Page 10: Installing The Receiver

    Assembly - Hanging the Fan (continued) Installing the receiver Making the electrical connections WARNING: To avoid possible electrical shock, turn the WARNING: To reduce the risk of fire or electric electricity off at the main fuse box before wiring. If you shock, remember to disconnect power.
  • Page 11 Assembly - Hanging the Fan (continued) Wire connections - Wire connections - Single wall switch Dual wall switch □ □ On a single switch the fan and light can be turned on or off On a dual switch the fan and light can be turned on or off together.
  • Page 12 Assembly - Hanging the Fan (continued) Wire connections - Mounting the fan motor assembly No wall switch (standard mount) From Fan To Receiver WARNING: When using the standard ball/ 3-pin connector------------------ 3-pin connector downrod mounting, the tab in the ring at the bottom of the slide-on mounting bracket (A) must rest in □...
  • Page 13 Assembly - Attaching the Fan Blades Fastening the blade to the motor NOTE: Blade installation must be properly completed before attaching the light kit. □ Attach a blade (G) to the fan motor assembly (E) by inserting the blade (G) into the slot in the side of CLICK the fan motor housing (E) until it stops.
  • Page 14 Assembly - Attaching the Light Kit Attaching the light kit fitter assembly □ Connect the wires from the light kit assembly (F) to the wires from the fan motor assembly (E) by connecting the 3-pin connector plugs together. Carefully tuck all wires and splices into the switch cup and connect the safety cable (WW) from the light kit assembly (F) to the hook from motor assembly (E).
  • Page 15: Preparing The Remote Control

    Preparing the Remote Control NOTE: The remote control has already been paired to the ceiling fan for your convenience. If the remote control does not communicate with the fan, follow the pairing instructions below. NOTE: The remote control battery will weaken with age and should be replaced before leaking takes place, as this will damage the remote control.
  • Page 16: Operating - Your Fan And Remote Control

    Operating - Your Fan and Remote Control ALL ON/OFF Press and release the ALL button to turn the fan and light on or off. LED speed All On/Off NOTE: On start up your ceiling fan will oscillate back and indicator forth.
  • Page 17 Assembly - Mounting the remote wall cradle NOTE: The remote wall cradle is designed to allow you to access an existing switch. The remote wall cradle can be mounted on the wall or to the face plate of a standard toggle switch or a paddle switch.
  • Page 18: Application Setup

    Application Set-up NOTE: For more information on smart remote set up, please refer to the quick start guide located in the remote pack. NOTE: To use Alexa to change the color temperature of the light, please make sure the light is turned on first. Questions, problems missing parts? Please call Hubspace Customer service Getting started...
  • Page 19: Voice Commands

    Voice Commands The Morland 52 in. LED Indoor/Cover outdoor Smart Color Changing Ceiling Fan works with Alexa and Google Assistant. This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com. ALEXA GOOGLE When you want to...
  • Page 20: Care And Cleaning

    Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □...
  • Page 21 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
