Item #593 530
Model #YG394-3L-ORB
USE AND CARE GUIDE

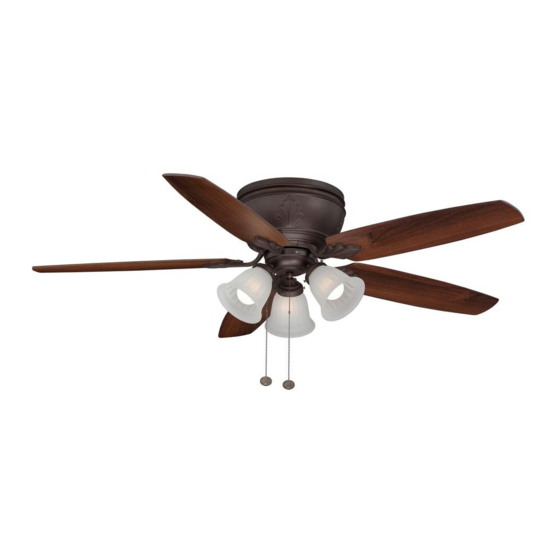

CHASTAIN II 52 INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
THANK YOU
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY CHASTAIN II
Summary of Contents for HAMPTON BAY CHASTAIN II
- Page 1 Item #593 530 Model #YG394-3L-ORB USE AND CARE GUIDE CHASTAIN II 52 INCH CEILING FAN Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Pull Chain Operating Instructions ........... Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Troubleshooting ............Specifications ................Tools Required ................. Service Parts ..............Hardware Included .............. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning. -
Page 4: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Blade attachment screw and fiber washer Plastic wire nut Balance kit (not to scale) Nut (preassembled) Washer (preassembled) Blade arm screw and lock washer (preassembled) Light kit mounting plate screw (preassembled) -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket Motor housing Fan motor assembly Light kit mounting plate Blade Light kit Blade arm Glass shade... -
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or personal injury, mount the fan to an outlet box marked acceptable for fan support using the screws provided with the outlet box. An outlet box commonly used for the support of lighting fixtures may not be acceptable for fan support and may need to be replaced. -
Page 8: Assembly
Assembly — Hanging the Fan Hanging the fan from the Attaching the mounting bracket mounting bracket to the electrical box □ Lift the fan into position by hanging the fan motor WARNING: To reduce the risk of fire, electric shock or assembly (B) onto the hook from the ceiling mounting other personal injury, mount the fan only to an outlet box or bracket (A) allowing it to hang freely. - Page 9 Assembly — Hanging the Fan (continued) Making the electrical connections WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 10 Assembly — Hanging the Fan (continued) Attaching the motor housing Finishing the fan installation to the mounting bracket □ □ Move the fan motor assembly (B) into position over Raise the motor housing (E) up against the mounting the four mounting bracket (A) studs and secure with bracket (A).
-
Page 11: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Attaching the blades to Fastening the blade the blade arms assemblies to the motor □ Attach the blades (C) to the blade arms (D) using the WARNING: To reduce the risk of personal injury, do not three blade attachment screws and fiber washers bend the blade arms (D) while installing, balancing the blades (AA). -
Page 12: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit mounting Finishing the light kit assembly plate to the mounting ring and attaching the glass shades □ While holding the light kit assembly (G) under your CAUTION: Before starting installation, disconnect the fan, snap together the wire connection plugs. -
Page 13: Operation
Operation PULL CHAIN OPERATING INSTRUCTIONS PULL CHAIN OPERATING INSTRUCTIONS Attach the two pull chains and fobs (KK) to the pull chains located on the light kit (G). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low and 4 pulls - Off. -
Page 14: Care And Cleaning
Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □... - Page 15 Troubleshooting (continued) Problem Problem Solution Solution □ Check that all blade and blade arm screws are secure. □ Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade The fan wobbles.
-
Page 16: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket Balance kit Fan motor assembly Nut (preassembled) 5 blades Washer (preassembled) 5 blade arms Blade arm screw and lock washer (preassembled) Motor housing Light kit mounting plate screw (preassembled) Light kit mounting plate Light kit mounting screw (preassembled) Light kit... - Page 17 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. YG394000001-Y...
