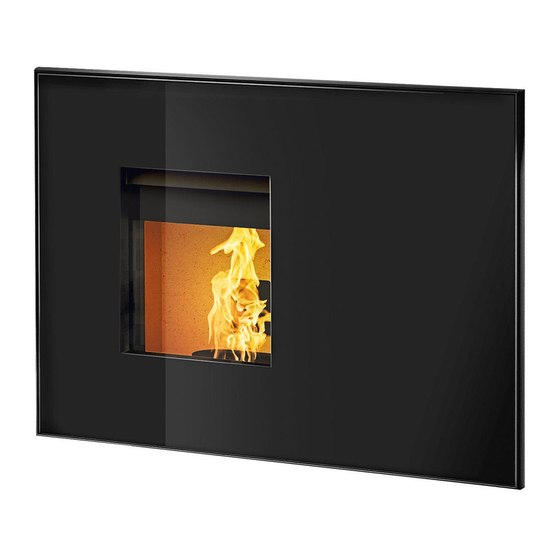

Summary of Contents for RIKA INTERNO

  • Page 1 INTERNO Operating Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE Explanations to symbols ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 Spare part overview exploded diagram �����������������������������������������������������������������������������������������������������������������������������������������������������4 Spare part overview article numbers ���������������������������������������������������������������������������������������������������������������������������������������������������������6 Dimensions ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Amount of fuel �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Technical specifications ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Packaging �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Electrical connection ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 2. IMPORTANT INFORMATION General warning and safety information ��������������������������������������������������������������������������������������������������������������������������������������������������8 First heating����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������8 Safety distances ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������9 Prior to set up �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������9...
  • Page 3: Preface

    7. MAINTENANCE AND CLEANING Open combustion chamber door and pellet container ����������������������������������������������������������������������������������������������������������������������������14 Cleaning of the burn pot - daily �������������������������������������������������������������������������������������������������������������������������������������������������������������14 Cleaning the flame temperature sensor ��������������������������������������������������������������������������������������������������������������������������������������������������14 Cleaning the door glass ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������14 Cleaning painted surfaces �����������������������������������������������������������������������������������������������������������������������������������������������������������������������14 Cleaning �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������14 Cleaning flue pipes ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������14 Cleaning the convection air openings �����������������������������������������������������������������������������������������������������������������������������������������������������15 Cleaning the pellet container ������������������������������������������������������������������������������������������������������������������������������������������������������������������15 Bearings ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������15...
  • Page 4: Spare Part Overview Exploded Diagram

    Spare part overview exploded diagram...
  • Page 6: Spare Part Overview Article Numbers

    Spare part overview article numbers Art.Nr. Description Art.Nr. Description Art.Nr. Description Combustion chamber door N112095 Telescopic rail N112016 Power switch Z35616 black Z35896 Flat sealing Screw motor, stepless with B17494 Combustion chamber door support Z35897 Cleaning opening B17379 assy black B17372 Ceramic ignition N112137...
  • Page 7: Dimensions

    Dimensions Technical specif ications Technical data Heating power range [kW] 2,5 - 7 Room heating capacity (depending on house [m³] 50 - 160 insulation) Fuel consumption [kg/h] up to 1,6 Pellet container capacity* [l/kg] 36/~20 Electric supply [V]/[Hz] 230/50 Average electrical input ~ 50 Fuse 2,5 AT...
  • Page 8: Important Information

    Note RIKA stoves should only be installed in rooms with normal humidity (dry The max. temperature of the convection air is 180° C at the air outlet. areas according to VDE 0100 Part 200). The furnaces are not splash water protected and may not be installed in wet areas.
  • Page 9: Safety Distances

    Safety distances Prior to set up Floor bearing capacity Note Ensure that the substructure is capable of bearing the weight of the stove prior Distance to non-combustible objects: to set-up. a > 40cm b / c ≥ mounting dimensions Note d ≥...
  • Page 10: Brief Information On Fuel - Pellets

    3. BRIEF INFORMATION ON FUEL - PELLETS Your pellet stove is only approved for the burning of pellets of tested quality. What are pellets? Please ask your pellet stove dealer for tested fuel and a list of monitored fuel manufacturers. Wood pellets are a standardised fuel.
  • Page 11: Technology And Safet Y Functions

    4. TECHNOLOGY AND SAFET Y FUNCTIONS The technological advances in your new combi stove are the result of years of Automatic cleaning cycle testing and practical experience. The practical advantages of your pellet stove are convincing: The speed of the flue gas fan is increased every hour for a short period to blow ash from the burn pot, increasing the operational safety.
  • Page 12: Installing The Stove

    Ø50mm (pellet stoves) and fix it with a hose clamp (not included!). We recommend original flue pipes from RIKA for proper connection. At pellet stoves with longer intake pipes than 1m the diameter should be increased to 100mm. (see RIKA range).
  • Page 13: Comfort Options

    6. COMFORT OPTIONS Room sensor, Radio room sensor External room thermostat This option permits control of your stove via room temperature. You can set Your stove has an interface on the rear wall to which you can connect a both the room temperature and the heating times required. A room temperature customary room thermostat.
  • Page 14: Maintenance And Cleaning

    Wipe the painted surfaces with a damp cloth, do not scrub. Do not use solvent- Note containing cleaners. We recommend at least once a year to have all maintenance carried out by your RIKA dealer. Cleaning Note Depending on pellet consumption, a message prompting cleaning of the stove Ash may contain embers –...
  • Page 15: Cleaning The Convection Air Openings

    Pull the stove out of the wall. Remove the top cover. # 10 Mount the removed parts in reverse order. Remove the combustion chamber cover. Note Your stove may suck in false air via incorrectly sealed cleaning covers; this air may lead to incomplete combustion in the fire trough and thus piling up # 10 of pellets.
  • Page 16: Cleaning Of The Pellet Chute

    Cleaning of the pellet chute During the period of use, dust and residues may set in the spaces of the pellet chute and cause blockage. In order to clean the chute, press the bolts in the frame tightly on both sides (as indicated by the small arrows) to separate the chute from the pellet container lid.
  • Page 17: Instructions For Commissioning Protocol

    Note points, is a document. Please return 1 completed protocol for putting into service to RIKA Innovative Ofentechnik GmbH, Müllerviertel 20, 4563 Micheldorf, Austria. Warranty terms Difference between warranty (statutory) and guarantee (voluntary), terms of guarantee, determination of wearing parts, reference to pellet quality to be Electrical periphery used and the consequences of poor quality.
  • Page 18 Please contact your warranty partner for any warranty questions or claims. This is your dealer or installation company. No warranty claims can be accepted without proper putting into operation, proper operation according to the operating instructions and the supplements in this information sheet. Protocol for putting into operation for RIKA pellet and combi stoves Date:____________________...
  • Page 19: Warrant Y

    In case of doubt as well as missing or incorrect translations, the German version is the only valid one. For the purpose of timely damage limitation the claimant is required to file the warranty claim with the RIKA dealer in writing, submitting the invoice and stating the purchase date, model name, serial number and reason for complaint.
  • Page 20 In case of doubt as well as missing or incorrect translations, the German version is the only valid one. Technical and design changes, as well as typesetting and printing errors reserved. © 2018 | RIKA Innovative Ofentechnik GmbH RIKA Innovative Ofentechnik GmbH 4563 Micheldorf / Austria, Müllerviertel 20...
