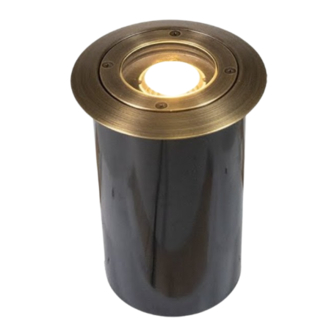

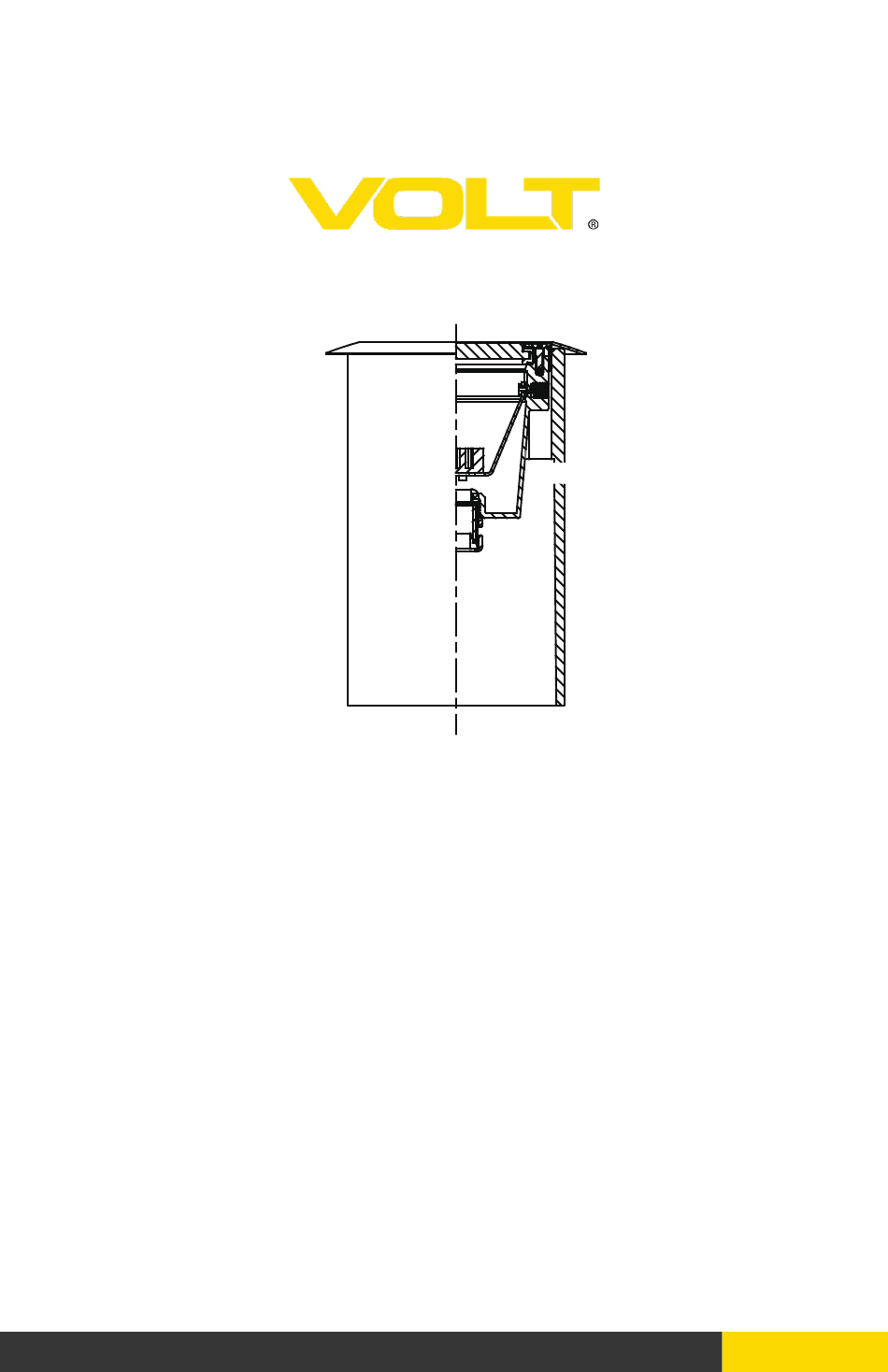

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Salty Dog MR11 Well Light ® ITEM: VWL-7121 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS VOLT - Salty Dog MR11 Well Light - VWL-7121 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Fixture Body B. (1) Holder C. (1) PVC tube PARTS REQUIRED (SOLD SEPARATELY) A. (1) MR11 Lamp PRODUCT DIMENSIONS 4.15” 3” 2.8” 5.8” 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com... -
Page 4: Install Lamp
INSTALLATION INSTRUCTIONS Salty Dog MR11 Well Light - VWL-7121 REMOVE FACEPLATE Use a screwdriver to loosen Screw the screws on the faceplate and remove the lens from the fixture body. Faceplate Fixture Body INSTALL LAMP Insert the lamp with the correct MR11 Lamp wattage and type marked on the fixture label and push firmly into... -
Page 5: Wire Connection
DIG HOLE PVC Tube Prepare a hole in the ground. Make sure there are approximately 3” spaces surrounding the 3” 3” PVC tube for pea gravel or sand. Hole 3” Soil WIRE CONNECTION Pass the fixture supply cable through the holder and the PVC tube. - Page 6 INSTALLATION INSTRUCTIONS VOLT® - Salty Dog MR11 Well Light - VWL-7121 FILL HOLE Install the PVC tube with PVC Tube with Pea Gravel or sand the fixture in the hole fixture and fill the hole with pea gravel or sand.
- Page 7 Install/Replace Faceplate REMOVE FACEPLATE Use a screwdriver to loosen Screw the screws on the faceplate and remove the lens from the Faceplate fixture body. Lens Fixture Body REPLACE FACEPLATE Place the lens and faceplate Screw onto the fixture body and se- cure with previously removed Faceplate screws in a star pattern.
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
