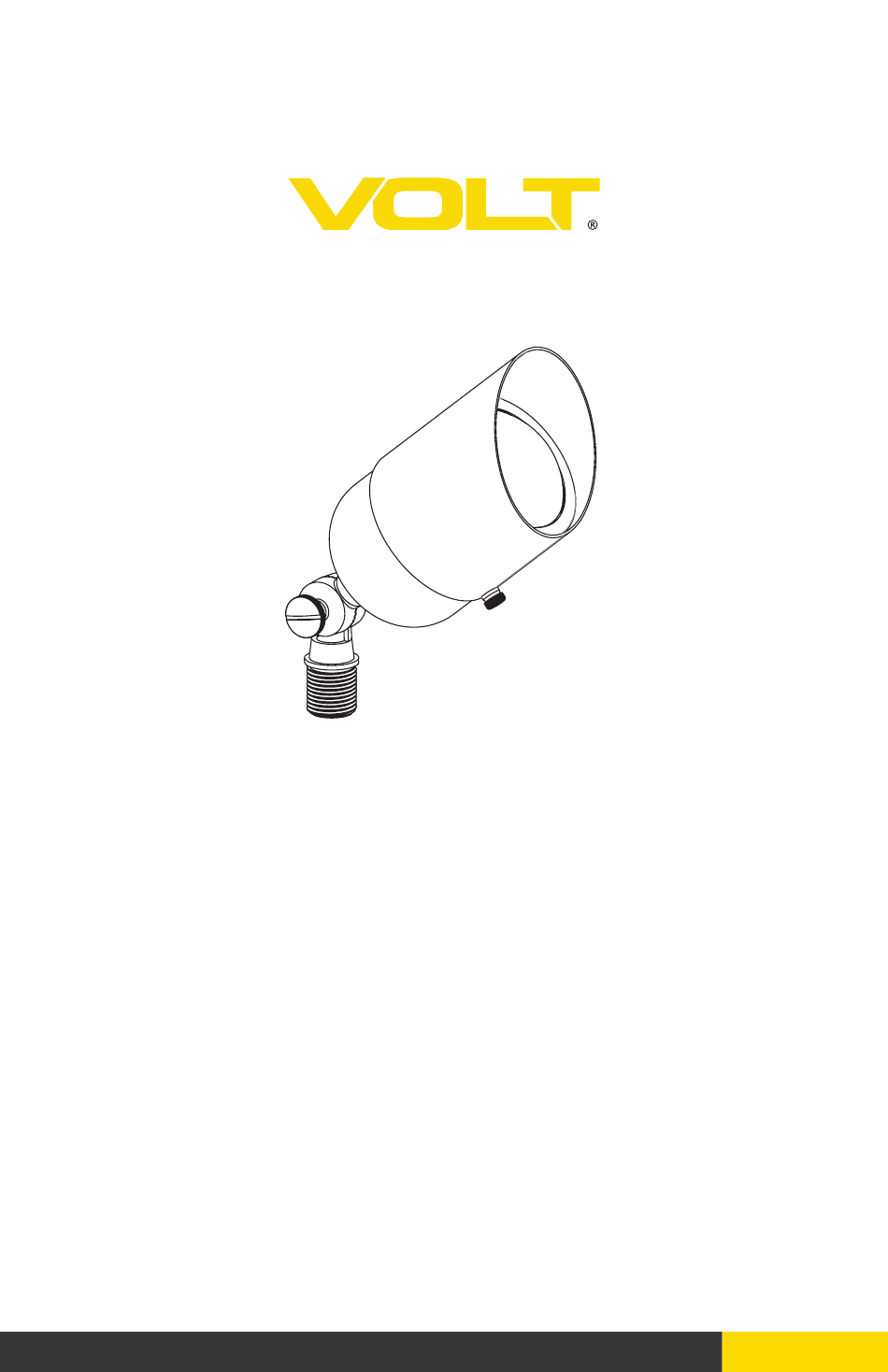

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® ITEM: BDL-150-4-BBZ-MR16-LL 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS VOLT BDL-150-4-BBZ-MR16-LL ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents

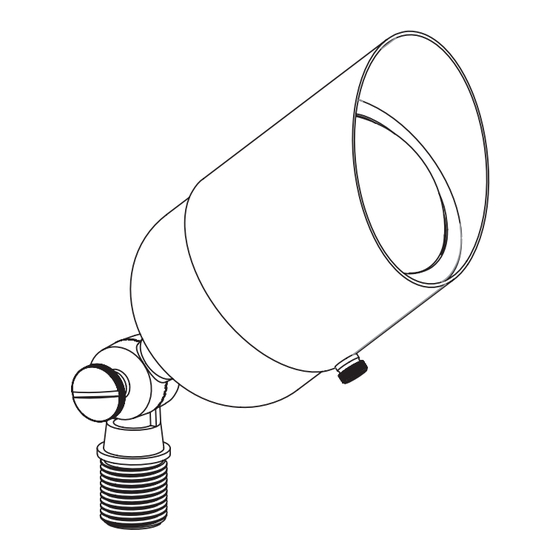

PACKAGE CONTENTS A. (1) Fixture Body C. (1) MR16 Bulb B. (1) Stake PRODUCT DIMENSIONS 2.87” 6.33” 3.54” 1.48” 3.74” REMOVE GLARE GUARD Loosen the screw and remove the glare guard from the fixture body. Glare Guard Screw Fixture Body... - Page 4 INSTALLATION INSTRUCTIONS VOLT BDL-150-4-BBZ-MR16-LL ® INSTALL MR16 BULB Insert MR16 bulb with correct wattage and type marked on MR16 Bulb fixture label. CAUTION: Do not exceed maximum wattage marked on luminaire label. Socket NOTE: DO NOT touch MR16 bulb Fixture Body with bare hands.
- Page 5 INSTALL STAKE Determine your desired location for mounting the transformer. Board Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering. Stake Note: If the ground is hard and the stake is difficult to install,...
-
Page 6: Wire Connections
INSTALLATION INSTRUCTIONS VOLT BDL-150-4-BBZ-MR16-LL ® WIRE CONNECTIONS Supply Wires Wire Connectors Main Supply Cable Strip two leads from fixture supply wires. Using two UL listed wire connectors (not provided), connect leads from fixture supply wires to main supply cable leads. - Page 7 INSTALL/REPLACE MR16 BULB Please refer Step 1 - Step 2 to expose the MR16 bulb and replace it with correct wattage and type marked on fixture label. Then reinstall the lens and glare guard. IMPORTANT: MR16 bulb must be protected from moisture and dust at all times.
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2024, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
