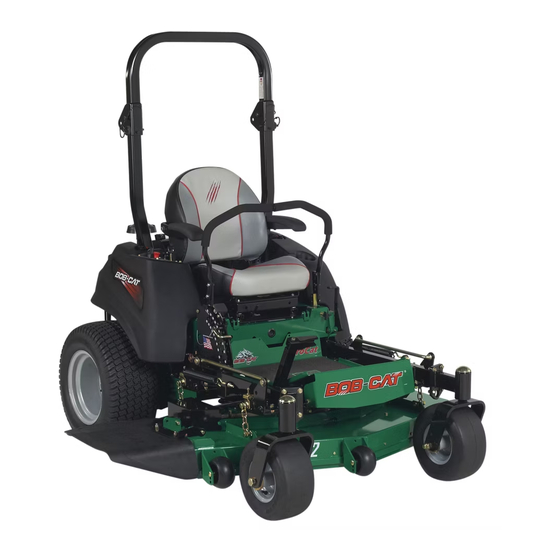

BC PROCAT RS KAW FX801V W/61 SIDE DISCHARGE DP
BC PROCAT RS KAW FX850V W/61 SIDE DISCHARGE DP
BC PROCAT RS KAW FX730V W/52 SIDE DISCHARGE DP
BC PROCAT RS KAW FX850V W/52 SIDE DISCHARGE DP
MOWERS
www.bobcatturf.com
®
942542M
(S/N 1000 thru Present)
942543M
(S/N 0600 thru Present)
942546M
(S/N 0200 thru Present)
942547M
(S/N 0200 thru Present)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOB-CAT 942542M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schiller Grounds Care BOB-CAT 942542M

Summary of Contents for Schiller Grounds Care BOB-CAT 942542M

  • Page 1 ® MOWERS 942542M BC PROCAT RS KAW FX801V W/61 SIDE DISCHARGE DP (S/N 1000 thru Present) 942543M BC PROCAT RS KAW FX850V W/61 SIDE DISCHARGE DP (S/N 0600 thru Present) 942546M BC PROCAT RS KAW FX730V W/52 SIDE DISCHARGE DP (S/N 0200 thru Present) 942547M BC PROCAT RS KAW FX850V W/52 SIDE DISCHARGE DP...
  • Page 2 CALIFORNIA Proposition 65 Warning WARNING Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.

  • Page 3: Important Message

    Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation.
  • Page 4 “after-market” accessories or component shown above. parts not specifically approved by Schiller grounds Care, Inc. ,-will result in the Schiller Grounds Care, Inc. Warranty being voided. Any and all liability for personal injury and/or DANGER indicates an imminently hazardous...
  • Page 5 SAFETY PROCAT RS SERIES PREPARING FOR SAFE OPERATION Operator preparation and training WARNING Read the Operation & Safety Manual – If an operator or mechanic cannot read English, it is the owner's responsibility to explain this material to them. If any portion of this material is unclear, contact your dealer representative for clarification.

  • Page 6: Machine Operation

    SAFETY PROCAT RS SERIES MACHINE OPERATION – Check operator present interlock system and Starting brake operation. Adjust or repair any problems – Start only according to instructions in this manual before using. or on the machine. – Do not tamper with or defeat safety devices. –...
  • Page 7 SAFETY PROCAT RS SERIES MOWING SLOPES WARNING Interrupting operation Slopes are a major factor in loss- – Before leaving the operator's position: of-control and tipover accidents - Park on level ground; that sometimes lead to severe - Disengage the PTO; injury or death.

  • Page 8: Roll Over Protection Structure (Rops)

    SAFETY PROCAT RS SERIES ROLL OVER PROTECTION STRUCTURE (ROPS) A folding Rollover Protection Structures (ROPS) • is attached on this machine. A ROPS is a Roll Over Protective Structure. The • If a ROPS is installed and the machine is ROPS reduces the risk of serious or fatal injury overturning, hold onto the steering levers.
  • Page 9 SAFETY PROCAT RS SERIES WARNING MAINTENANCE SAFETY FUEL IN GENERAL – Gasoline and diesel fuels are flammable; gasoline vapors are – Maintain machine according to manufacturer's explosive. Use extra care when schedule and instructions for maximum safety handling. and best mowing results. –...

  • Page 10: Storage Safety

    SAFETY PROCAT RS SERIES BATTERY Jump starting WARNING 1. Be sure the jumper cables are in good condition. Battery acid is caustic and fumes Turn off the ignition and all electrical accessories are explosive and can cause seri- on both machines. ous injury or death.
  • Page 11 LABELS PROCAT RS SERIES LH TANK RH TANK 4147617 PTO SWITCH OPERATOR'S MANUAL IS LOCATED UNDER THE FOOT PLATE. 4165730 4165639 4 "± 8 " - SPRING LENGTH FOR WHEN INSTALLING NEW BELTS ONLY - DO NOT READJUST AFTER USE 4169712...
  • Page 12 LABELS PROCAT RS SERIES 70 ft-lbs (95 n-m) 12 p.s.i. (0.8 kg/cm²) DECK SIZE BELT P/N BLADE P/N 4143733 112111-01 48 IN (1220mm) 4169640 112111-02 52 IN (1320mm) 4169463 112111-03 61 IN (1550mm) 4169714 112111-03 61 IN (1550 mm) GENERAC 4170172 112111-07 72 IN (1830mm)

  • Page 13: Hydraulic Oil

    LABELS PROCAT RS SERIES WARNING BEFORE STARTING OR SERVICING: Read and understand the Operator's Manual & labels. - Be sure machine is in safe operating condition. - Move traction levers to neutral lock, parking brake to ON. - Set PTO switch to OFF. BEFORE LEAVING SEAT: - Move traction levers to neutral lock, parking brake to ON.
  • Page 14 LABELS PROCAT RS SERIES HOC INNER LABEL: 4173386 HOC INNER LABEL: 4173387 4173386 4173387...

  • Page 15: Assembly And Set-Up

    ASSEMBLY AND SET-UP PROCAT RS SERIES TOOLS REQUIRED FOR ASSEMBLY Wrecking bar Claw hammer Ratchets: 3/8” Drive Sockets: 9/16”, 3/4" Wrenches: 3/8", 9/16", 3/4"” Straight edge Tire pressure gauge Blocks (for deck leveling) NOTE: All references below to the “right” or “left” are with respect to an operator at the controls. 1.
  • Page 16 ASSEMBLY AND SET-UP PROCAT RS SERIES 5. COUNTERBALANCE SPRINGS a) Raise the cutterdeck all the way. b) Adjust the spring A with nut B: Approximately 1" of threads should be extending past the spring mounting bracket at nut B. The springs may be tightened or loosened from this point according to personal preference.

  • Page 17: Final Preparations

    ASSEMBLY AND SET-UP PROCAT RS SERIES 7. FINAL PREPARATIONS Check the engine and hydraulic oil levels. Top up with the correct oil if necessary. Use SAE 10W30 motor oil for the engine. Use fresh, clean SAE 15W40 or SAE 20W50 motor oil for the hydraulic system. After running for one hour, let hydraulic system oil cool.
  • Page 18 CONTROLS PROCAT RS SERIES THROTTLE (T) POWER TAKE OFF (PTO) SWITCH (P) - Move the throttle lever forward to increase engine speed until the maximum governed The operator must be in the seat when engaging the engine RPM is reached. Move the lever rearward to PTO or the engine will kill.
  • Page 19 CONTROLS PROCAT RS SERIES FUEL VALVES (U) - A fuel tank selector valve is provided on oil cooler mounting bracket.The fuel tank selector valve has three positions: Off: The tank selector is off when the lever points to- ward the machine. The selector should be off when- ever the machine is transported or stands unused for any length of time.

  • Page 20: Pushing The Machine

    CONTROLS PROCAT RS SERIES FOOT LIFT PEDAL The foot lift pedal A, allows the operator to raise the mower deck to the highest position without removing his/her hands from the traction controls. To use the foot lift pedal A, press on it to raise the deck.

  • Page 21: Pre-Operation Checklist

    PRE-OPERATION CHECKLIST PROCAT RS SERIES PRE-OPERATION CHECK LIST (OWNER’S RESPONSIBILITY) ___ Review and follow all safety rules and safety ___ Never allow riders. decal instructions. ___ Inspect area and remove stones, branches or ___ Check that all safety decals are installed and in other hard objects that might be thrown, good condition.

  • Page 22: Operation

    OPERATION PROCAT RS SERIES FUELING OPERATOR PRESENCE INTERLOCK SYSTEM – Fill fuel tanks with good quality, clean, unleaded gasoline. Do not use hi-test fuel. To start the engine: – Use a funnel to avoid spillage. – The PTO switch must be OFF. –...

  • Page 23: Operating Notes

    OPERATION PROCAT RS SERIES OPERATING NOTES - Practice at slow engine and travel speeds with the PTO off until fully familiar with the controls. - For normal cutting the throttle should be set at the full open position. By using the traction levers to speed up or slow down the machine during use, maximum control and cutting efficiency can be maintained.
  • Page 24 OPERATION PROCAT RS SERIES Use caution when making turns. Slow down before making sharp turns to help maintain control and to prevent torn turf from skidding or spinning tires. To help prevent turf damage, keep both drive tires moving whenever a turn is made.

  • Page 25: Cutting Tips

    OPERATION PROCAT RS SERIES CUTTING 1. Place the discharge chute in the down position or correctly fit a grass collector or mulcher plate. DANGER 2. Sit in the seat. 3. Start the engine. 4. Turn the blades on by pulling up on the PTO ROTATING BLADES switch.

  • Page 26: Maintenance Chart

    MAINTENANCE CHART PROCAT RS SERIES t l i t l i...

  • Page 27: Maintenance Record

    MAINTENANCE RECORD PROCAT RS SERIES NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ & & r i f , l i t l i...

  • Page 28: Maintenance

    MAINTENANCE PROCAT RS SERIES CHECK DAILY Operator Presence Interlock System - Start Operation For the engine to crank, the parking brake must be on, the PTO (blades) off and traction levers in the neutral lock position. Sit in the seat and check, one by one, if the engine will crank with the parking brake off, the blades on, and either traction lever out of neutral lock.
  • Page 29 MAINTENANCE PROCAT RS SERIES LUBRICATION Every 50 hours of operation, lubricate the following points (1-4) with grease: 1. Deck lift rockshaft (1 point) 2. Deck lift pivots (6 points) 3. Brake lever pivot (1 point) 4. Push arms (2 points located at rear of cutterdeck under each fuel tank) 5.

  • Page 30: Hydraulic System

    MAINTENANCE PROCAT RS SERIES HYDRAULIC SYSTEM Fluid level in the hydraulic system should be checked after the first 5 hours of operation, and every 100 hours thereafter, or when a leak has occurred. If the fluid is low, check all components for leaks. To check, remove reservoir cap M.

  • Page 31: Engine Oil

    MAINTENANCE PROCAT RS SERIES ENGINE OIL Do not perform engine maintenance without the engine off, spark plug wires disconnected and PTO disengaged. AFTER FIRST FIVE (5) HOURS While the engine is warm: 1. Release the oil drain hose assembly from the engine clip J.

  • Page 32: Engine Cooling

    MAINTENANCE PROCAT RS SERIES ENGINE COOLING Continued operation with a clogged cooling system will cause severe overheating and can result in en- gine damage. Daily: Clean air intake screen S on air cooled engines. Every 100 hours: Clean cooling fins beneath blower housing H with reference to information in the engine manufacturer's manual.

  • Page 33: Cleaning Machine

    MAINTENANCE PROCAT RS SERIES CLEANING MACHINE Clean the machine after use. Compressed air is recommended. Do not use a pressure washer. The machine will run cooler and last longer if kept free of clippings and other debris. A clean machine also re- duces the risk of fire due to accumulation of combus- tible debris and chaff.
  • Page 34 MAINTENANCE PROCAT RS SERIES BLADE REMOVAL BLADE BALANCE Follow these instructions to prevent injury during Blade balance must be maintained at 5/8 oz-in blade removal: (19.4 g-cm) or less. Failure to keep blades balanced 1. Loosen with a box wrench or a socket and long causes excess vibration, wear, and shortened life of breaker bar.

  • Page 35: Deck Leveling

    ADJUSTMENTS PROCAT RS SERIES DECK LEVELING FORWARD PITCH SHOWN a) Park the machine on a smooth, level surface. Raise the deck to the transport position. b) Lower the deck onto a pair of equal height blocks A under the rear corners of the deck. Place another pair of adjustable blocks B under the front of the deck so that the deck top is pitched forward 1/8”.

  • Page 36: Height Of Cut

    ADJUSTMENTS PROCAT RS SERIES HEIGHT OF CUT The height of cut is set by moving height of cut pin C to the hole designated for the height of cut desired. To change the height of cut: 1. Lift the deck to the highest position. 2.

  • Page 37: Control Levers

    ADJUSTMENTS PROCAT RS SERIES CONTROL LEVERS There are two mounting positions for the control levers, upper and lower. The lower position works well for most people. Taller operators may need the upper position. To adjust the height of the control levers: Remove bolts A and nuts B.
  • Page 38 ADJUSTMENTS PROCAT RS SERIES TRACKING HANDLES An adjustment is provided to allow the operator to adjust machine tracking during operation. 1. Turn knob W clockwise to shorten control lever travel. 2. Turn knob W counter-clockwise to increase con- trol lever travel. DAMPERS Different damper mounting holes have been provided for various operator preferences with control lever...
  • Page 39 ADJUSTMENTS PROCAT RS SERIES HYDROSTAT ADJUSTMENTS A turnbuckle-style hydrostat neutral adjustment is provided. Neutral: 1. Support the machine with the rear wheels off the ground. Use jackstands or equivalent sup- port. Do not rely only on mechanical or hydraulic jacks. 2.

  • Page 40: Belt Replacement

    BELT REPLACEMENT PROCAT RS SERIES Note: Always use Schiller Grounds Care, Inc.replacement belts, not general purpose belts. Schiller Grounds Care, Inc. belts are specially designed for use on commercial mowers and will normally last longer. CUTTERDECK BELT 1. Tilt footplate all the way forward.

  • Page 41: Specifications

    SPECIFICATIONS PROCAT RS SERIES POWER UNITS Forward: 10.5 mph (16.9 km/h) ENGINES: Reverse: 4 mph (6.4 km/h) Construction: Aluminum block with cast-in cast iron sleeves. Aluminum head. Configuration: 4-stroke, vertical shaft, V-twin cylin- WHEELS & TIRES: Drive wheels: der, overhead valve, air-cooled. 942546 &...
  • Page 42 SPECIFICATIONS PROCAT RS SERIES ENGINES MODEL NUMBER 942546 942542 942543 & 942547 MANUFACTURER Kawaskai Kawasaki Kawasaki MODEL FX730V FX801V FX850V CYLINDERS COOLING BORE/STROKE 3.1 X 3.0" 3.33 X299" 3.33 X 299" (80 X 76 mm) (84.5 X 76mm) (84.5 X 76mm) DISPLACEMENT 44.3 cu.

  • Page 43: Parts Section

    PARTS SECTION PROCAT RS SERIES PARTS SECTION...
  • Page 44 KAW UPPER ENGINE DECK ASSY PROCAT RS SERIES FIGURE 1 1 / 58 18 44...
  • Page 45 KAW UPPER ENGINE DECK ASSY PROCAT RS SERIES FIGURE 1 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4164368 ENG-KAW FX730V 64123-15 BOLT-3/8-16X3/4 HEX 4164576 S-AIR FILTER PRIMARY 64197-025 BLT-TDFM 1/4-20X5/8 4164577 S-AIR FILTER SAFETY 38304-02 BRG, FLGD PLASTIC 4164537 FILTER-OIL 4143354 BUMPER-RUBBER...

  • Page 46: Lower Engine Deck Assy/Clutch

    LOWER ENGINE DECK ASSY/CLUTCH PROCAT RS SERIES FIGURE 2 ENGINE PUMP PUMP BELT DETAIL...
  • Page 47 LOWER ENGINE DECK ASSY/CLUTCH PROCAT RS SERIES FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4158360 PULLEY-PUMP 64044-18 SCREW-SET 1/4-20 X 5/16 64238-03 KEY-MET 5MM SQX28MM 64164-12 4165509 PULLEY- 5.25 OD X 1.126 4165689 CLUTCH-ELECTRIC, 225 4165570.7 WLDMT-CLUTCH STOP 4121540 PIN-CLUTCH 64006-03...
  • Page 48 BUMPER PROCAT RS SERIES FIGURE 3...
  • Page 49 BUMPER PROCAT RS SERIES FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4174070 S-ENG DECK W/LABS 4168775.7 BRKT-BUMPER, TOP 4165490.7 WRAPPER-BUMPER 4165492.7 STRAP-BUMPER 64262-012 BLT-FLG HD 3/8-16 X 1-1/4 64268-03 NUT-FL NYLON LOCK 3/8-16 48412-01 CLIP-J...
  • Page 50 FUEL TANKS/CONTROL PANEL PROCAT RS SERIES FIGURE 4 7 11 13 ENGINE TO ENGINE...
  • Page 51 FUEL TANKS/CONTROL PANEL PROCAT RS SERIES FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4165428 TANK-FUEL LH (INCLUDES ITEMS 15, 31-33) 4165429 TANK-FUEL RH (INCLUDES ITEMS 15, 31-33) 4165930 S-CONTROL PANEL 4174070 S ENG DECK W/LABS 4165291 CAP-FUEL, RATCHET TYPE 64123-50 BLT-HEX 3/8-16X1 2188178...
  • Page 52 BRAKES/REAR WHEEL PROCAT RS SERIES FIGURE 5 TORQUE TO 225 FT/LBS...
  • Page 53 BRAKES/REAR WHEEL PROCAT RS SERIES FIGURE 5 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4174070 S-ENGINE DECK W/LABS 4165701.7 WLDMT-BRAKE ARM LH 4165700.7 WLDMT-BRAKE ARM RH 128102 SPRING,EXTENSION 4165449.7 WLDMT-BRAKE LEVER 4159701 ROD-BRAKE CONTROL 2182387.7 GUIDE-SPRING 38020N CLEVIS YOKE, 5/16 PLATE 4167999 BRAKE-PARKER 4167999-01...

  • Page 54: Oil Cooler

    OIL COOLER PROCAT RS SERIES FIGURE 6 TO PUMP CASE DRAIN...
  • Page 55 OIL COOLER PROCAT RS SERIES FIGURE 6 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4174070 S ENGINE DECK W/LABS 4166416.7 BRKT-COOLER FRONT USED ON 942542M, 942543M, 942547M 4166418.7 BRKT-COOLER FRONT USED ON 942546M 64262-002 BLT-FLG HD 1/4-20 X 3/4 2720891.7 SCREEN-OIL COOLER 2188173...
  • Page 56 AIR COOLED HYDRAULICS PROCAT RS SERIES FIGURE 7...
  • Page 57 AIR COOLED HYDRAULICS PROCAT RS SERIES FIGURE 7 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4167655 S HYD RESERVOIR W/LAB 2720396 FILTER 25 MICRON 4167240 CAP-RESERVOIR 4160243 PLUG-HYDRAULIC TANK 158058-04 FTG-90 BRB 9/16-18X.38 108205-03 ELBOW-MALE 45 37-ORB 69053-05 3/8 HIGH TEMP HSE (69053-05 IS A SERVICEABLE LENGTH OF 55") 2188157-02 LH PUMP PORT B-HOSE...
  • Page 58 HYDROGEAR PUMP PROCAT RS SERIES FIGURE 8...
  • Page 59 HYDROGEAR PUMP PROCAT RS SERIES FIGURE 8 ITEM HYDROGEAR PART NO. SCHILLER PART NO. DESCRIPTION 70516 ----- HOUSING KIT 72011 4164841-001 END CAP KIT 50641 ----- STRAIGHT HEADLESS PIN 50969 2721615-01 FLANGE BOLT M8-1.25 X 60 54022 4168656-03 HOUSING O-RING 71261 4168656-01 CHARGE PUMP KIT...

  • Page 60: Wire Harness

    WIRE HARNESS PROCAT RS SERIES FIGURE 9 CLUTCH ELECTRIC WIRE COLORS WHITE ENGINE GROUND STARTER WHITE W/ BLACK STRIPE PURPLE BATTERY ORANGE ORANGE W/ BLACK STRIPE PURPLE W/ ORANGE STRIPE ORANGE W/ PURPLE STRIPE BATTERY DARK BLUE (BLACK) BLACK GREEN ENGINE BLOCK (RED) (GROUND)
  • Page 61 WIRE HARNESS PROCAT RS SERIES FIGURE 9 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4165575 HARNESS-WIRING MAIN 148082-20 FUSE-20 AMP 108061-13 CABLE-BATTERY 36 BLACK 4124009 SWITCH-SEAT, NO 4143068 JUMPER-SEAT SWITCH 4165120 METER-HOUR 2722227-02 CABLE-BATT CONDUIT 36" 128010 KEY-SWITCH 2722325 RELAY-40AMP SEALED 2188154 MODULE-DELAY...
  • Page 62 SEAT ASSEMBL PROCAT RS SERIES FIGURE 10...

  • Page 63: Seat Assembly

    SEAT ASSEMBLY PROCAT RS SERIES FIGURE 10 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4175250 SEAT ASSY (INCLUDES ITEMS 2-12, 21) 4169768-05 KNOB-WGHT ADJUST 4175250-01 COVER- BACK VINYL 4175250-02 COVER-CUSHION 4169768-08 KIT-ARM RH & LH (INCLUDES ITEMS 7&8) 4165316-02 PAD-ARM SINGLE 4169768-02 ARM KIT-LH...

  • Page 64: Folding Rops

    FOLDING ROPS PROCAT RS SERIES FIGURE 11...
  • Page 65 FOLDING ROPS PROCAT RS SERIES FIGURE 11 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4167960.2 S-ROPS W/ LABELS (INCLUDES ITEMS 2-4, 6, 8-13) 64123-31 BOLT-1/2-13 X 3 64151-7 LOCKNUT- 1/2-13 4162880 LANYARD-NYLON 64262-011 BLT-FLG HD 3/8-16X1 4160347 LABEL-WARNING ROPS 64268-03 NUT-FL NYLN LOCK 3/8-16 64168-1...
  • Page 66 STEERING/DECK LIFT PROCAT RS SERIES FIGURE 12...
  • Page 67 STEERING/DECK LIFT PROCAT RS SERIES FIGURE 12 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64175-05 NUT-PUSH 1/2 4174070 S ENGINE DECK W/LABS 64188-36 PIN, CLEVIS 7/16X1-1/4 4163746 SPRING 4165466 GRIP 64018-7 BLT-CRG 3/8-16X1-1/4 2183071-03 SPACER-15.88X10.32X24 64123-50 BLT-HEX 3/8-16X1 64268-03 NUT-FL NYLON LOCK 3/8-16 4176222.7 LEVER-TRACTION CNTRL...

  • Page 68: Cradle Assembly

    CRADLE ASSEMBLY PROCAT RS SERIES FIGURE 13 KICKPLATE...
  • Page 69 CRADLE ASSEMBLY PROCAT RS SERIES FIGURE 13 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4165610 LABEL-WARNING 2182356.7 BRACKET-SHAFT HANGER 2188127 CHAIN-6.35 (.250) 5 LINKS 4165647 MAT-FOOT PLATE LOWER 4166266 MAT-FOOT PLATE UPPER 4167139.7 PLATE-FOOTPLATE MNTG 4165657 LABEL-BOBCAT 4166267 S-FOOT PLATE (BOBCAT) (INCLUDES ITEMS 4-7) 64163-65 WASHER-.890X1.375X18GA...
  • Page 70 CRADLE & CASTER ASSEMBLY PROCAT RS SERIES FIGURE 14...
  • Page 71 CRADLE & CASTER ASSEMBLY PROCAT RS SERIES FIGURE 14 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 48043-03C CUP, OUTER BEARING 4175255 ASSY-WHL 13X6.5-6 SMTH (INCLUDES ITEMS 7, 24, & 25) DECK/W LABS 64123-223 BOLT-3/4-10 X 10 4171883.7 WLDMT-CASTER YOKE 2722230-03 SPANNER 2722228-03...
  • Page 72 52" SIDE DISCHARGE DP PROCAT RS SERIES FIGURE 15...
  • Page 73 52" SIDE DISCHARGE DP PROCAT RS SERIES FIGURE 15 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4175441 S-DECK W/ LABELS 52" 521438 GREASE SEAL 4165608.7 BELT COVER-RH 4163014 SPACER 4165609.7 BELT COVER-LH 4164948 HOUSING-SPINDLE 6 HOLE 38524 KNOB-4 PRONG 3/8-16 4163155 INNER RING 64141-6...
  • Page 74 61" SIDE DISCHARGE DP PROCAT RS SERIES FIGURE 16...
  • Page 75 61" SIDE DISCHARGE DP PROCAT RS SERIES FIGURE 16 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4175442 S-DECK W/ LABELS 61" 521438 GREASE SEAL 4165456.7 BELT COVER-RH 4163014 SPACER 4165455.7 BELT COVER-LH 4164948 HOUSING-SPINDLE 6 HOLE 38524 KNOB-4 PRONG 3/8-16 4163155 INNER RING 64141-6...
  • Page 76 52" & 61" DP CHUTE, BAFFLES, & EDGES PROCAT RS SERIES FIGURE 17...
  • Page 77 52" & 61" DP CHUTE, BAFFLES, & EDGES PROCAT RS SERIES FIGURE 17 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4175442 S-CUTTERDECK, 61IN SD DP 4175441 S-CUTTERDECK, 52IN SD DP 64268-02 NUT-FL NYLON LOCK 5/16-18 64268-03 NUT-FL NYLON LOCK 3/8-16 64018-44 BLT-CRG 3/8-16X1 SN 4175129.2...
  • Page 78 DECALS-POWER UNIT PROCAT RS SERIES FIGURE 18 BACK OF ENGINE DECK DOCUMENT TUBE UNDER SEAT 15 & 16 LOCATED BEHIND SEAT ON OIL COOLER LOCATED UNDER FOOTPLATE...
  • Page 79 DECALS-POWER UNIT PROCAT RS SERIES FIGURE 18 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4175657 LABEL-BOB-CAT 4168522 MAT-CLAW MARKS 2000735 LABEL-OPER MAN 2000590 LABEL, WARN BATTERY 4165722 LABEL - HYDR OIL FILL 4165639 LABEL-CONTROL PANEL 2000693 LABEL - PARK BRAKE 2000698 LABEL(DBL) - FUEL/LEAKS 4171486...
  • Page 80 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com ©Schiller Grounds Care, Inc. 2010...
