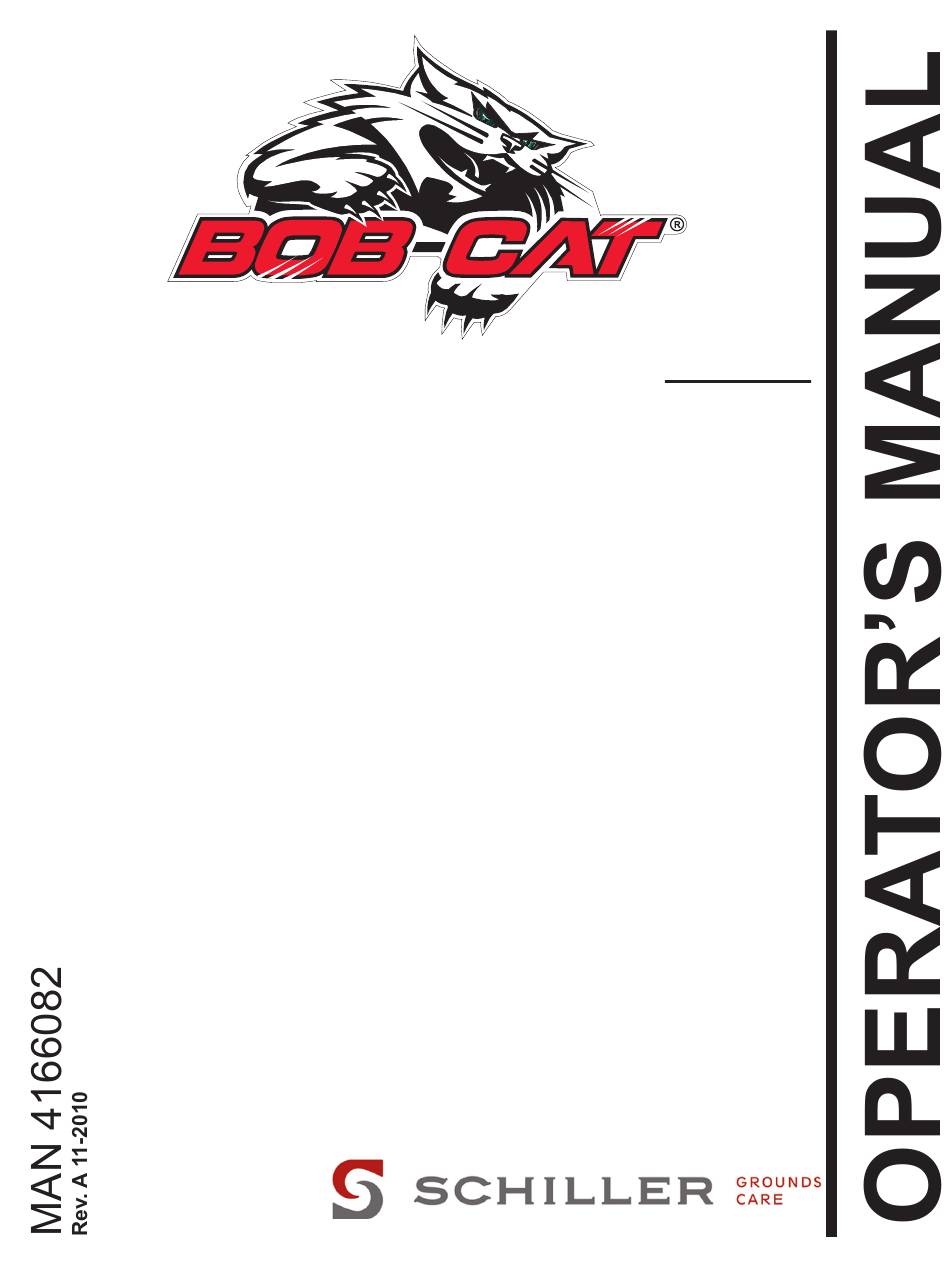

- Page 1 MODELS: 932007G 16HP KAWASAKI 32” CLASSIC PRO 933007G 16HP KAWASAKI 36” CLASSIC PRO 934007G 16HP KAWASAKI 48” CLASSIC PRO PARTS MANUAL: 4166081...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning Diesel engine exhaust and some of its The engine exhaust from this product constituents are known to the State of contains chemicals known to the State California to cause cancer, birth defects of California to cause cancer, birth and other reproductive harm.
-
Page 3: Table Of Contents
Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation. For best protection, study the manuals thoroughly. -
Page 4: Safety
These words appear in this Grounds Care, Inc.'s Engineering Department. Any manual and on the safety labels attached to Schiller Schiller Grounds Care, Inc. product that is altered, Grounds Care, Inc. machines. For your safety and modified or changed in any manner not specifically the safety of others, read and follow the information authorized after original manufacture–including the... -
Page 5: Labels
LABELS Classic Manufactured under one or more of the following U.S. patents: 5,343,678 5,415,059 5,651,241 4165666... - Page 6 LABELS Classic 2000569 WARNING -DO NOT ALLOW CHILDREN, UNSKILLED, OR IMPROPERLY TRAINED PERSONNEL TO OPERATE. -DISCONNECT SPARK PLUG WIRES BEFORE PERFORMING ADJUSTMENTS, CLEANING OR MAINTENANCE. -WEAR STURDY SHOES. -MOW ACROSS SLOPES. -DO NOT DEFEAT INTERLOCKS. CHECK OPERATION DAILY. -KEEP LABELS, GUARDS AND SHIELDS IN PLACE. REPLACE IF DAMAGED.
-
Page 7: General Instructions
GENERAL INSTRUCTIONS Classic Before using machine for the first time, check engine from the truck or trailer and refuel it on the and gearbox fluid levels and lubricate all points. ground. If equipment must be refueled on the truck or trailer, refuel from a portable container rather than a dispenser nozzle. - Page 8 GENERAL INSTRUCTIONS Classic a complete stop, and disconnect the spark plug wire: OPERATION • before clearing blockages or unclogging chute. a) Do not operate the engine in a confined space where • before checking, cleaning or working on the dangerous carbon monoxide fumes can collect. mower.
- Page 9 GENERAL INSTRUCTIONS Classic MAINTENANCE AND ADJUSTMENTS OPERATING ON SLOPES • Disconnect spark plug wire(s) before doing any maintenance. USE EXTRA CARE WHEN WORKING ON SLOPES • Particular care must be taken when adjusting the • With walk behind machines, mow across slopes, carburetor while the engine is running.
-
Page 10: Controls
CONTROLS Classic CHOKE (I) Pull to close choke. Push to open choke. TRACTION CONTROL LEVERS (F) The traction control levers have five functions: 1. To provide a neutral position to maneuver the machine manually. See Traction Lock illustration below. 2. To engage drive to the wheels—gradually release the traction control levers to take up the drive. -
Page 11: Operation
Peerless Model 700 must be declutched when it is shifted. Failure to declutch the wheel drive with the traction control levers when shifting can cause failure of the shifting mechanism. Such abusive failure is not covered under warranty by either Schiller Grounds Care, Inc. or Peerless. •... - Page 12 OPERATION Classic DRIVING THE MACHINE IN TRANSPORT 1. Disengage cutterdeck with PTO switch. Depress the operator present controls. Move the gearshift lever to give the desired forward speed. 2. Release the traction locks and gradually engage both traction control levers together. NOTE: Engaging only one traction control lever will cause the machine to turn to one side.
-
Page 13: Height Of Cut
HEIGHT OF CUT Classic Make all adjustments with the engine shut off, spark plug wire disconnected and mower drive disengaged. The cutting height is determined by the position of the blades in relation to the wheels. Variation to this height may be made at TWO points. (See HEIGHT OF CUT CHART on page 12.) 1. - Page 14 HEIGHT OF CUT Classic HEIGHT OF CUT CHART NOTE: Use only these combinations of settings. If any other setting is used, quality of cut will suffer because of wrong blade angle. These height of cut charts were developed in a controlled workshop environment. Slight variations can occur in the field, depending on tire pressures, etc.
-
Page 15: Adjustments
ADJUSTMENTS Classic Make all adjustments with the engine shut off, spark plug wire disconnected and mower drive disengaged. OPERATOR PRESENT CONTROL LEVERS The operator present (OP) control levers should be adjusted to control the operation of the plunger of the operator present switch B (located under the right side of the control panel). - Page 16 ADJUSTMENTS Classic UPPER HANDLE HEIGHT ADJUSTMENT To adjust upper handle height: Remove the traction control rods. Remove bolts G and loosen bolts E on each side of the lower handle. Raise or lower as required. Reposition upper handle and reinsert bolts G into appropriate hole in lower handle and tighten.
- Page 17 ADJUSTMENTS Classic DRIVE BELT TENSION ADJUSTMENT Drive belt tension can be adjusted to one of three settings to account for various mowing conditions. 1. Adjust by moving the spring anchor bolt to posi- tion 1, 2 or 3. • Position 1 will provide the least amount of hand effort and wheel traction.
-
Page 18: Belt Replacement
BELT REPLACEMENT Classic 32" & 36" CUTTERDECK PTO BELT 1. Rotate idler arm A counterclockwise using a 3/8" ratchet or breaker bar and remove belt. 2. Install belt as shown. 48" CUTTERDECK PTO BELT 1. Rotate idler arm B counterclockwise using a 3/8" ratchet or breaker bar and remove belt. - Page 19 BELT REPLACEMENT Classic GEARBOX-DRIVE BELT 1. Loosen nut on carriage bolt A. 2. Slide idler pulley B away from belt. 3. Unbolt clutch stop pin C. 4. Remove PTO belt. 5. Remove gearbox drive belt. 6. Replace by following steps in reverse order. NOTE: Push idler pulley B toward gearbox drive belt until gearbox drive belt is snug.
-
Page 20: Specifications
SPECIFICATIONS Classic CONSTRUCTION: DRIVE BELTS: 10 AND 7 GAUGE STEEL DECK WELDED SINGLE • HB-SINGLE WITH ARAMID FIBER. UNIT, BAFFLED DECK FOR HIGH VELOCITY (USED ON MODEL 932007G ONLY) AIR FLOW, LARGE DISCHARGE OPENING WITH CHUTE GUARD DEFLECTOR. • HB-DOUBLE BANDED WITH ARAMID FIBER. TRANSMISSION: DRIVE TIRES: 5 SPEED MODEL 700 PEERLESS GEARBOX WITH... - Page 21 SPECIFICATIONS Classic FS481V-AS04-R 2.9” X 2.8” (73mm x 72mm) " 8 " 7 " 5 36.8 ci (603cc) " 2 " 5 " 8 " 8 " 5 " 5 - t f 32.1 " 5 " 8 " 5 43.5 •...
- Page 22 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com ©Schiller Grounds Care, Inc. 2010...
