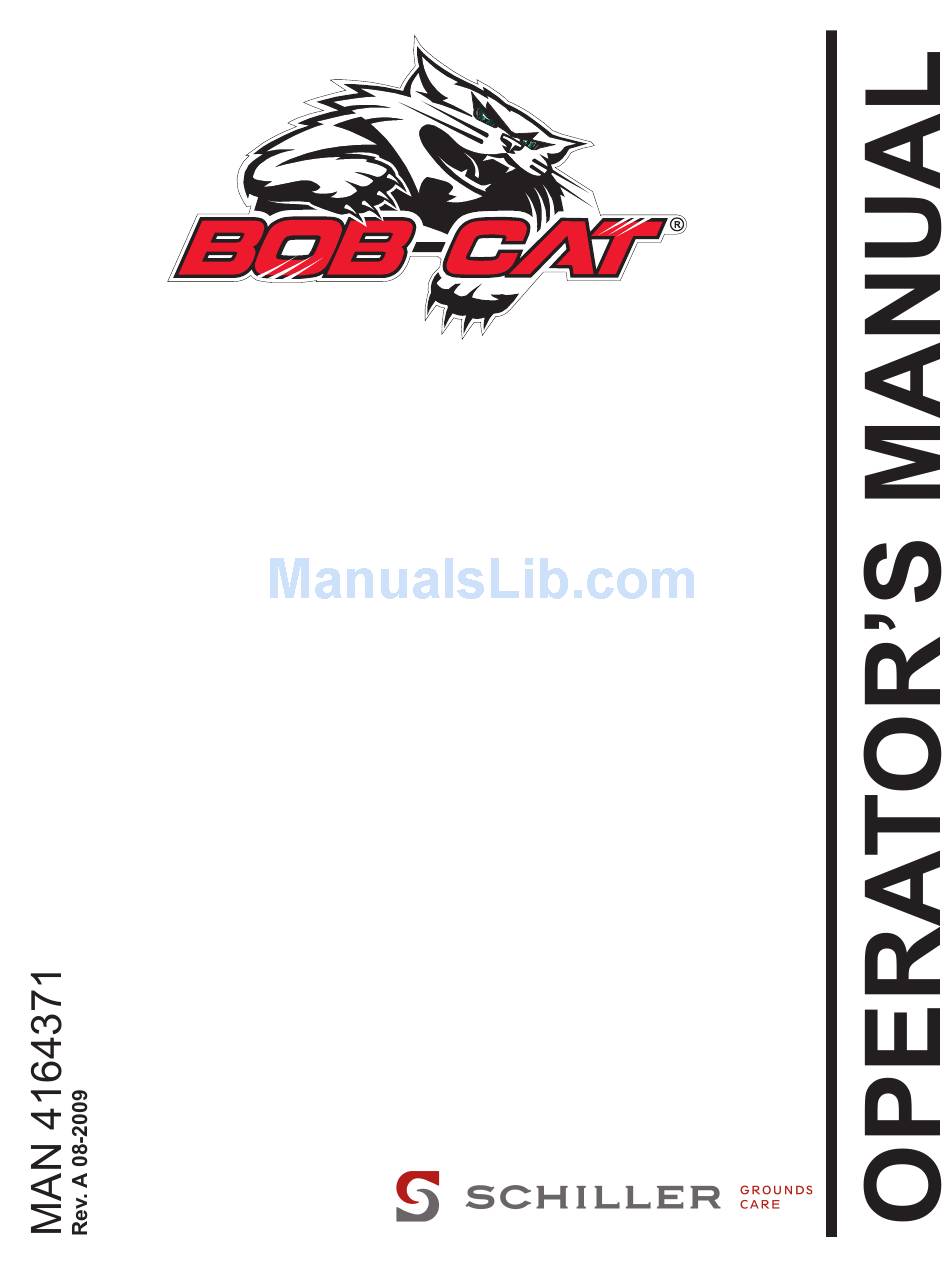

  • Page 1 942237F PROCAT 27HP KLR W/61 SIDE DISCHARGE 942250F PROCAT 22HP KAW W/52 SIDE DISCHARGE 942251F PROCAT 26HP KAW W/52 SIDE DISCHARGE 942252F PROCAT 26HP KAW W/61 SIDE DISCHARGE 942253F PROCAT 26HP KAW LC W/61 SIDE DISCHARGE 942254F PROCAT 29HP KAW W/61 SIDE DISCHARGE 942259F PROCAT 29HP KAW W/52 SIDE DISCHARGE PARTS MANUAL 4164370...
  • Page 2 CALIFORNIA WARNING Proposition 65 Warning The engine exhaust from this product Diesel engine exhaust and some of contains chemicals known to the State its constituents are known to the State of California to cause cancer, birth of California to cause cancer, birth defects or other reproductive harm.

  • Page 3: Table Of Contents

    Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation. For best protection, study the manuals thoroughly.

  • Page 4: Safety

    These words appear in this Grounds Care, Inc. Engineering Department. Any manual and on the safety labels attached to Schiller Schiller Grounds Care, Inc. product that is altered, Grounds Care, Inc. machines. For your safety and modified or changed in any manner not specifically the safety of others, read and follow the information authorized after original manufacture–including the...
  • Page 5 SAFETY PROCAT PREPARING FOR SAFE OPERATION WARNING Operator preparation and training Read the Operation & Safety Manual – If an operator or mechanic cannot read English, it is the owner's responsibility to explain this material to them. If any portion of this material is unclear, contact your dealer representative for clarification.
  • Page 6 SAFETY PROCAT MACHINE OPERATION OPERATING SAFELY – Check operator present interlock system and In general brake operation. Adjust or repair any problems – Use extra care when loading or unloading the before using. machine onto a trailer or truck. – Watch out for traffic when near or crossing –...
  • Page 7 SAFETY PROCAT Interrupting operation MANEUVERING SAFELY – Before leaving the operator's position: In general - Park on level ground; – Slow down before turning. - Disengage the PTO; – Do not mow in reverse unless absolutely - Set the parking brake; necessary.
  • Page 8 SAFETY PROCAT WARNING for wheel weights or counterweights to improve MOWING SLPES stability. Slopes are a major factor in loss-of-control and tipover Rollover Protection Structure (ROPS) accidents that sometimes lead • to severe injury or death. All Fixed and folding Rollover Protection Structures slopes require extra caution.
  • Page 9 SAFETY PROCAT WARNING MAINTENANCE SAFETY FUEL IN GENERAL – Gasoline and diesel fuels are flammable; gasoline vapors are – Maintain machine according to manufacturer's explosive. Use extra care when schedule and instructions for maximum safety handling. and best mowing results. –...
  • Page 10 SAFETY PROCAT BATTERY JUMP STARTING WARNING Battery acid is caustic and fumes 1. Be sure the jumper cables are in good condition. are explosive and can cause seri- Turn off the ignition and all electrical accessories ous injury or death. on both machines.

  • Page 11: Labels

    LABELS PROCAT...
  • Page 12 LABELS PROCAT 4158401...
  • Page 13 LABELS PROCAT...
  • Page 14 LABELS PROCAT...
  • Page 15 LABELS PROCAT...

  • Page 16: Controls

    CONTROLS PROCAT KEYSWITCH (K) - The keyswitch has three positions: OFF, RUN, and START. Insert the key and turn it clockwise to move the switch from OFF to RUN. Turn it further to START and hold to engage the starter. Release the key and the switch will return to RUN from START.
  • Page 17 CONTROLS PROCAT Reverse movement - To move the machine straight back, pull both traction levers back equally from their neutral position. Reverse speed increases as the levers are moved back farther. Maximum reverse speed is reached when the levers hit the rear of the forward-reverse slot.
  • Page 18 CONTROLS PROCAT FUEL VALVES (U) - A fuel tank selector valve is provided on the front panel. The fuel tank selector valve has three positions: Off: The tank selector is off when the lever points- down. The selector should be off whenever the machine is transported or stands unused for any length of time.
  • Page 19 CONTROLS PROCAT PARKING BRAKE (R) - Pull the parking brake lever up and back to put the parking brake ON. Push it forward and down to put the parking brake OFF. The parking brake must be ON to start the engine. It must also be ON to keep the engine running if the operator leaves the seat.

  • Page 20: Pre-Operation Check List

    PRE-OPERATION CHECK LIST PROCAT PRE-OPERATION CHECK LIST (OWNER’S RESPONSIBILITY) ___ Review and follow all safety rules and safety ___ Never allow riders. decal instructions. ___ Inspect area and remove stones, branches or ___ Check that all safety decals are installed and in other hard objects that might be thrown, good condition.

  • Page 21: Operation

    OPERATION PROCAT FUELING OPERATOR PRESENCE INTERLOCK SYSTEM – Fill fuel tanks with good quality, clean, unleaded gasoline. Do not use hi-test fuel. To start the engine: – Use a funnel to avoid spillage. – The PTO switch must be OFF. –...
  • Page 22 OPERATION PROCAT OPERATING NOTES DRIVING 1. With the PTO disengaged, move the parking – Practice at slow engine and travel speeds with the brake to OFF. PTO off until fully familiar with the controls. 2. Move both traction levers out of neutral lock. –...

  • Page 23: Cutting Tips

    OPERATION PROCAT CUTTING 1. Place the discharge chute in the down position or correctly fit a grass collector or mulcher plate. DANGER 2. Sit in the seat. 3. Start the engine. 4. Turn the blades on by pulling up on the PTO ROTATING BLADES switch.

  • Page 24: Maintenance Chart

    MAINTENANCE CHART PROCAT t l i t l i...

  • Page 25: Maintenance Record

    MAINTENANCE RECORD PROCAT NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ & & r i f , l i t l i...

  • Page 26: Maintenance

    (A 1/2 second delay is built into the system to prevent engine cutout when traversing rough terrain.) Repair machine before using if the Operator Presence Interlock System does not operate correctly in start or run. Contact your authorized Schiller Grounds Care, Inc. dealer. Hardware Tighten any nuts and bolts found loose.
  • Page 27 MAINTENANCE PROCAT LUBRICATION Every 50 hours of operation, lubricate the following points (1-4) with grease: 1. Deck lift rockshaft (1 point) 2. Deck lift pivots (6 points) 3. Brake lever pivot (1 point) 4. Push arms (2 points located at rear of cutterdeck under each fuel tank) 5.
  • Page 28 MAINTENANCE PROCAT HYDRAULIC SYSTEM Fluid level in the hydraulic system should be checked after the first 5 hours of operation, and every 100 hours thereafter, or when a leak has occurred. If the fluid is low, check all components for leaks. To check, remove reservoir cap M.

  • Page 29: Engine Oil

    MAINTENANCE PROCAT ENGINE OIL Do not perform engine maintenance without the engine off, spark plug wires disconnected and PTO disengaged. AFTER FIRST FIVE (5) HOURS While the engine is warm: 1. Release the oil drain hose assembly from the engine clip J. Lay hose assembly over the frame edge or through the frame cutout, which ever is most convenient.
  • Page 30 MAINTENANCE PROCAT ENGINE COOLING Continued operation with a clogged cooling system will cause severe overheating and can result in en- gine damage. Daily: Clean air intake screen S on air cooled engines and T on liquid cooled engines. Every 100 hours: Clean cooling fins beneath blower housing H with reference to information in the engine manufacturer's manual.
  • Page 31 MAINTENANCE PROCAT CLEANING MACHINE Clean the machine after use. The machine will run cooler and last longer if kept free of clippings and other debris. A clean machine also reduces the risk of fire due to accumulation of combustible debris and chaff Brush or blow clippings and debris off the cutterdeck and engine deck.
  • Page 32 – Maintain cut angle at 30 – Do not overheat blades when sharpening. – Always use Schiller Grounds Care, Inc. blades. Use of another manufacturer’s blades may be dangerous. SPECIFIC TORQUES BLADE BOLT TORQUE: 70 FT-LBS (95 Nm) WHEEL HUB NUTS: 175 FT-LBS (237 Nm)

  • Page 33: Adjustments

    ADJUSTMENTS PROCAT DECK LEVELING 1. Park the machine on a smooth, level surface. Raise the deck to the transport position. 2. Lower the deck onto a set of equal height blocks A under the rear corners of the deck. Place an- other set of blocks B under the front of the deck so that the deck top is pitched forward 1/8".
  • Page 34 ADJUSTMENTS PROCAT HEIGHT OF CUT The height of cut is set by moving height of cut pin N to the hole designated for the height of cut desired. To change the height of cut: 1. Lift the deck to the highest position. 2.
  • Page 35 ADJUSTMENTS PROCAT CONTROL LEVERS There are two mounting positions for the control levers, upper and lower. The lower position works well for most people. Taller operators may need the upper position. To adjust the height of the control levers: – Remove bolts A and nuts B.
  • Page 36 ADJUSTMENTS PROCAT HYDROSTAT ADJUSTMENTS A turnbuckle-style hydrostat neutral adjustment is provided. Neutral: 1. Support the machine with the rear wheels off the ground. Use jackstands or equivalent sup- port. Do not rely only on mechanical or hydraulic jacks. 2. Move the traction levers out into the neutral lock position and raise the seat.

  • Page 37: Adjustments

    5. Remove old belt from the machine. 6. Install a new belt by performing the these steps in reverse order. Note: Always use Schiller Grounds Care, Inc. re- placement belts, not general purpose belts. Schiller Grounds Care, Inc. belts are specially designed for use on commercial mowers and will normally last longer.

  • Page 38: Belt Replacement

    BELT REPLACEMENT PROCAT CUTTERDECK BELT 1. Set the cutterdeck in the lowest height-of-cut position. 2. Remove the engine-cutterdeck belt from the deck idlers and pulley (see engine-cutterdeck belt replacement). Push it aside but don't remove it from the machine. 3. Run the cutterdeck belt off the idler as shown. Remove it from the deck.
  • Page 40 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com BOB-CAT BUNTON RYAN STEINER...
