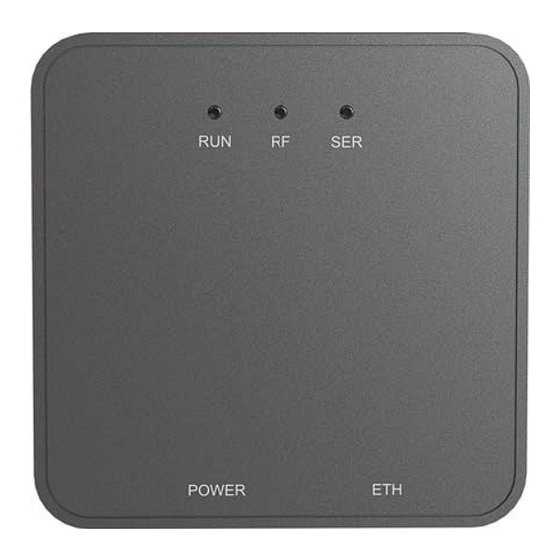

- Page 1 S2-RF-GATEWAY QUICK USER GUIDE Version: 1.0 DeliveryContent 1 PC RF Gateway 1 PC RF Internet cable 1 PC RF Power cable 1 PC RF Gateway Quick User Guide...
- Page 2 RF Gateway Installation Install Cable and Connect to Router.(Please make sure router has normal networking ability and DHCP is enabled.) Connect to Power Supply. NOTE Installation Requirements: Max. distance between RF gateway and RF sub-device without shelter is 200m. Through-wall Ability: 2 reinforced concrete walls (15cm) at max., total distance is less than 20m.
- Page 3 Usage Methods and Notices for Reset Button Usage methods and key-press descriptions for reset button. Status Key-press Light Status Description Rebooting the SER lightwill flash after 5s, Long press 5s stick logger then release. SER light will flash after 5s, RF light will flash 5s later, then release.(Non-professional Resetting the...
- Page 4 Create the SolisCloud Account Step 1: You can download the SolisCloud mobile app by scanning the QR code or searching "SolisCloud” from APP Store or Google Play Store. Step 2: Tap “ Register ”. Step 3: Select Owner or Organization for registration.
- Page 5 Step 4: Enter your email address and input the verification code you received in your email, then set up user name and password to complete the registration.
- Page 7 Step 5: Registration completed. Create Plant Step 1: Enter the home page of SolisCloud APP, click “ Add Plant ” in the middle of the page.
- Page 8 Step 2: Enter the plant details and then tap “ Next ”.
- Page 9 Step 3: Once the required information has been entered, tap “ Create Plant ”.
- Page 10 Step 4: Plant creation completed. It will automatically enter the APP homepage.
- Page 11 Bind the dataloggers Step 1: Click on the plant to enter the plant home page. You will be prompted to add a datalogger, tap “ ” to add the logger.
- Page 12 Step 2: Scan the QR code on the logger or manually enter the SN of the logger. Then click ” ”. NOTE Please make sure to input the logger serial number, not the inverter serial number. √ ×...
-
Page 13: Network Configuration
Step 3: Bound successfully. If the plant has multiple dataloggers, please click “Continue to bind” to bind other dataloggers. Network Configuration 7.1 LAN Configuration If you want to use a wired network, you need to follow the first installation step to install the network cable. Connect the datalogger to the router through the network cable, then LAN Configuration is completed. - Page 14 7.2 WiFi Configuration by Bluetooth Step 1: Click “Service“ page to enter "WiFi Configuration” in the toolbar. Step 2: Scan the QR code on the logger or manually enter the SN of the logger. Then click “ Next ”...
- Page 15 Step 3: Choose the configuration method, click " Configuration by Bluetooth ". Step 4: Select the Device called “D_serial number of the inverter”.
- Page 16 Step 5: Click”>”to jump to the WLAN settings on your phone. Search for Local Area Network and then select the network you want to connect. Then switch back to the page to fill in the WiFi password, and move to next step. Step 6: Configuration Completed.
- Page 17 7.3 WiFi Configuration by Browser Step 1: Click “Service“ page to enter "WiFi Configuration” in the toolbar. Step 2: Scan the QR code on the logger or manually enter the SN of the logger. Then click “ Next ”...
- Page 18 Step 3: Choose the configuration method, click " Browser Configuration ".
- Page 19 Step 4: Make sure that the green light flashes at intervals, then click " I'm sure it is flashing ".
- Page 20 Step 5: Click " Go to connect "(For Android system) or anywhere on the page(For IOS system) to jump to the WLAN settings on your phone.
- Page 21 Step 6: Search for Local Area Network and select the network called “ D_serial number of the datalogger ”. Enter the default password “ 123456789 ”, then return to APP. Step 7: Click”>”, make sure the phone is connected to router WiFi and switch back to the page to fill in the WiFi password, then move to next step.
- Page 22 Step 8: Configuration Completed.
- Page 23 Contact Please contact us if you have any technical problems in terms of the product. Please provide the following information as well: Inverter SN Datalogger SN Problem Description Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Email：info@ginlong.com...
