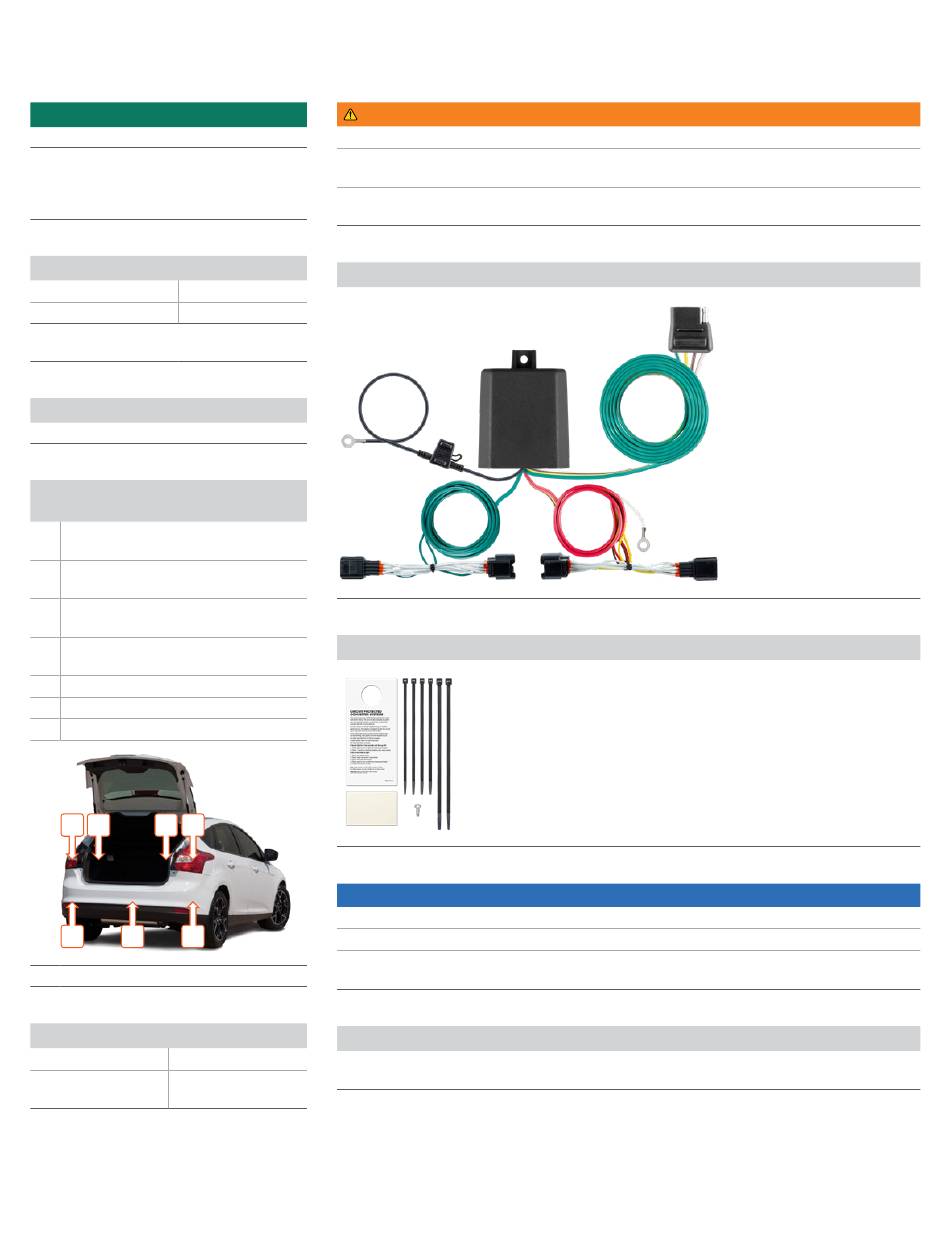

INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Electrical Ratings
Signal circuits
3.0-amps per side
Tail / Running Circuits
6.0-amps total
Check vehicle owner's manual or contact
the vehicle manufacturer for more information.
Wiring Location(s)
P1 and P2
Wiring Location Guide*
for Passenger Cars (P)
P1 Behind driver side taillight
housing, outside of trunk
P2 Behind passenger side taillight
housing, outside of trunk
P3 Behind driver side taillight
housing, inside of trunk
P4 Behind passenger side taillight
housing, inside of trunk
P5 Behind driver side rear bumper
P6 Behind center of rear bumper
P7 Behind passenger side rear bumper
P1 P3
P4 P2
P5
P6
P7
* Representative vehicle shown
Tools Required
Ratchet
Cutting tool
Socket, 8mm
Panel trim
removal tool
56528-INS-RA
04/01/2024
WARNING
Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
Be sure not to lay tools a crossed the positive (typically noted with red covers or a
red '+' symbol). This can cause a ground to short causing sparks and / or electrical shocks.
The battery connection must be fuse-protected, 10-amp max. Exceeding
the product rating can cause loss of warranty, overheating and potential fire.

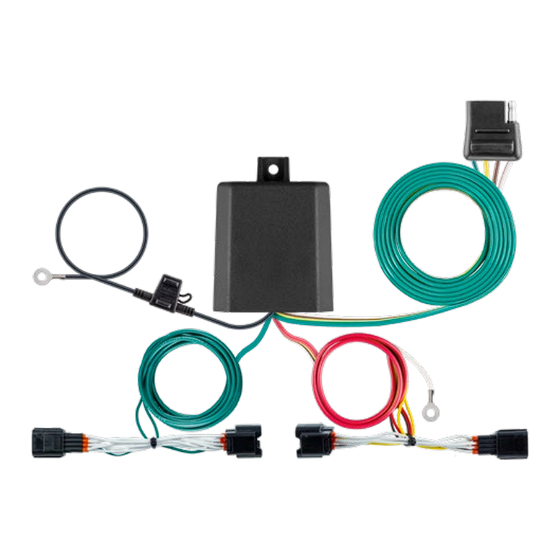

Product Photo
Hardware Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
All steps must be followed to ensure the product will function properly. Once installed,
test for proper function by using a test light or connecting a properly wired trailer.
Maintenance
Periodic inspection of all wires and connections should be performed
to ensure there is no visible damage or loose connections.
ECN11630
PAGE 1 OF 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the 56528 and is the answer not in the manual?

Questions and answers

Summary of Contents for curt 56528

  • Page 1 Maintenance Ratchet Cutting tool Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Socket, 8mm Panel trim removal tool 56528-INS-RA • 04/01/2024 • ECN11630 • PAGE 1 OF 5...
  • Page 2 Step 2 Use a panel trim removal tool to remove the threshold by pulling straight up. Remove the push fasteners securing the felt trunk liner in place under each side of the threshold. 56528-INS-RA • 04/01/2024 • ECN11630 •...
  • Page 3 Make sure the connectors are fully inserted with locking tabs in place. Reseat the grommet. Use the provided sealant to seal the cut in the grommet and around all the wires. 56528-INS-RA • 04/01/2024 • ECN11630 •...
  • Page 4 When not in use roll up and store in a convenient, out of the way location. Secure any loose wires with provided cable ties. Reinstall all items removed during install. If it was disconnected at the beginning of the installation, reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion. 56528-INS-RA • 04/01/2024 •...
  • Page 5 (haga una perforación Brun - Feu arrièr Marrón - Luces traseras rojo del freno debe estar conectado a tierra de 3/32" si es necesario) 56528-INS-RA • 04/01/2024 • ECN11630 • PAGE 5 OF 5...
